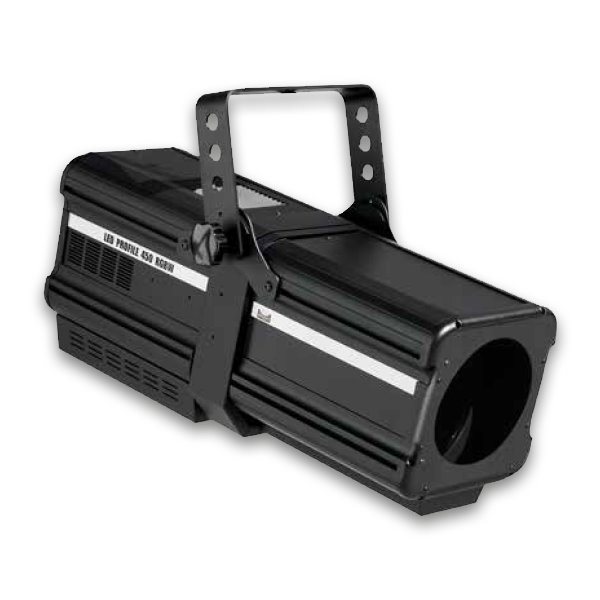

LED PROFILE 450 RGBW, is a projector with zoom profile with all the fully motorized functions controlled by DMX Standard signal with RDM functions.

Optica’s excellent performance and profile radius control are the result of the well proven high-quality double-condensation optical zoom system from Arena Luci. Suitable for theater, television studios and architectural applications.

The profile system is completely motorized, with 4 independent steel shutter blades. Iris function, focus, zoom, dimmer and color mixing, are completely controlled by DMX or even by integrated digital display.



HAUPTMERKMALE:

- 230 V ac 50Hz, 450W
- 450W interchangeable LED Module
- RGBW color mixing
- DMX 512 control + RDM function
- 14 DMX Channels
- Adjustable zoom from 8° to 12°
- Motorized zoom
- Motorized Focus
- 4 Motorized Shutter Blades
- Motorized Iris
- Linear dimmer 0-100%
- DMX dimmer
- Digital display
- Control connections, Neutrik XLR 5P In&Out
- Power connections, Neutrik Powercon In&Out
- Heatsink with low noise fan, max 10 dB
- Profile system with 4 internal motorized steel shutter blades
- Gobo holder optional (AC819)
- Aluminium and steel plate body. Scratch resistant black epoxy powder paint
- IP20
- Insulation calss I
- Suitable to be fitted on normally inflammable surfaces
