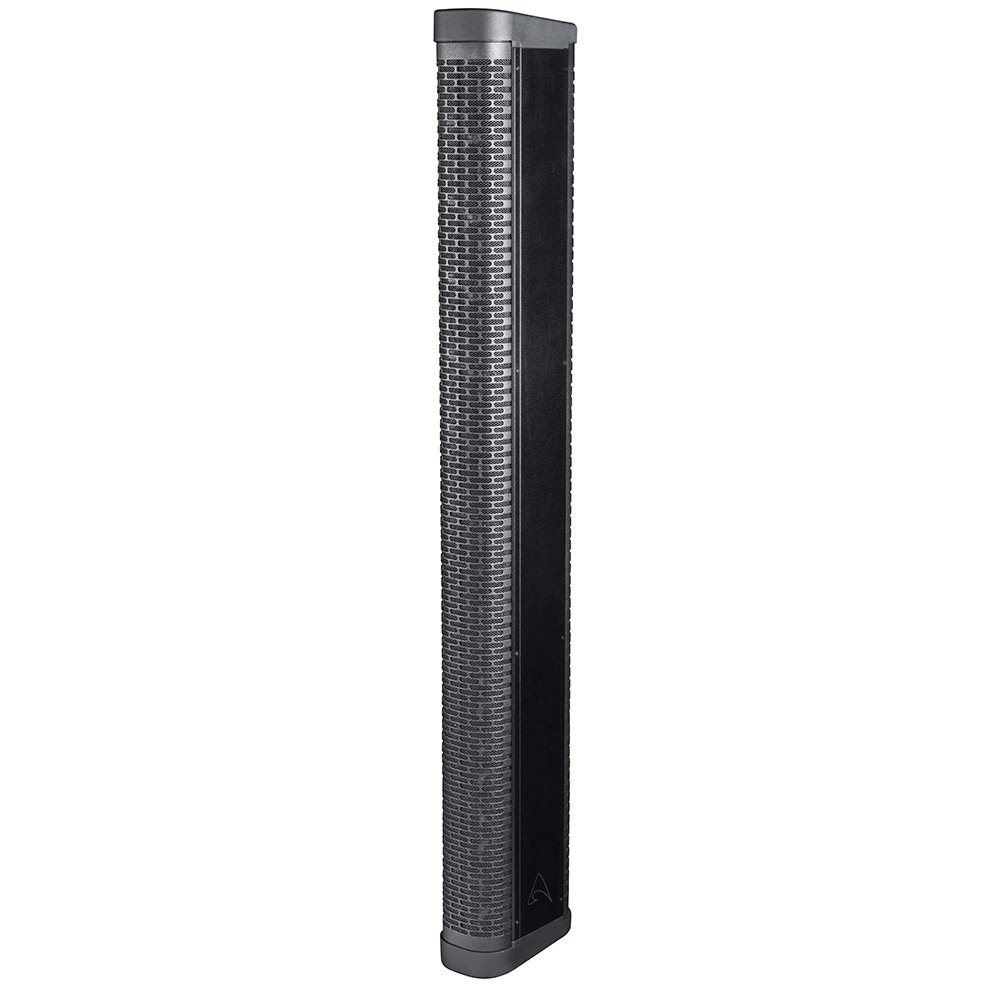

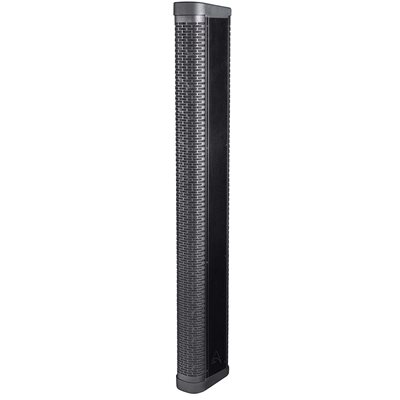

12 x 3.5” (88mm), High Power, Passive, Portable Line Array Element

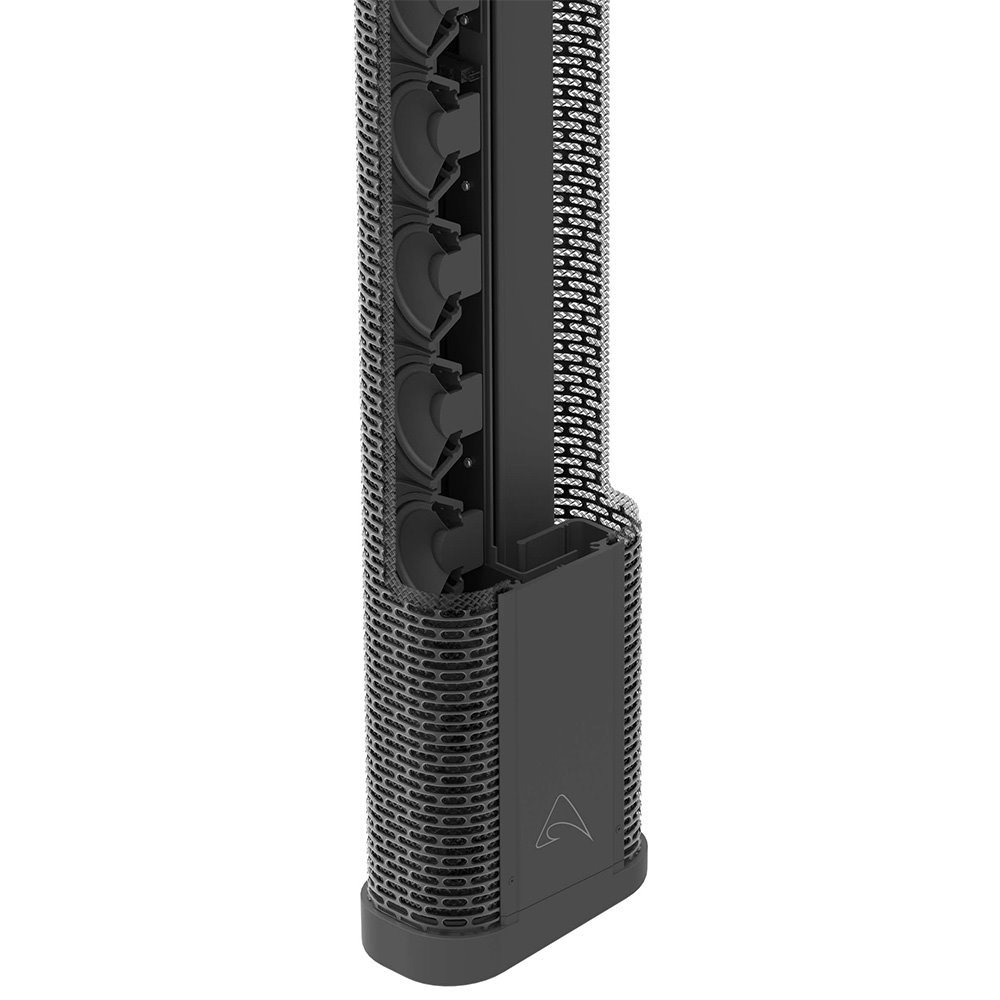

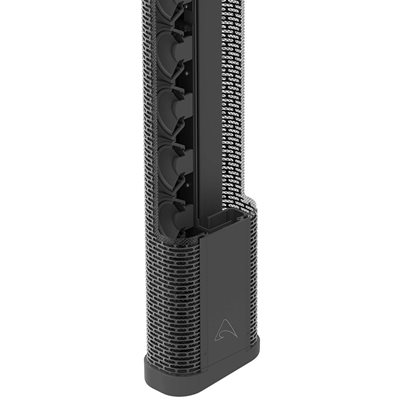

The AX12C Line Array is a passive system equipped with twelve 3.5” neodymium transducers with waterproof cones, designed for portable and permanently installed applications where high power and clarity are needed. The aluminum frame box structure ensures lightweight and strength, while the shape features a back-loaded transmission line design with clean mid-bass reproduction and natural cardioid behaviour. A Front Diffraction Waveguide (FDW) delivers wide horizontal dispersion, making the system flexible and adaptable to many different applications.

The AX12C line array module has been designed to be combined with the SW2100A, a compact and lightweight 21” Band-Pass/Bass-Reflex subwoofer, equipped with a 4000W Class D amplifier with Power Factor Correction and PROEL’s proprietary 96kHz / 40bit floating point CORE DSP. Up to four AX12C modules can be driven by one amplifier channel of the SW2100A subwoofer. The built-in CORE DSP, which can be also remotely controlled using PRONET AX software, provides 4 presets for different combinations: 2, 4 or 1 columns plus 1 user preset.
The standard system, composed of four AX12C line array modules and two SW2100A subwoofers, features 8000W of total power and a line-array dispersion pattern, making it the perfect solution for high-performance portable sound reinforcement applications.



SPECIFICATIONS:


SYSTEM
System’s Acoustic Principle: Line Array Element, Short Transmission Line Back Loading Acoustic Diffractor
Frequency Response (-6dB): 180 Hz - 16 KHz (Processed)
Nominal Impedance: 16 Ohm
Horizontal Coverage Angle: 100°
Sensitivity (4V): 105 dB SPL @ 1m
Maximum (peak) SPL: 130 dB SPL @ 1m

TRANSDUCERS

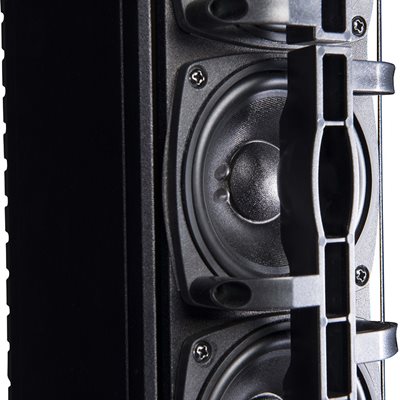

Type: 12 x 3.5" (88mm) Neodymium magnet woofers, 1" (25mm) VC
Cone: Waterproof Cone
Voice Coil Type: Ventilated voice coil

INPUT CONNECTIONS
Connector Type: Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru)

POWER HANDLING
Continuous AES Pink Noise Power: 360 W
Program Power: 720 W

ENCLOSURE & CONSTRUCTION
Width: 107 mm (4.2")
Height: 1166 mm (45.9") - without flying system / 1212 mm (47.7") - with flying system
Depth: 193 mm (7.6")
Enclosure Material: Aluminum
Finishing: Black anodization, black epoxy paint

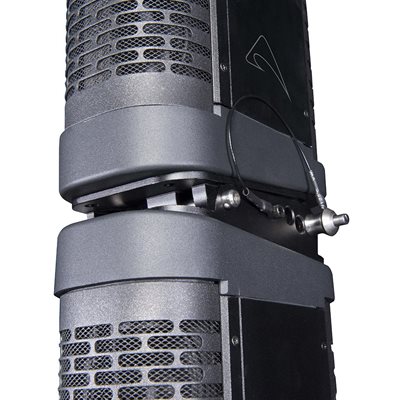

Flying system: Aluminum Fast Link structure with dedicated pins
Net Weight: 13 kg (28.6 lbs.)
