Ci4V • INSTALL LOUDSPEAKER WITH 90° SHAPE HOUSING, IP64 & EN54 RATING

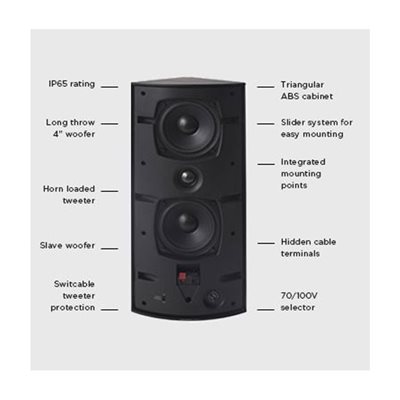

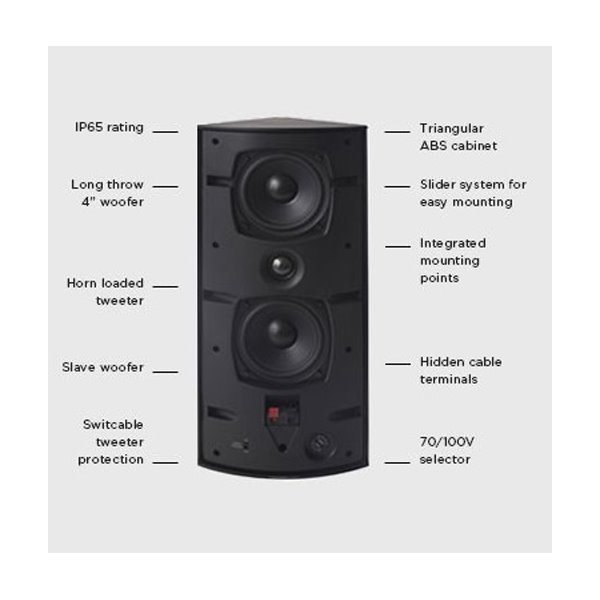

Ci4 is a feature packed compact 2-way full-range speaker with medium output. It features an advanced passive woofer design enables the compact cabinet to delvier full-range bass. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few speakers, which makes the Ci4-V especially suited for in-door and outdoor commercial installations. The patented triangular cabinet features integrated mounting points allowing the cabinet to mount flush in corners or onto walls and ceilings without brackets. The new sliders makes for an even easier installation.
Cabinets can be coupled together to increase coverage to 180, 270 or 360 degree. The cable connection is invisible both in vertical and horizontal applications the tweeter features a switchable protection circuit for added safety. In high-impedance mode, the Ci4-V has tap settings for 3,5 - 7,5, 15 or 30 watt output conveniently located on the front baffle.
Ci4 is the perfect elegant speaker solution for back ground sound in commercial installations such as cafes, hotels and shops





TECHNICAL DATAS:


Power handling, IEC268: 60 watt
Power handling, peak: 240 watt
Sensitivity, 2,83V/1m: 86 dB
Maximum SPL, long term: 104 dB
Maximum SPL, peak: 110 dB
Frequency response: 60-20.000 Hz
Nominal impedance: 8 ohm
Power Selector 100V: 30 / 15 / 7.5 / 3.5 watt
Dispersion: 100x100 degrees
Measurements (HxWxD): 400x190x145mm
Weight: 2,4 kg
