ACTION M512

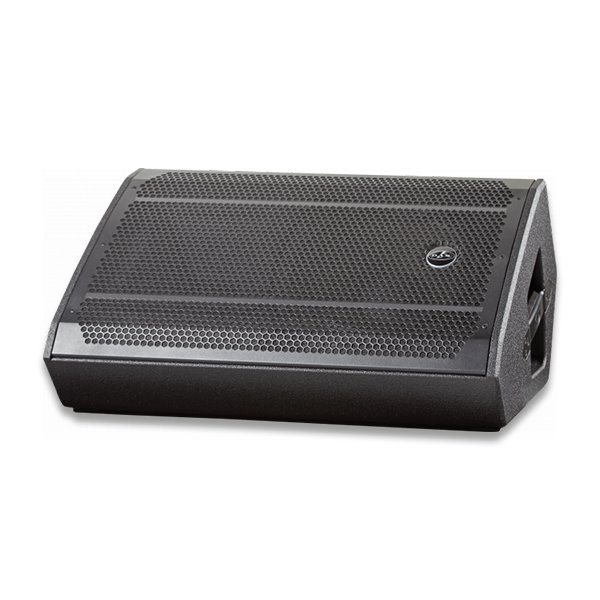

ACTION-M512 is a passive stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 80º x 50º dispersion means the enclosure can also be used as a PA system.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, nautral warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.


FEATURES

Passive two-way stage monitor
Birch plywood enclosure
Durable ISO-Flex paint
Recommended processor: DSP-226


APPLICATIONS

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations


TECHNICAL DATA
Frequency Range (-10 dB) 63 Hz - 20 kHz
Horizontal Coverage (-6 dB) 80º
Vertical Coverage 50º
Nominal Impedance 8 ohms
RMS Power Handling 300 W
Peak Power Handling 1200 W
On-axis Sensitivity 1W/1 m 95 dB SPL
Maximum Peak SPL at 1 m 130 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226

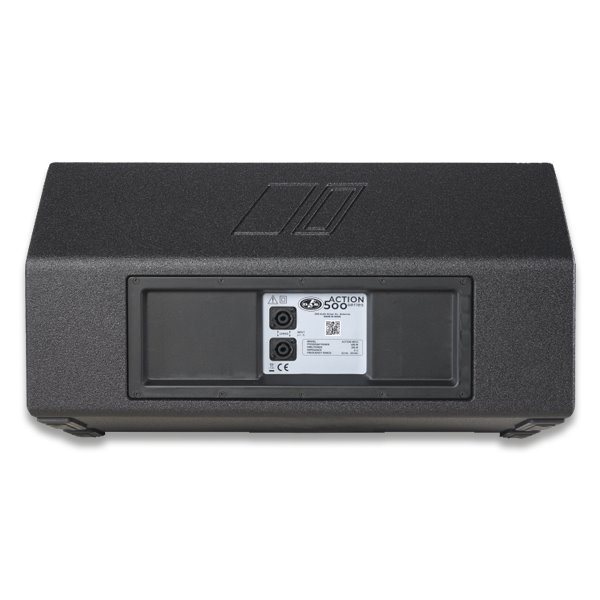

Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 335 x 650 x 450 mm
13,2 x 25,6 x 17,7 in
Net Weight 17,5 kg ( 38,5 lb )
Components
LF Driver 12MI
HF Driver M-34
Horn/Waveguide BC-85
Shipping
Carton Dimensions ( H x W x D ) 383 x 747 x 503 mm
15,1 x 29,4 x 19,8 in
Shipping Weight 18,6 kg ( 40,9 lb )
