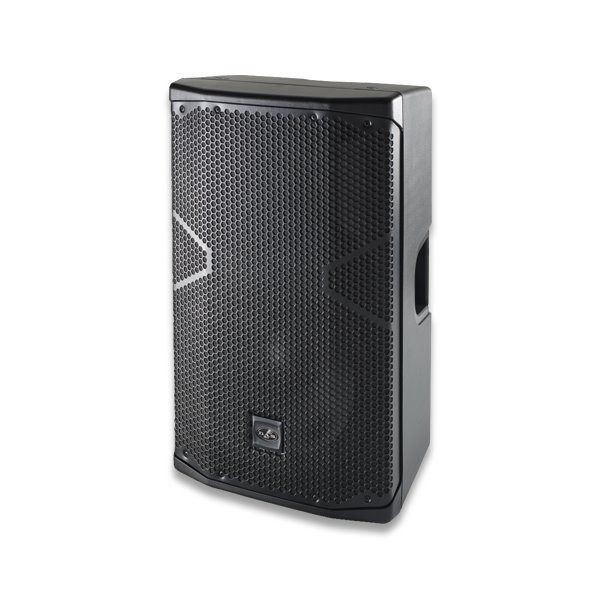

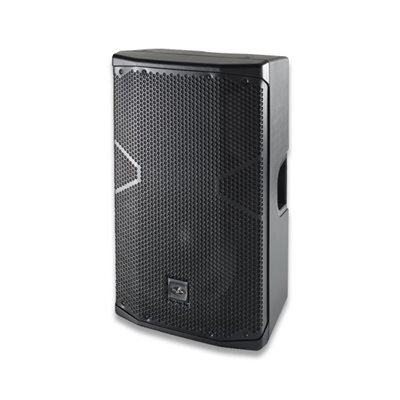

The Altea-412A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

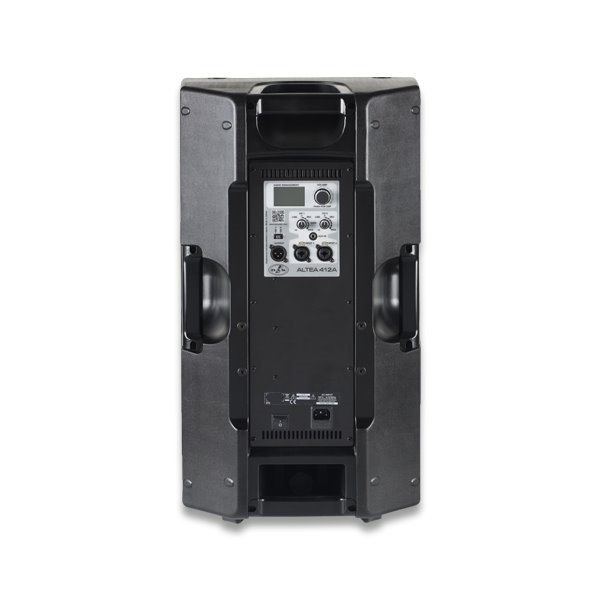

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power. of the provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the Altea-412A system. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 12MI4 loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1" exit offering excellent performance.”


FEATURES

Multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
Standby Mode
Rigging points


APPLICATIONS

Live sound reinforcement
Speech and vocals
Music playback in entertainment
A/V, and institutional venues


TECHNICAL DATA
Frequency Range (-10 dB) 60 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 126 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 400 W
Nominal Amplifier Power (peak) 800 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
Control DAScontrol™
AC Input Connector IEC
Operating Range 180-250 VAC
Current Draw 230 V 1.0 A
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish Textured
Color Black
Dimensions ( H x W x D ) 655 x 380 x 350 mm
25,8 x 15,0 x 13,8 in
Net Weight 15,5 kg ( 34,2 lb )
Components
LF Driver 12MI4
HF Driver M-32
Shipping
Carton Dimensions ( H x W x D ) 740 x 450 x 415 mm
29,1 x 17,7 x 16,3 in
Shipping Weight 18,5 kg ( 40,8 lb )
