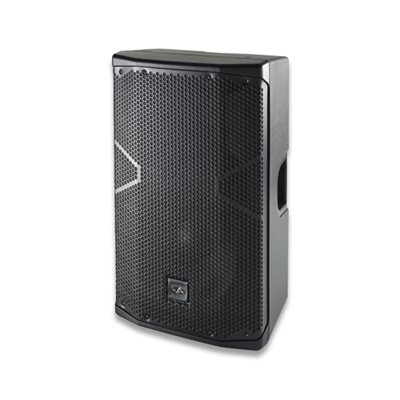

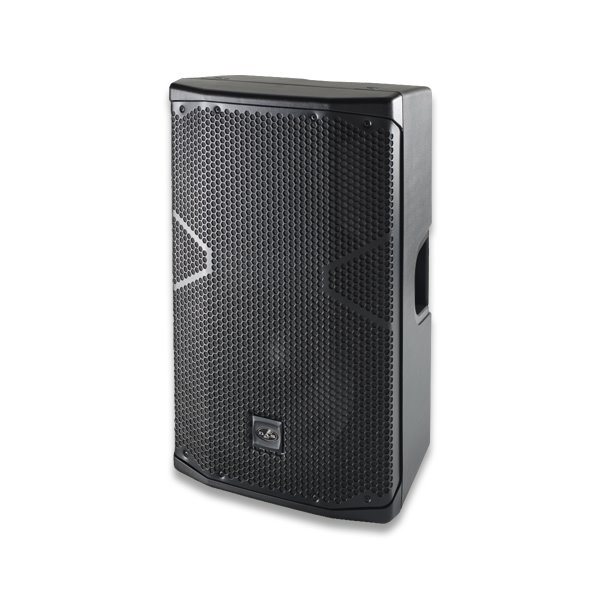

The ALTEA-412 passive system has been designed for use with external amplification and an outboard DSP. This allows users to choose the powering option they prefer and benefit from the same enclosure features and top-of-the-line components as the ALTEA 400 powered versions.
The ALTEA-412 uses the renowned 12Mi loudspeaker. This professional-grade loudspeaker provide precise low frequency reproduction with excellent musicality. The high frequencies are handled by the M-32 compression driver with 1" exit to provide exceptional overall performance. A winning combination of matched components that offer ideal characteristics for music reproduction.


FEATURES

2-way, full range system
12" bass loudspeaker
1" compression driver
Angled enclosure design for stage monitor use
Built-in rigging points
Stand mountable


APPLICATIONS

Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship


TECHNICAL DATA
Frequency Range (-10 dB) 68 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 8 ohms
RMS Power Handling 300 W
Peak Power Handling 1200 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 127 dB
Recommended Amplifier PA-900
Recommended Processor DSP-226

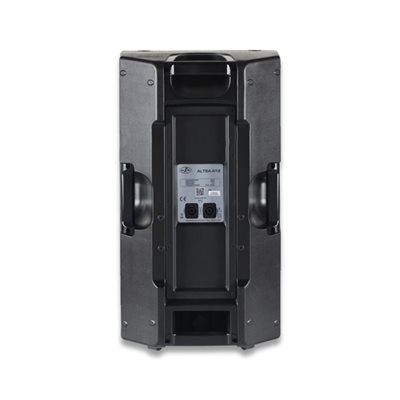

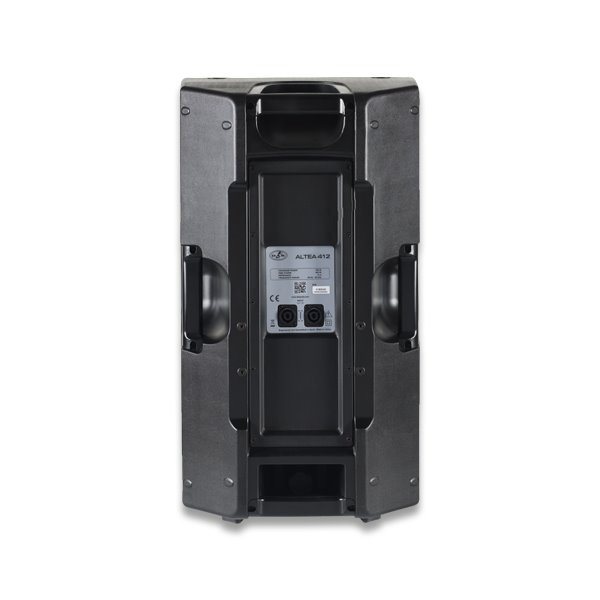

Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging M8 Rigging Points
Finish Textured
Color Black
Dimensions ( H x W x D ) 655 x 380 x 350 mm
25,8 x 15,0 x 13,8 in
Net Weight 14,5 kg ( 32,0 lb )
Components
LF Driver 12MI
HF Driver M-32
Shipping
Carton Dimensions ( H x W x D ) 750 x 450 x 415 mm
29,5 x 17,7 x 16,3 in
Shipping Weight 17,5 kg ( 38,6 lb )
