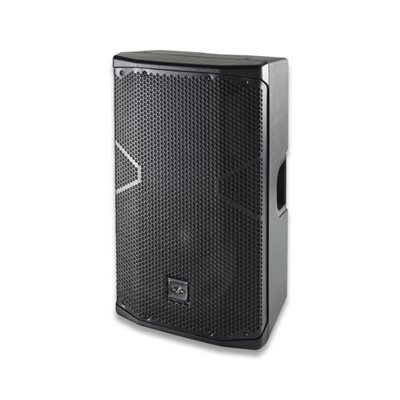

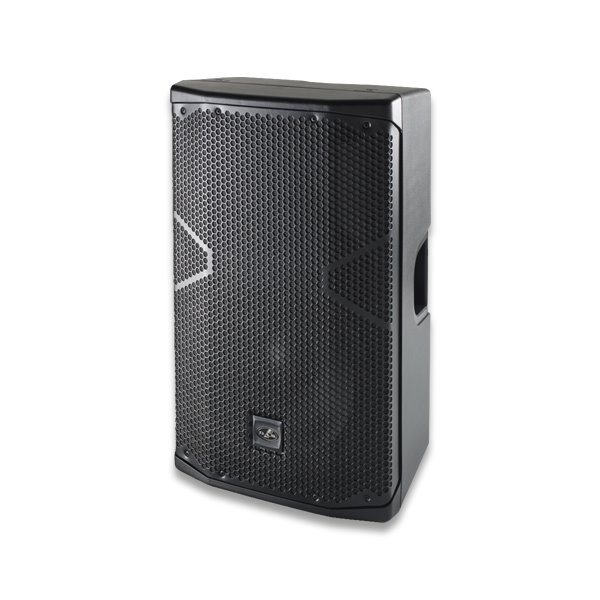

The ALTEA-712 passive system allows users to choose the powering option they prefer and is designed for use with external amplification and outboard DSP. This system benefits from the high-performance transducers include the DAS 12F loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass.
High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1" exit providing exceptional performance and smooth reproduction.


FEATURES

Hi-power passive 2-way system
100W@100V
12" loudspeaker + M-28 compression driver
Wide 90º coverage that fills the room
Lightweight polypropylene enclosure
Ergonomic handles and floor monitor position
Integrated M8 rigging points


APPLICATIONS

Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship


TECHNICAL DATA
Frequency Range (-10 dB) 65 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 100V
RMS Power Handling 100W@100V
Peak Power Handling 2000 W
On-axis Sensitivity 1W/1 m 98 dB SPL
Maximum Peak SPL at 1 m 131 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226

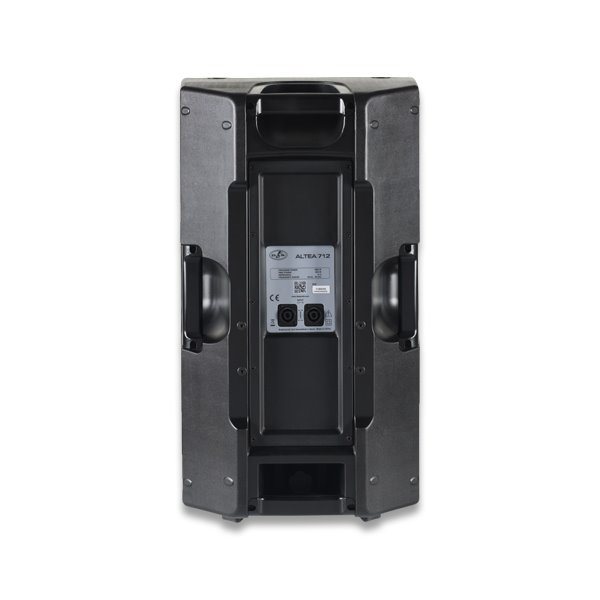

Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging M8 Rigging Points
Finish Textured
Color Black
Dimensions ( H x W x D ) 655 x 380 x 350 mm
25,8 x 15,0 x 13,8 in
Net Weight 16,5 kg ( 36,4 lb )
Components
LF Driver 12F
HF Driver M-28
Shipping
Carton Dimensions ( H x W x D ) 750 x 450 x 415 mm
29,5 x 17,7 x 16,3 in
Shipping Weight 19,5 kg ( 43,0 lb )
