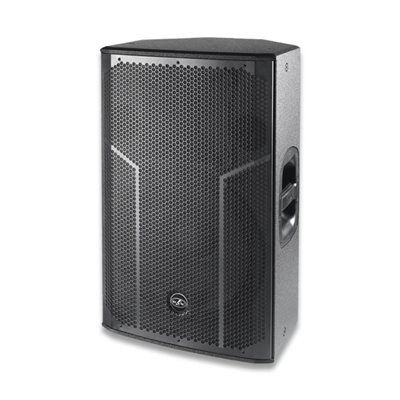

ACTION 515

ACTION-515 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.


FEATURES

Passive two-way system
Birch plywood enclosure
Durable ISO-Flex paint
Recommended processor: DSP-226


APPLICATIONS

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations


TECHNICAL DATA
Frequency Range (-10 dB) 47 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 8 ohms
RMS Power Handling 350 W
Peak Power Handling 1400 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 131 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226

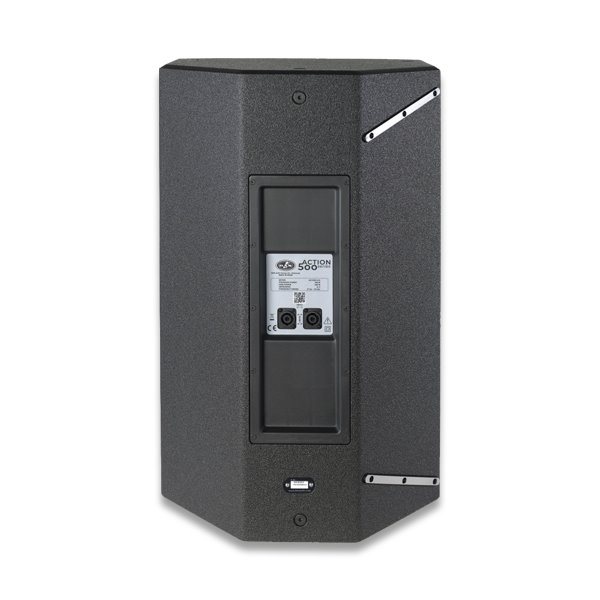

Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 720 x 380 x 385 mm
28,3 x 15,0 x 15,2 in
Net Weight 22,8 kg ( 50,2 lb )
Components
LF Driver 15MI
HF Driver M-34
Horn/Waveguide BC-916
Shipping
Carton Dimensions ( H x W x D ) 785 x 430 x 505 mm
30,9 x 16,9 x 19,9 in
Shipping Weight 24,0 kg ( 52,8 lb )
