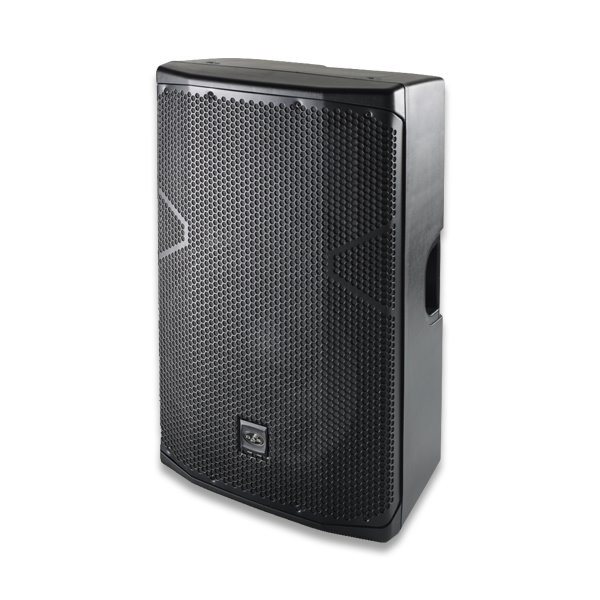

The ALTEA-415A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

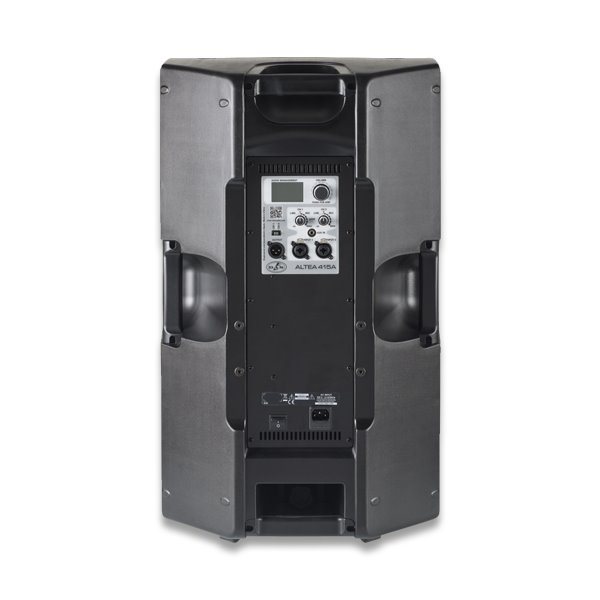

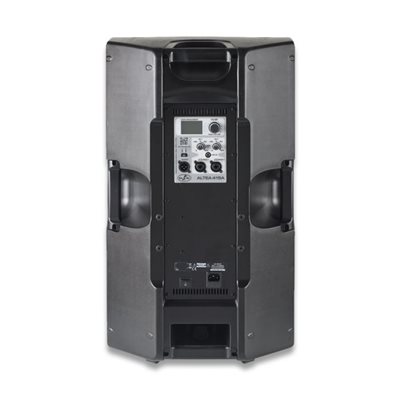

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power. of the provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-415A system. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.

The 15MI4 loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1" exit offering excellent performance.


FEATURES

Multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
Standby Mode
Rigging points


APPLICATIONS

Live sound reinforcement
Speech and vocals
Music playback in entertainment
A/V, and institutional venues


TECHNICAL DATA
Frequency Range (-10 dB) 50 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 128 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 400 W
Nominal Amplifier Power (peak) 800 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
Control DAScontrol™
AC Input Connector IEC
Operating Range 180-250 VAC
Current Draw 230 V 1.0 A
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging M8 Rigging Points
Finish Textured
Color Black
Dimensions ( H x W x D ) 710 x 440 x 380 mm
28,0 x 17,3 x 15,0 in
Net Weight 17,5 kg ( 38,6 lb )
Components
LF Driver 15MI4
HF Driver M-32
Shipping
Carton Dimensions ( H x W x D ) 805 x 530 x 445 mm
31,7 x 20,9 x 17,5 in
Shipping Weight 21,0 kg ( 46,3 lb )
