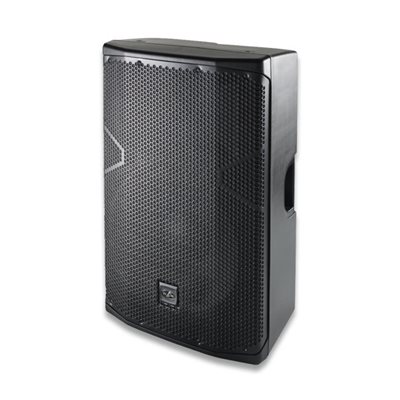

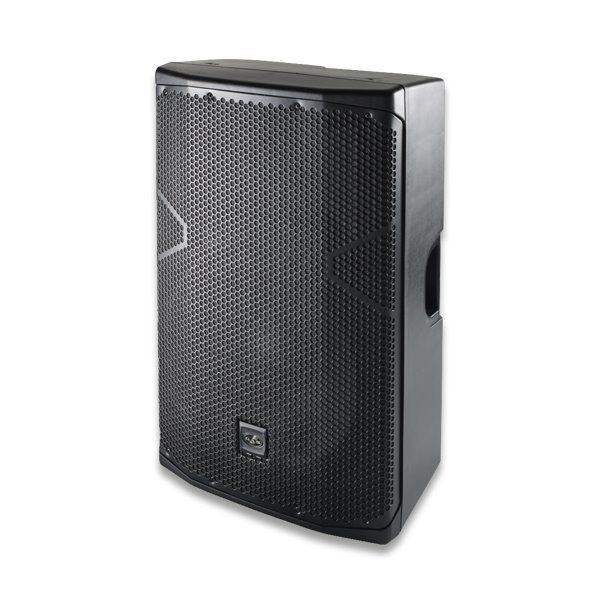

The ALTEA-715A is a high-powered model from DAS Audio’s ALTEA Series. It´s equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-715A systems.

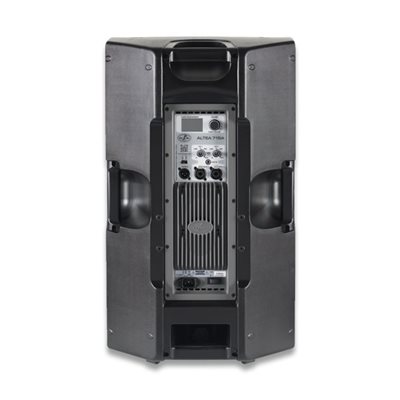

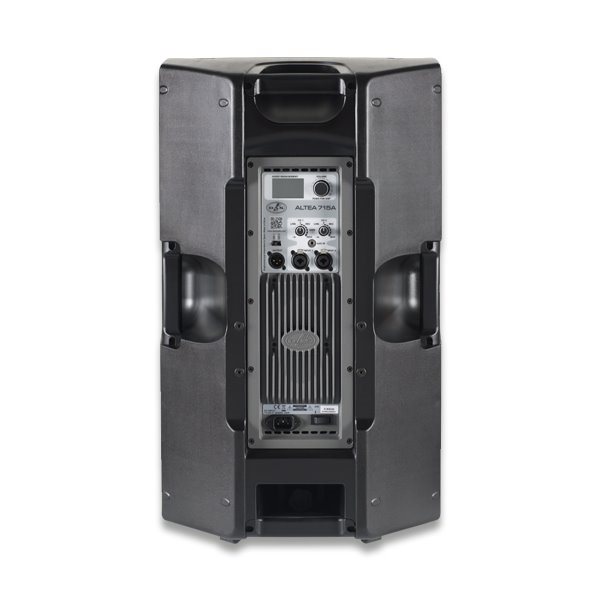

The DAScontrol™ interface allows users to configure voicing presets, input/output levels, EQ modes, delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet. The remote control and monitoring APP DASlink™ of the ALTEA-700 series powered systems allows users to wirelessly stream music from mobile devices in high-definition stereo.

The high-performance transducers include the DAS 15FV4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1" exit providing exceptional performance and smooth reproduction.

The ALTEA-715 passive systems allow users to choose the powering option they prefer. Designed for use with external amplification and outboard DSP, they benefit from the enclosure features and high-power transducer components of the ALTEA 700 powered versions.


FEATURES

Multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
Stereo music streaming in high definition
User definable 24-bit DSP with LCD screen
5 voicing presets
User-defineable memories
Stackable 3-band EQ
Standby Mode
Rigging points


APPLICATIONS

Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship


TECHNICAL DATA
Frequency Range (-10 dB) 45 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 132 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 750 W
Nominal Amplifier Power (peak) 1500 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
Control DASlink™
DAScontrol™
AC Input Connector IEC
Operating Range 90-250 VAC
Current Draw 115 V 3.0 A
Current Draw 230 V 1.5 A
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging M8 Rigging Points
Finish Textured
Color Black
Dimensions ( H x W x D ) 710 x 440 x 380 mm
28,0 x 17,3 x 15,0 in
Net Weight 19,5 kg ( 43,0 lb )
Components
LF Driver 15FV4
HF Driver M-28
Shipping
Carton Dimensions ( H x W x D ) 805 x 530 x 445 mm
31,7 x 20,9 x 17,5 in
Shipping Weight 23,0 kg ( 50,7 lb )
