The WR (weather resistant) series expands with a compact subwoofer designed to provide extended range for the WR series full-range cabinets. The WR-151SDX/W incorporates a single 800 Wrms 15" loudspeaker.
The WR-151SDX/W offers identical cabinet dimensions as the WR-6415DX/W for easy combination in tight packed arrays. Threaded rigging points and optional mounting hardware are available.


TECHNISCHE DATEN:

System........................................15“ Subwoofer
Abstrahlwinkel..............................omni
Belastbarkeit (RMS/Prog/Peak)......800W / 1'600W / 3'200W
Übertragungsbereich......................45 Hz - 125 kHz
Nennimpedanz............................. Passive 4 Ohms / Biamp 8 Ohms
Max. Schalldruckpegel (SPL).........133 dB
Gehäuse.......................................Holz mit Fiberglas-Beschichtung, spezielles, wasserabweisendes Schutzgitter
Spezifikation.................................Schutzklasse IP56
Farbe............................................schwarz oder weiss

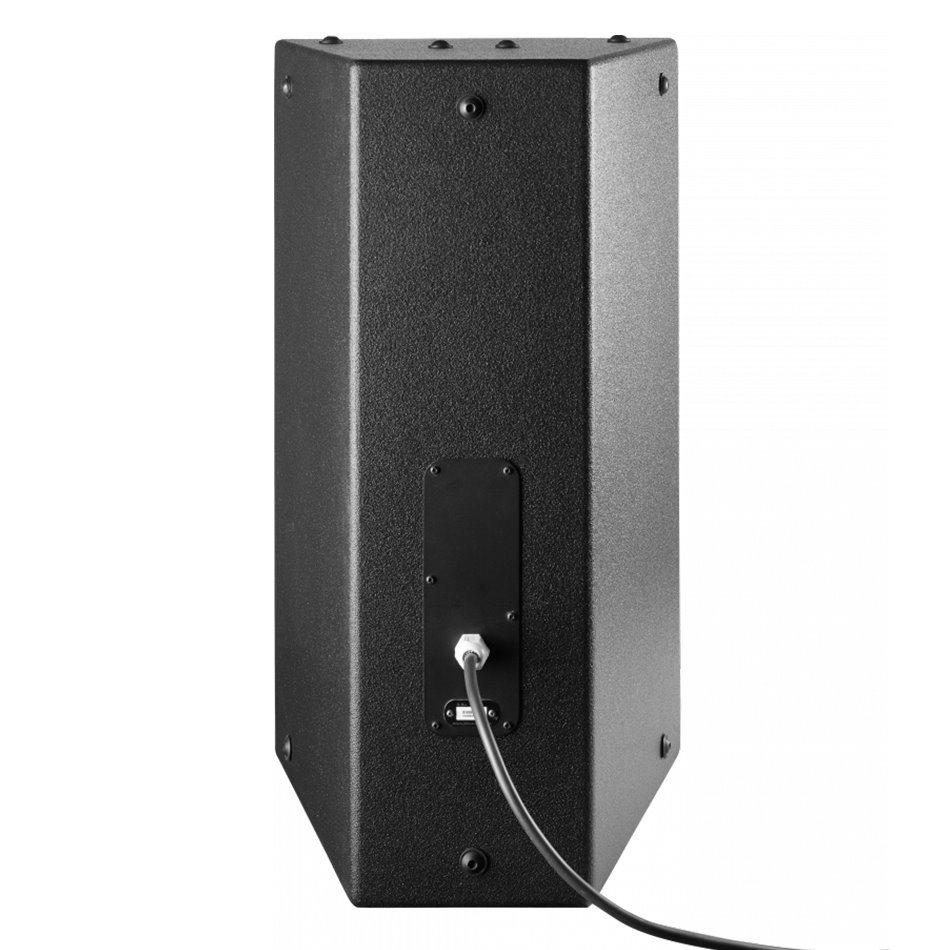

Anschlüsse...................................Anschlusskabel (ca. 2m), durch PG-Verschraubung gesichert
Abmessungen (H x W x D)............775 x 465 x 460 mm
Gewicht........................................33 kg
