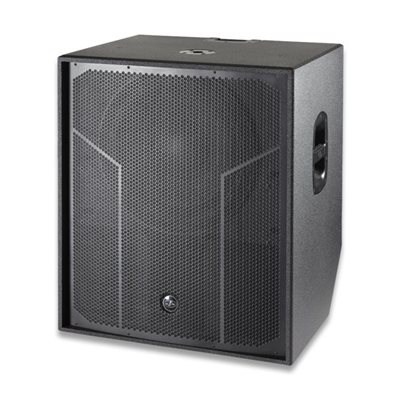

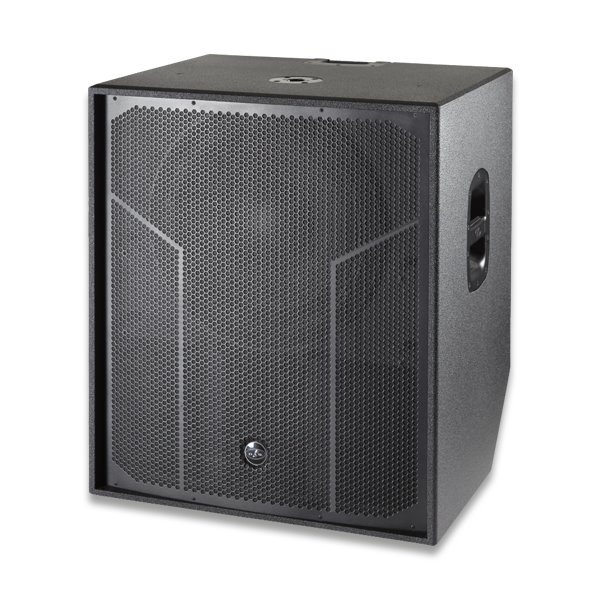

ACTION-S118A is a high-power active subwoofer system that incorporates a 3200 Wpeak amplifier and 18LX speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that that works to reduce the effects of voice coil heating.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.


FEATURES

Active horn-loaded subwoofer system
3200 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-Flex paint


APPLICATIONS

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations


TECHNICAL DATA
Frequency Range (-10 dB) 35 Hz -125 Hz (variable LPF)
Maximum Peak SPL at 1 m 137 dB

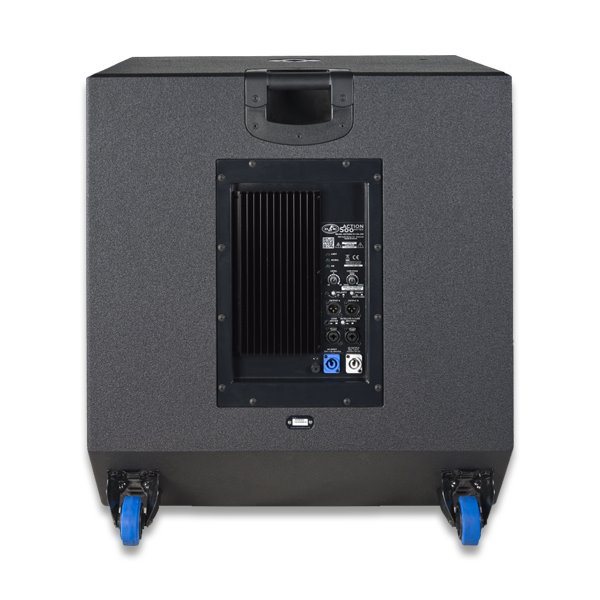

Electronics and Connectors
Nominal Amplifier Power (continuous) 1600 W
Nominal Amplifier Power (peak) 3200 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 2 x Male XLR
AC Input Connector powerCON NAC3MPA
AC Output Connector powerCON NAC3MPB
Operating Range 180-250 VAC
Current Draw 230 V 1.8 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 780 x 695 x 570 mm
30,7 x 27,4 x 22,4 in
Net Weight 57,0 kg ( 125,7 lb )
Components
LF Driver 18LX
Shipping
Carton Dimensions ( H x W x D ) 875 x 740 x 620 mm
34,5 x 29,1 x 24,4 in
Shipping Weight 61,5 kg ( 135,6 lb )
