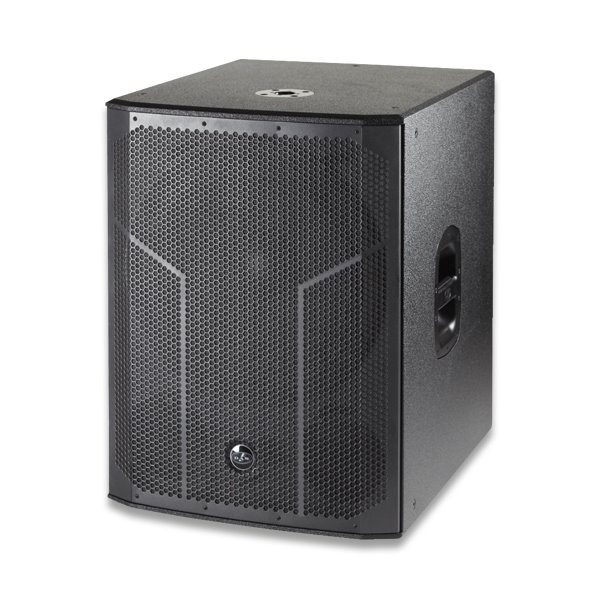

ACTION-S18A is a high-power active subwoofer system that incorporates a 1500 Wpeak amplifier and single 18FW4 speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that that works to reduce the effects of voice coil heating.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.


FEATURES

Active subwoofer system
1500 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-Flex paint


APPLICATIONS

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations


TECHNICAL DATA
Frequency Range (-10 dB) 35 Hz -125 Hz (variable LPF)
Maximum Peak SPL at 1 m 134 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 600 W
Nominal Amplifier Power (peak) 1200 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
Control DAScontrol™
AC Input Connector IEC
Operating Range 90-127/180-250 VAC
Current Draw 115 V 2.8 A
Current Draw 230 V 1.4 A
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 720 x 545 x 660 mm
28,4 x 21,5 x 26,0 in
Net Weight 42,5 kg ( 93,7 lb )
LF Driver 18FW4
Shipping
Carton Dimensions ( H x W x D ) 795 x 595 x 690 mm
31,3 x 23,4 x 27,2 in
Shipping Weight 45,5 kg ( 100,3 lb )
