ACTION S18

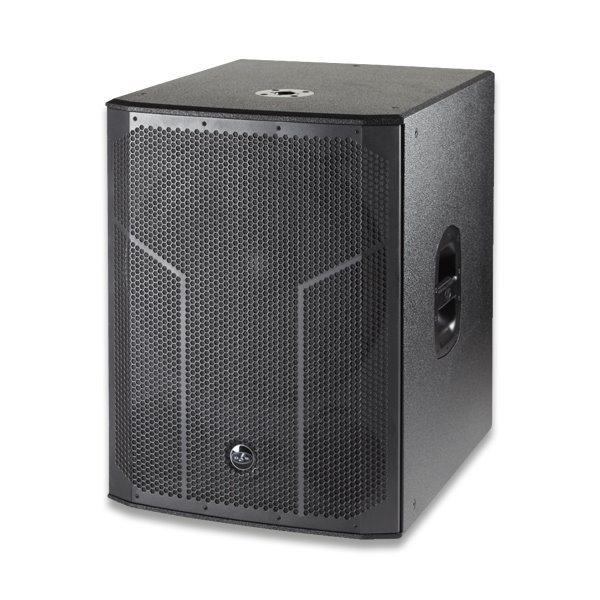

ACTION-S18 is a passive direct radiation subwoofer system composed of a single 18FW4 speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system’s overall performance as a result.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.


FEATURES

Passive subwoofer system
Birch plywood enclosure
Durable ISO-Flex paint
Recommended processor: DSP-226


APPLICATIONS

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations


TECHNICAL DATA
Frequency Range (-10 dB) 33 Hz - 160 Hz
Nominal Impedance 8 ohms
RMS Power Handling 600 W
Peak Power Handling 2400 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 133 dB
Recommended Amplifier PA-900
PA-2700
Recommended Processor DSP-226
Connectors

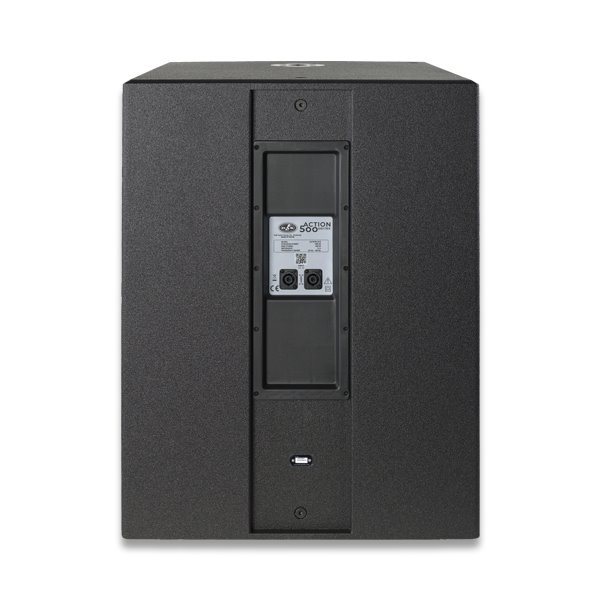

Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 720 x 545 x 660 mm
28,3 x 21,5 x 26,0 in
Net Weight 40,5 kg ( 89,1 lb )
