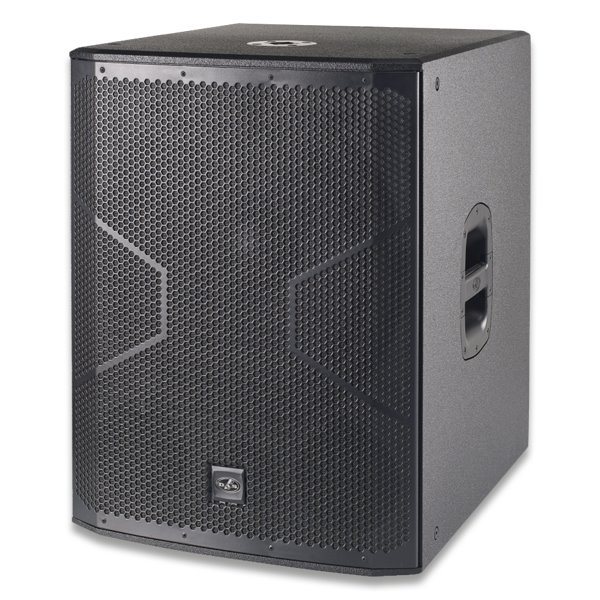

The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3" voice coil for long excursion. Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.
The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.


FEATURES

Companion subwoofer system
High efficiency 18" loudspeaker
Compact Birch plywood enclosure
Pole mount socket for satellite systems


APPLICATIONS

Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship


TECHNICAL DATA
Frequency Range (-10 dB) 45 Hz - 138 Hz
Nominal Impedance 8 ohms
RMS Power Handling 600 W
Peak Power Handling 2400 W
On-axis Sensitivity 1W/1 m 98 dB SPL
Maximum Peak SPL at 1 m 134 dB
Recommended Amplifier PA-1500
Recommended Processor DSP-226
Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 720 x 545 x 650 mm
28,4 x 21,5 x 25,6 in
Net Weight 40,5 kg ( 89,3 lb )
Components
LF Driver 18FW
Shipping
Carton Dimensions ( H x W x D ) 820 x 600 x 700 mm
32,3 x 23,6 x 27,6 in
Shipping Weight 44,5 kg ( 98,1 lb )
