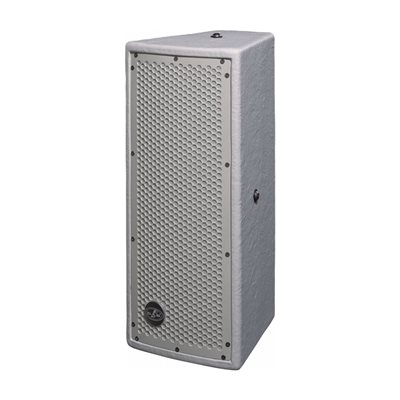

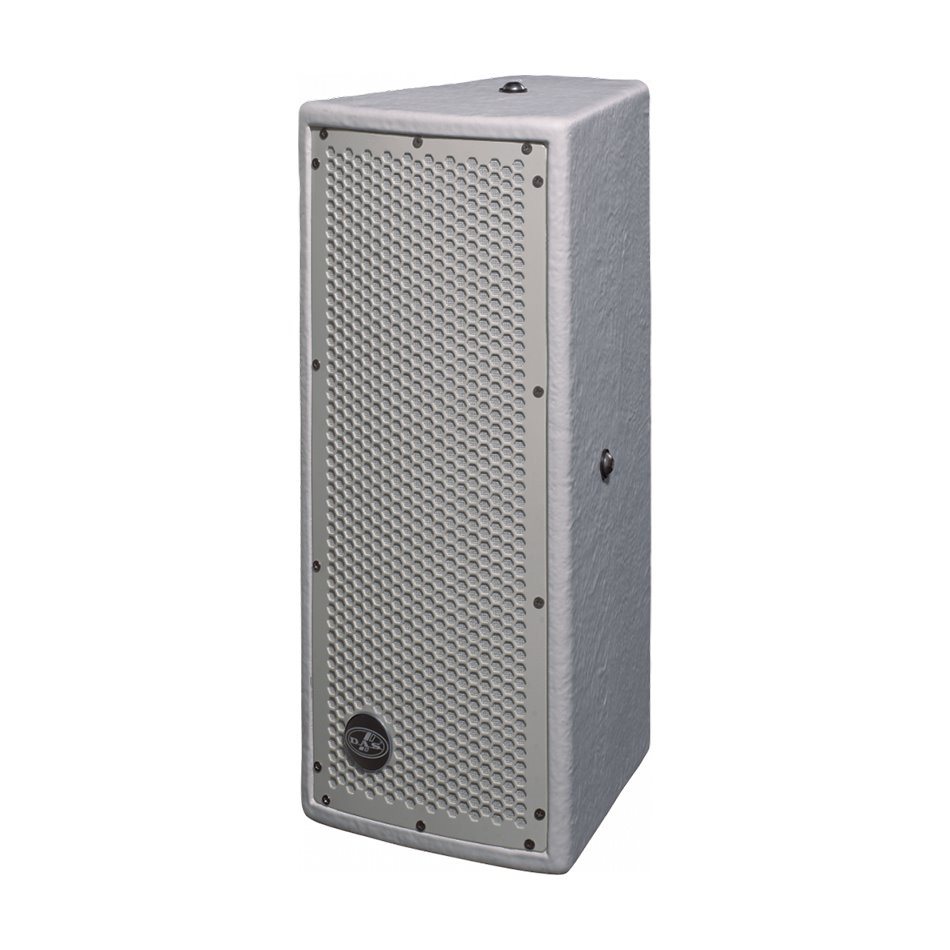

The WR-8826-DX employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black or military grey depending on the finish.


TECHNICAL DATA:

Frequency Range (-10 dB): 70 Hz - 22 kHz
Coverage: 80º x 80°
Nominal Impedance: 16 ohms
RMS Power Handling: 200 W
Peak Power Handling: 800 W
On-axis Sensitivity 1W/1 m: 93 dB SPL
Maximum Peak SPL at 1 m: 122 dB
Audio Input Connector: Covered Barrier Strip Terminals
Audio Output Connector: Covered Barrier Strip Terminals


Enclosure

Enclosure Construction: Birch Plywood
Enclosure Geometry:Trapezoidal
Rigging: M10 Rigging Points
Finish: Fiberglass
Color: grey
IP Rating: IP54
Depth: 270 mm
Dimensions ( H x W x D ): 550 x 230 x 270 mm
Net Weight: 13,5 kg


Components

LF Driver: 2 x 6B
HF Driver: M-1
Horn/Waveguide: BC-88
