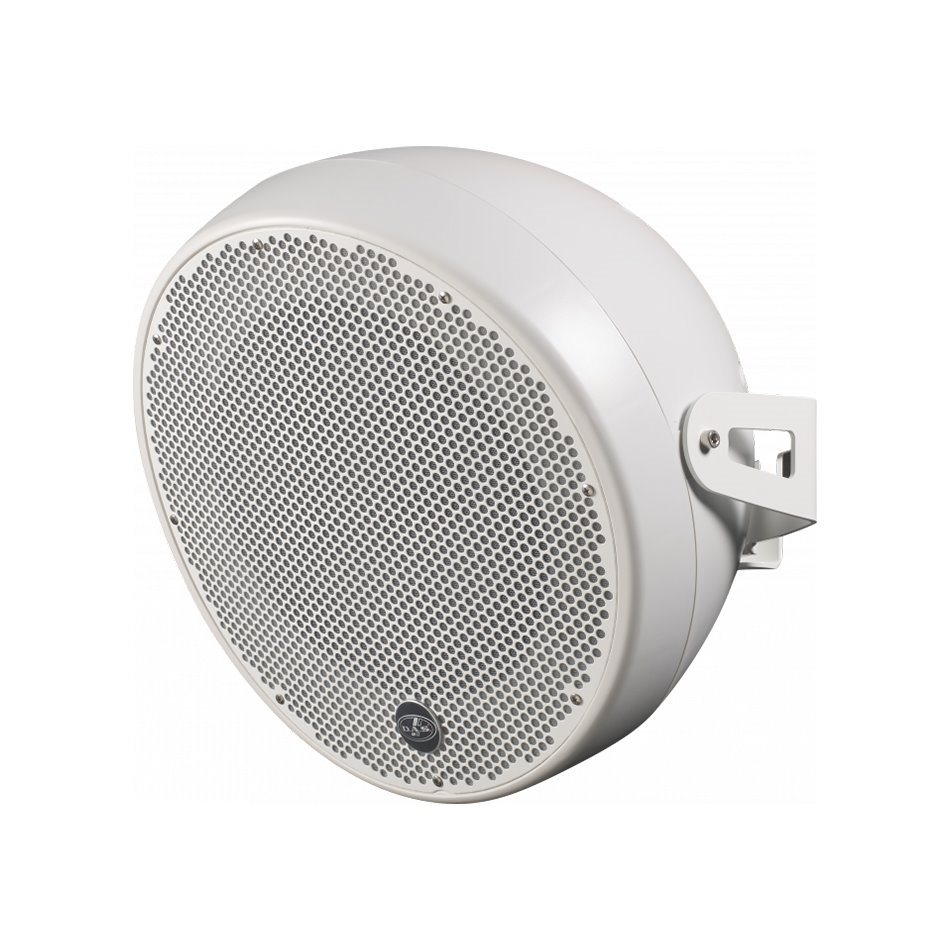

The Ovi-12 is a unique and versatile loudspeaker system. The Ovi-12, can be mounted on walls, placed in ceiling structures, or suspended as a pendant speaker. All with the clarity and power of a true two way loudspeaker system.

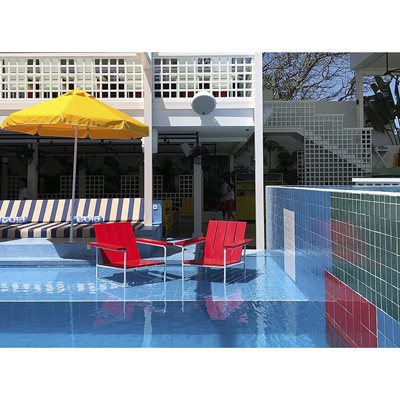

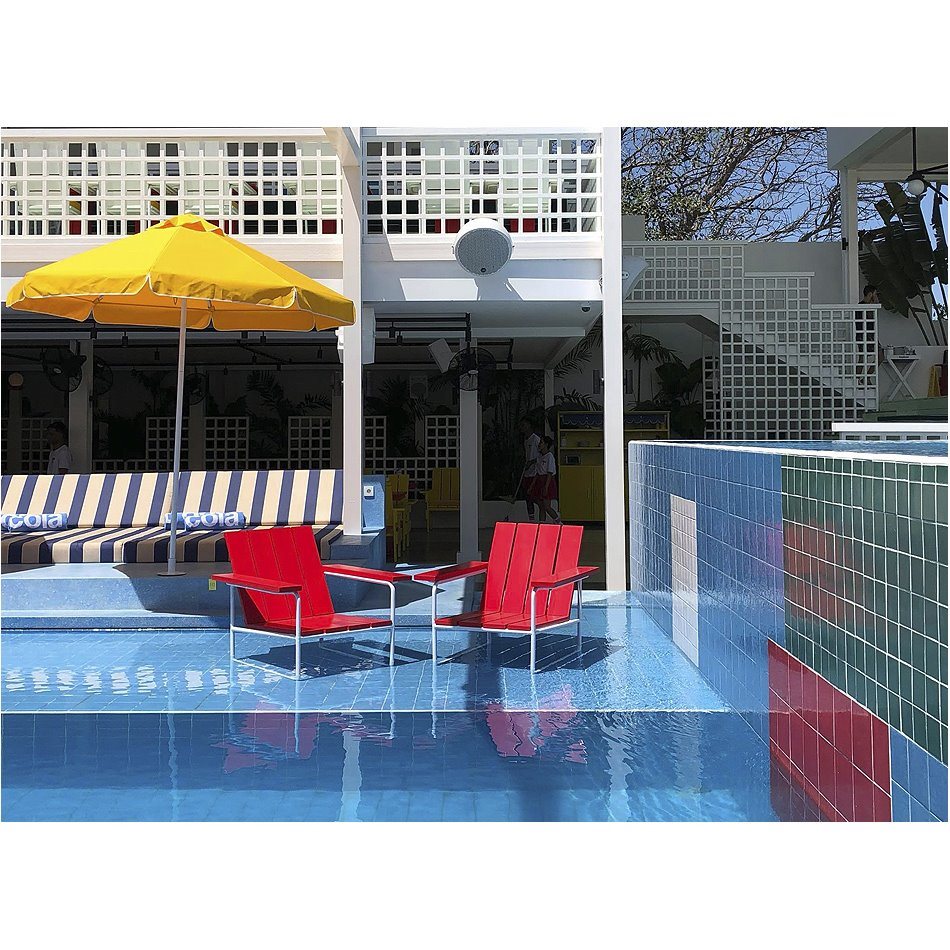

Comprising a 12” coaxial loudspeaker housed within a light weight polypropylene shell, the Ovi-12 can be used to deliver excellent speech intelligibility and full, rich music reproduction in spaces such as restaurants, night clubs, retail spaces, houses of worship, and convention facilities. A wide variety of accessories are available to facilitate installation.

IP54 all weather version.


Hauptmerkmale:

Unique and versatile loudspeaker system
Wide variety of indoors and outdoors applications
Rich music reproduction
12” coaxial speaker with 1” compression driver
Lightweight polypropylene enclosure
IP54 all weather version.


Technische Daten:

Frequency Range (-10 dB) 63 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 90º
Nominal Impedance 8 Ohms
RMS Power Handling 300 W
Peak Power Handling 1200 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 130 dB
Recommended Amplifier IA-1002
IA-1004

Enclosure Construction Polypropylene
Enclosure Geometry Round
Depth 290 mm (11,4 in)
Dimensions ( H x W x D ) 500 x 505 x 290 mm
Net Weight 10,5 kg ( 23,2 lb )

Datenblatt
