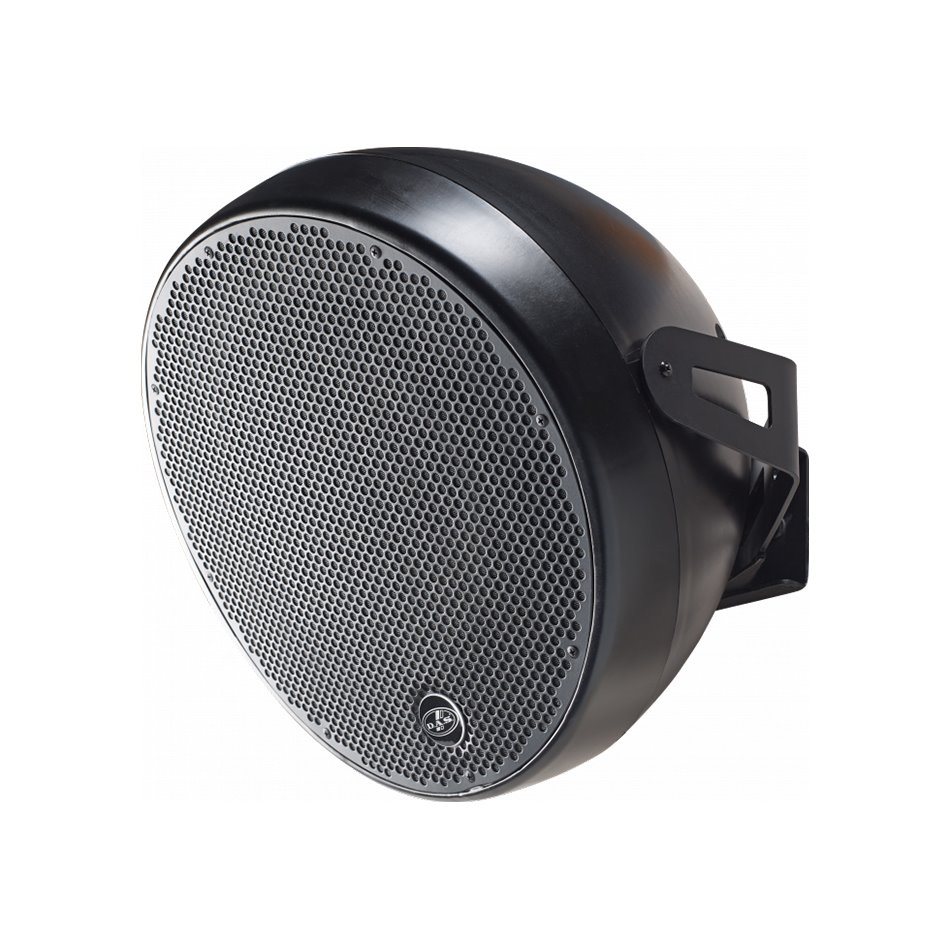

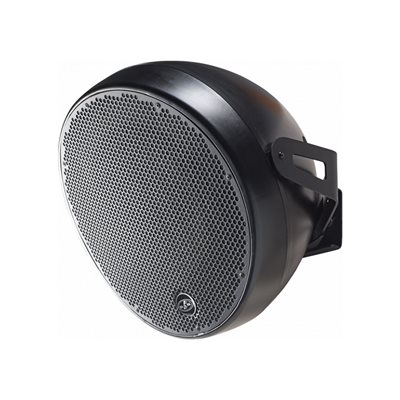

The Ovi-12 is a unique and versatile loudspeaker system. The Ovi-12, can be mounted on walls, placed in ceiling structures, or suspended as a pendant speaker. All with the clarity and power of a true two way loudspeaker system.
Comprising a 12” coaxial loudspeaker housed within a light weight polypropylene shell, the Ovi-12 can be used to deliver excellent speech intelligibility and full, rich music reproduction in spaces such as restaurants, night clubs, retail spaces, houses of worship, and convention facilities. A wide variety of accessories are available to facilitate installation.


Hauptmerkmale:

Unique and versatile loudspeaker system
Wide variety of indoors and outdoors applications
Rich music reproduction
12” coaxial speaker with 1” compression driver
Lightweight polypropylene enclosure


Technische Daten:

Frequency Range (-10 dB) 63 Hz - 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 90º
Nominal Impedance 8 Ohms
RMS Power Handling 300 W
Peak Power Handling 1200 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 130 dB
Recommended Amplifier IA-1002
IA-1004

Enclosure Construction Polypropylene
Enclosure Geometry Round
Depth 290 mm (11,4 in)
Dimensions ( H x W x D ) 500 x 505 x 290 mm
Net Weight 10,5 kg ( 23,2 lb )

Datenblatt
