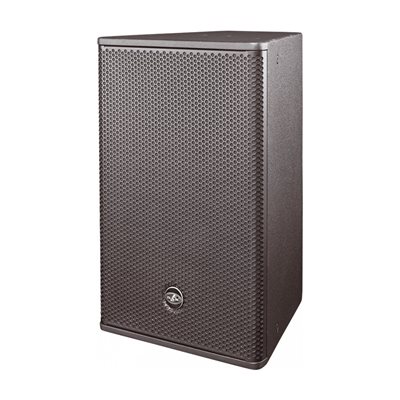

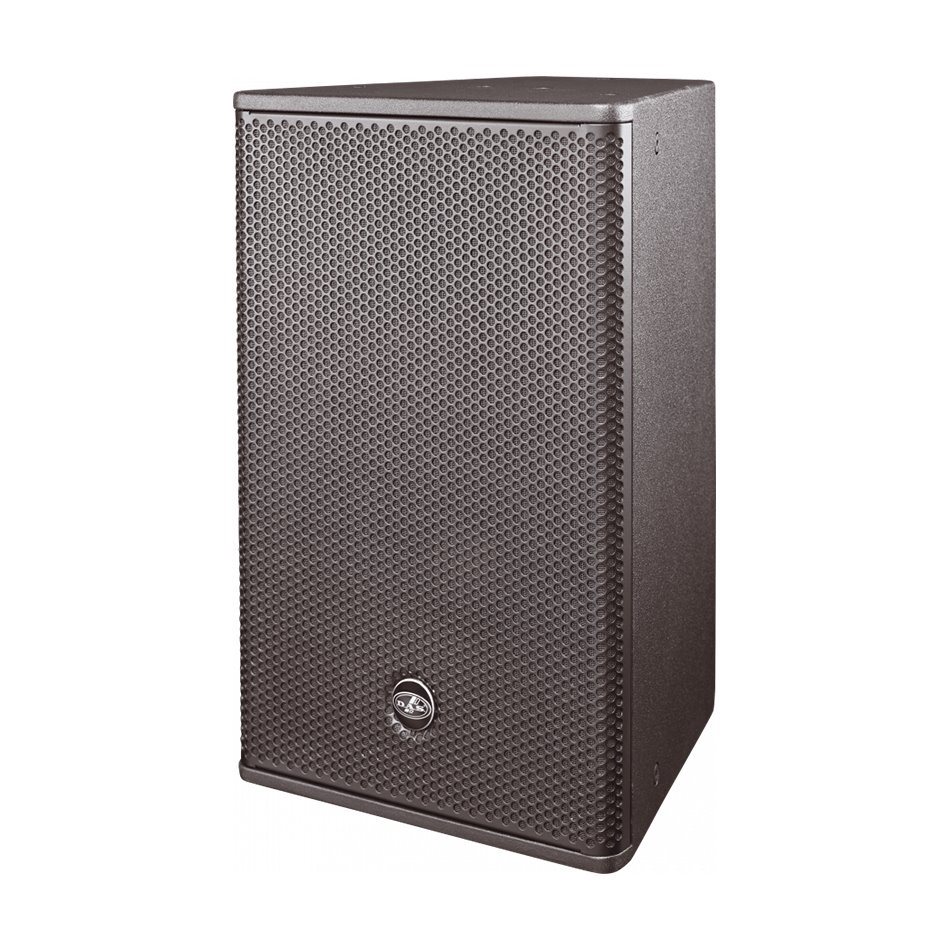

The ARTEC-312.96 is a compact 2-way full-range loudspeaker system comprised of one 12" low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets.


Hauptmerkmale:

1 x 12MI low frequency loudspeaker, 2.5” VCD
1 x M-34 compression driver
Rotatable 90º x 60º horn
Vertical or horizontal positioning
Optional AXU-AR312 U-Bracket
M-10 rigging points

Datenblatt
