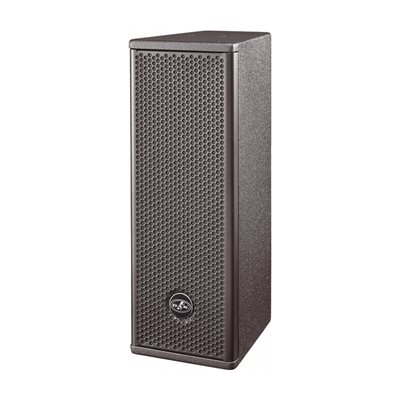

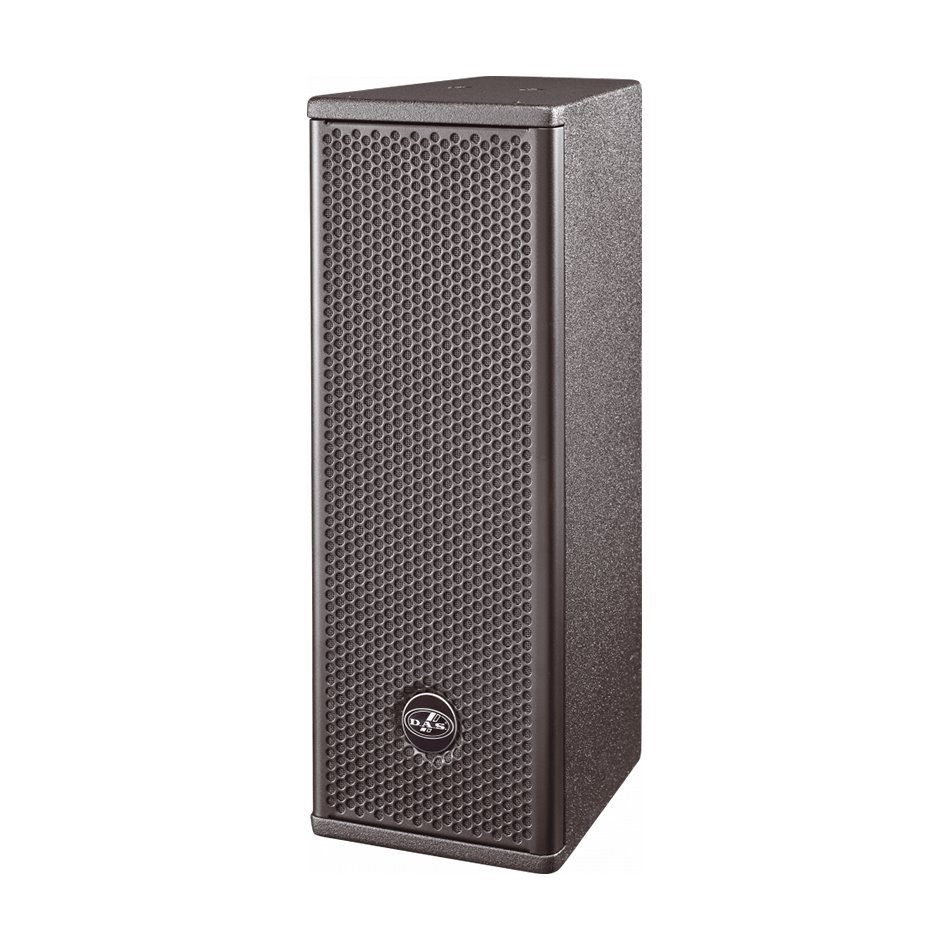

The ARTEC-326-T 2-way passive full range loudspeaker utilizes twin 6" low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. It is ideal for venues with low ceilings, or limited space when installed in the horizontal position.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount and factory installed line transformer.


Hauptmerkmale:

2 x 6B low frequency loudspeakers
1 x M-26 compression driver
Rotatable 90º x 60º horn
Vertical or horizontal positioning
VESA75/VESA100 standard threaded mounting points
Version with factory installed multi-tap transformer
12.5 W/25 W/50 W/100 W (70 V)
25 W/50 W/100 W (100 V)
AXU-A326 U-Bracket included
