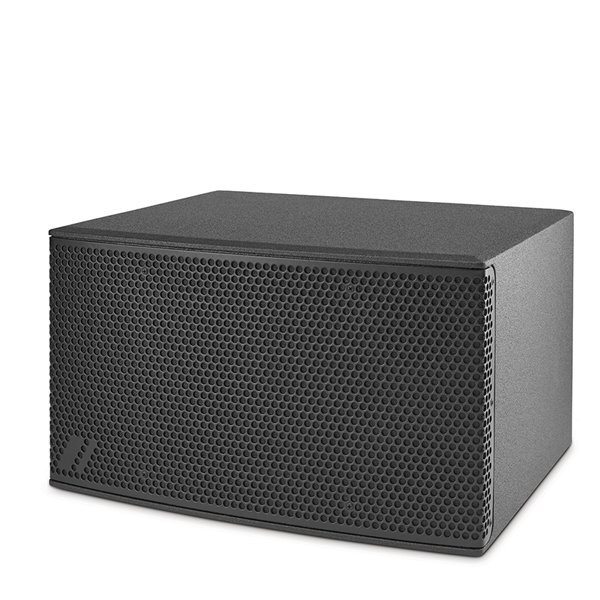

Q-10A ACTIVE POWERED SUBWOOFER

This self-powered, ultra-compact, low-profile subwoofer is ideal for small- and medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops.
The system is equipped with a class D switched-mode amplifier, with two signal inputs, variable low-pass filter, and parameter adjustment (deep/loud) with DAScontrolTM technology.


FEATURES

Compact self-powered subwoofer system
DAScontrolTM interface for easy setup
Birch plywood enclosure
1 DAS 10MG loudspeaker
Frequency range 40 Hz - 200 Hz
500 W peak Class D amplifier


APPLICATIONS

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs


TECHNICAL DATA
Frequency Range (-10 dB) 40 Hz - 200 Hz
Maximum Peak SPL at 1 m 121 dB

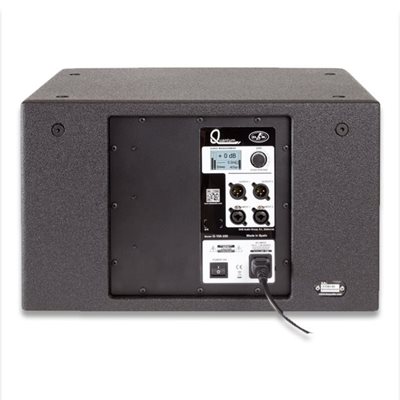

Electronics and Connectors
Nominal Amplifier Power (continuous) 250 W
Nominal Amplifier Power (peak) 500 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 2 x Male XLR
AC Input Connector IEC
Operating Range 90-127/180-250 VAC
Current Draw 115 V 2.8 A
Current Draw 230 V 1.4 A
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 305 x 505 x 415 mm
12,0 x 19,9 x 16,3 in
Net Weight 17,0 kg ( 37,4 lb
