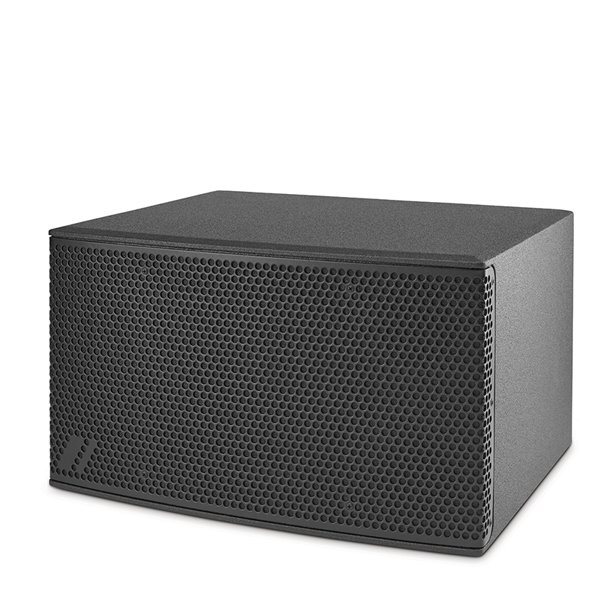

Q-10 PASSIVE SUBWOOFER

This ultra-compact, low-profile subwoofer is ideal for small and medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops.

FEATURES

Compact subwoofer system
Birch plywood enclosure
1 DAS 10MG loudspeaker
Frequency range 40 Hz - 200 Hz


APPLICATIONS

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs


TECHNICAL DATA
Frequency Range (-10 dB) 40 Hz - 200 Hz
Nominal Impedance 8 Ohms
RMS Power Handling 250 W
Peak Power Handling 1000 W
On-axis Sensitivity 1W/1 m 94 dB SPL
Maximum Peak SPL at 1 m 121 dB
Recommended Amplifier IA-404
IA-1004
Recommended Processor DSP-226
Connectors

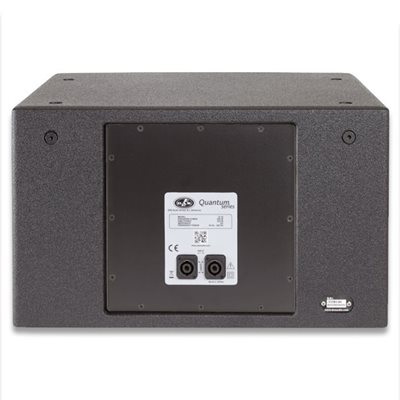

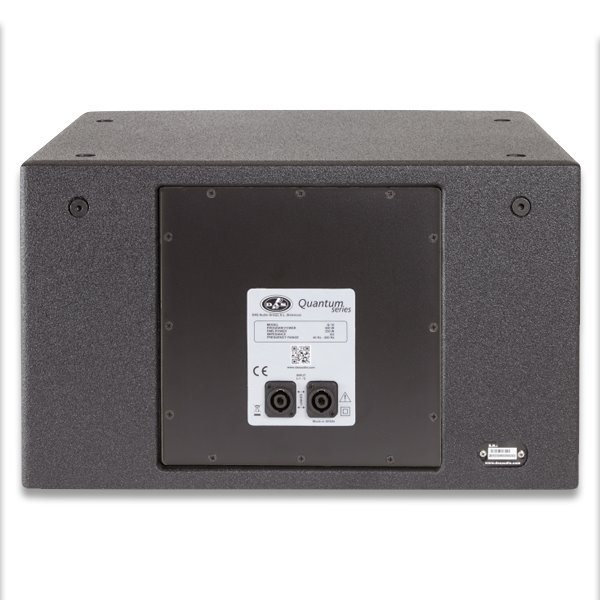

Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 305 x 505 x 415 mm
12,0 x 19,9 x 16,3 in
Net Weight 16,0 kg ( 35,3 lb )
