Q-3TW

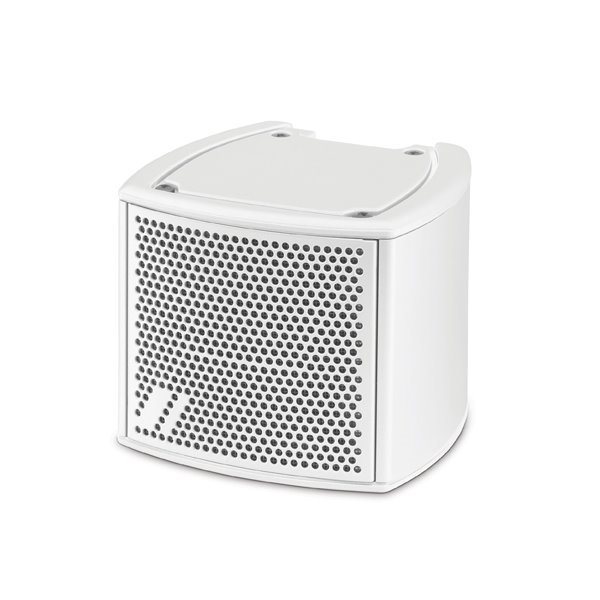

The Q-3-T is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.
The aluminum enclosure and the IP-54 kit make this a highly reliable and durable choice, available in any RAL color.

FEATURES

Passive system
Extruded aluminum enclosure
1 x 3”, 3P full-range speaker
Dispersion H x V: 120º x 120º
SPL peak: 106 dB
Multi-tap 100/70V transformer included
Low/high-impedance operation
Available in all RAL colors

APPLICATIONS

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs


TECHNICAL DATA
Frequency Range (-10 dB) 150 Hz - 20 kHz
Horizontal Coverage (-6 dB) 120º
Nominal Impedance 8 ohms

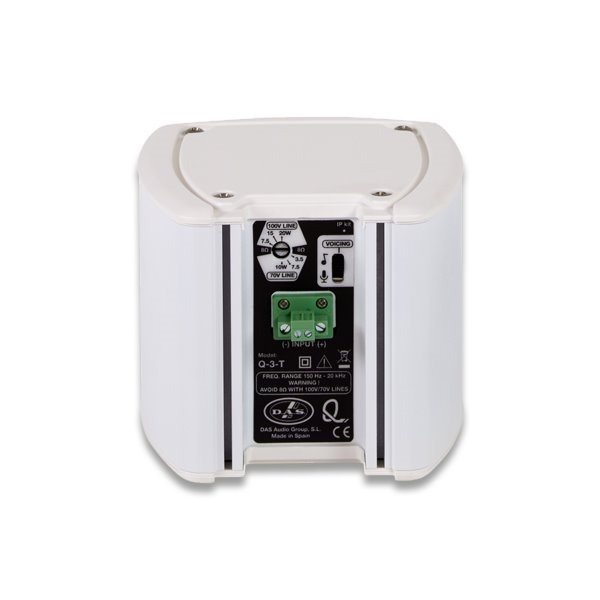

Transformer Taps 70 V 3.5 W - 7.5 W - 10 W
Transformer Taps 100 V 7.5 W - 15 W - 20 W
RMS Power Handling 20 W
Peak Power Handling 80 W
On-axis Sensitivity 1W/1 m 87 dB SPL
Maximum Peak SPL at 1 m 106 dB SPL
Recommended Amplifier IA-402
IA-404
Recommended Processor DSP-226
Audio Input Connector 2-way Phoenix 2.54 mm
Enclosure Construction Aluminum
Finish Paint
Color White
Optional: RAL Colors
IP Rating IP54
Dimensions ( H x W x D ) 105 x 125 x 125 mm
4,1 x 4,9 x 4,9 in
Net Weight 1,6 kg ( 3,5 lb )
