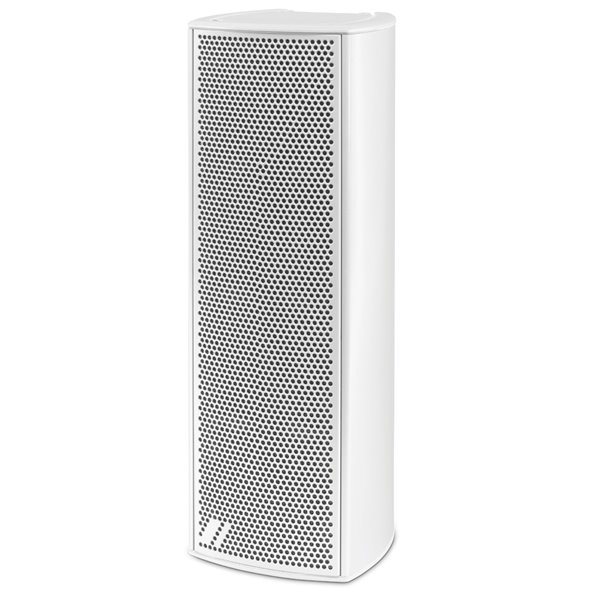

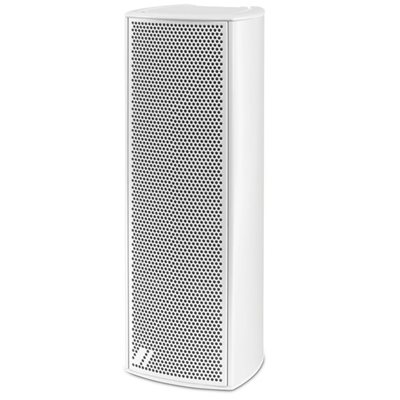

Q-43TW

This system is designed for small- and mid-sized venues. The vertical dispersion selection by means of the system-integrated filter (30º/45º) makes it possible to control the system’s dispersion lobe in the vertical plane and thus reduce the reverb, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction.
The aluminum enclosure and the IP-54 kit make this a highly reliable and durable choice, available in any RAL color.

FEATURES

Passive system
Extruded aluminum enclosure
4 x 3”, 3P16 full-range speaker
Dispersion H x V: 120º x 30º/45º
SPL peak: 118 dB
Multi-tap 100/70V transformer included
Low/high impedance operation
Available in all RAL colors

APPLICATIONS

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs


TECHNICAL DATA
Frequency Range (-10 dB) 150 Hz - 20 kHz
Horizontal Coverage (-6 dB) 120º
Vertical Coverage Switchable: 45º - 30º
Nominal Impedance 4 ohms
Transformer Taps 70 V 7.5 W - 15 W - 25 W
Transformer Taps 100 V 15 W - 30 W - 50 W
RMS Power Handling 80 W
Peak Power Handling 320 W
On-axis Sensitivity 1W/1 m 93 dB SPL
Maximum Peak SPL at 1 m 118 dB SPL
Recommended Amplifier IA-1002
IA-1004
Recommended Processor DSP-226

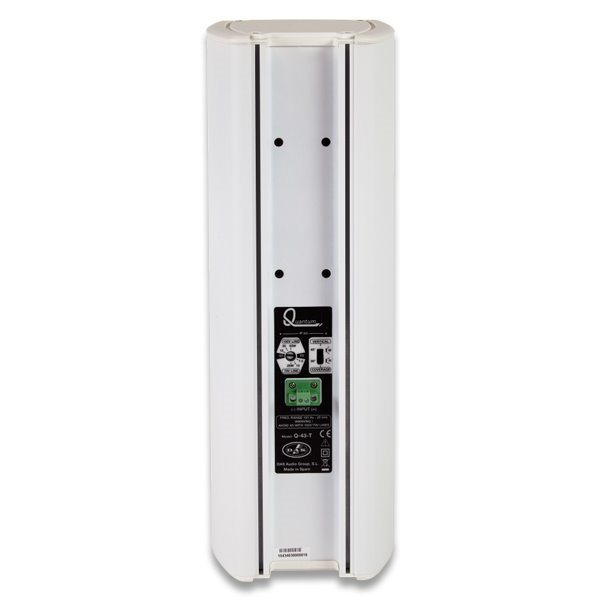

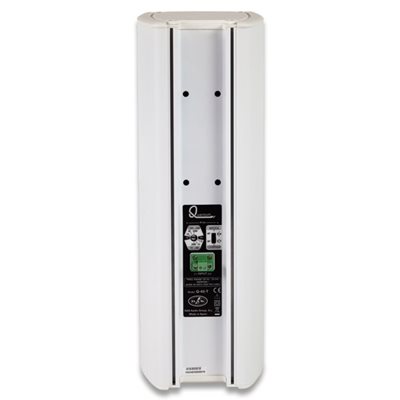

Connectors
Audio Input Connector 2-way Phoenix 2.54 mm
Enclosure
Enclosure Construction Aluminum
Finish Paint
Color White
Optional: RAL Colors
IP Rating IP54
Dimensions ( H x W x D ) 355 x 125 x 125 mm
14,0 x 4,9 x 4,9 in
Net Weight 5,3 kg ( 11,7 lb )
