WARM-2

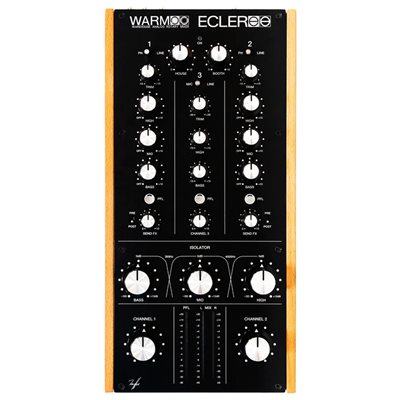

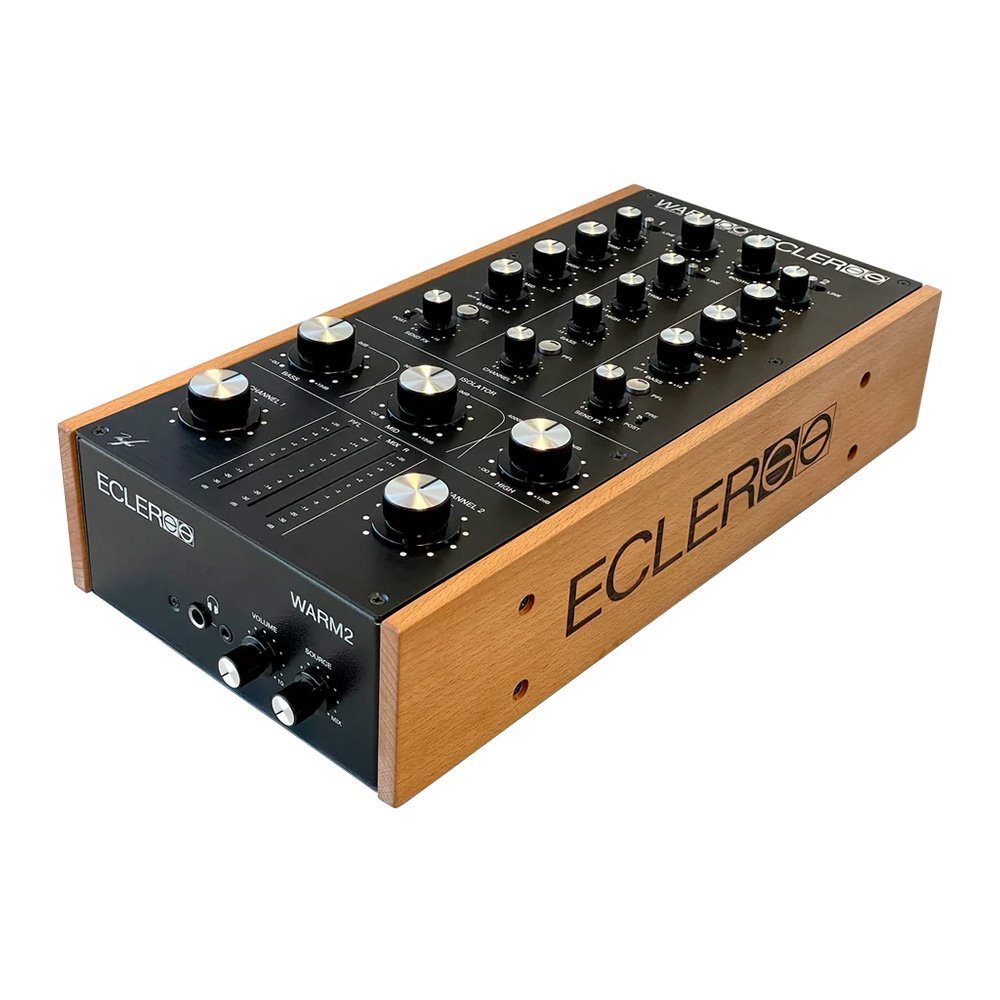

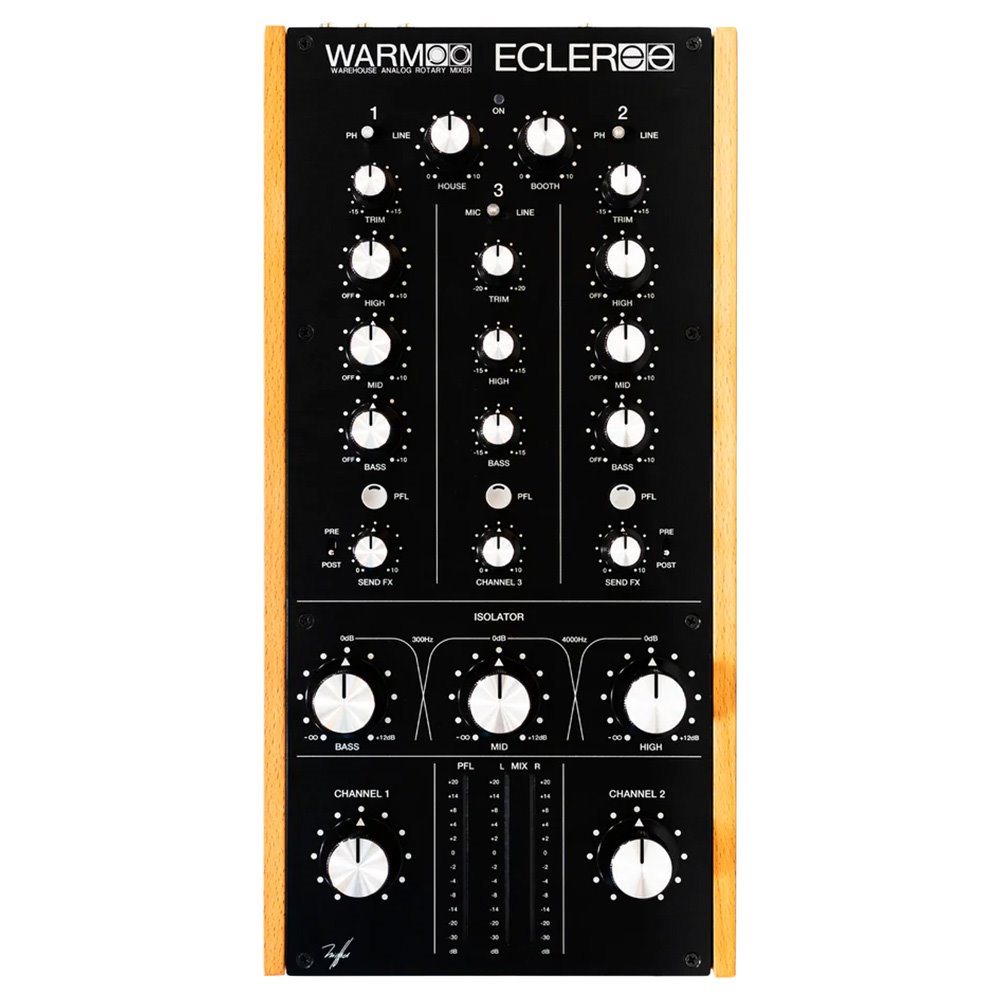

WARM2 is a professional two-channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring two phono/line channels and a micro/line channel, classic sharp filters, a 4th order Isolator and a narrow portable format, it will deliver a warm and crystal clear analogue sound.


KEY FEATURES
• 2+1 Mixing channels
• 1 MICRO input
• 2 PHONO inputs
• 3 LINE inputs
• Master Output (HOUSE) on XLR and RCA connectors
• Booth Output on RCA connectors

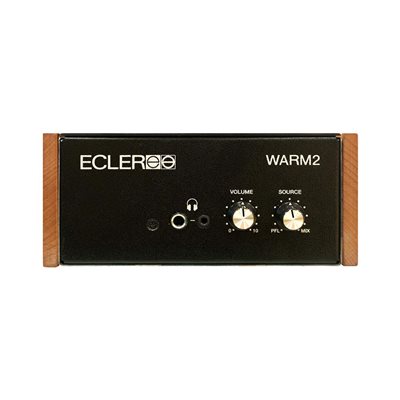

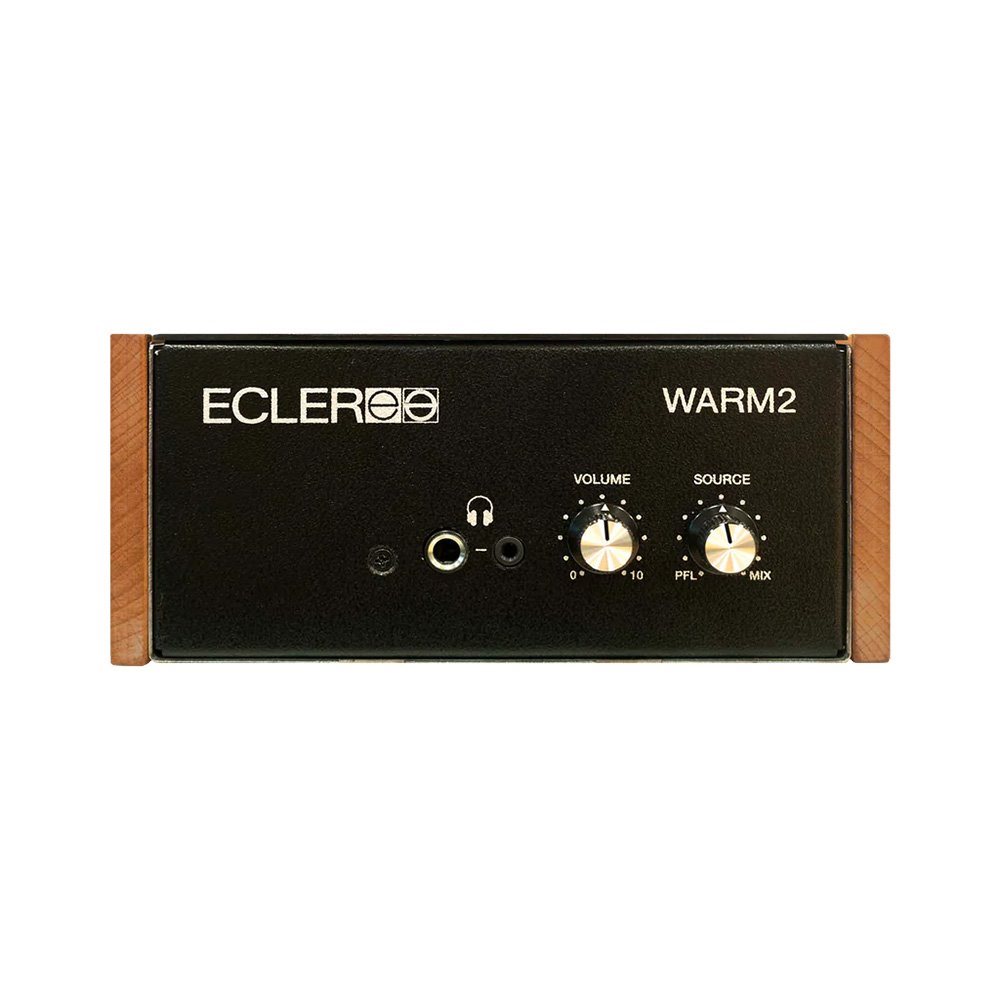

• 6.3mm Jack and 3.5mm mini-jack Headphone Monitor Outputs
• 3 band full cut EQ for main channels and 2 band full cut EQ for MICRO/LINE channel
• 3 bands isolator (300Hz and 4KHz, -8/+12dB, 4th order 24dB/oct )
• Maximum Output without distortions: 21dBV (23dBu)
• Mechanized from a solid block of aluminum knob, without visible screw. Ecler Unique design
• Alps Blue Velvet Potentiometers
• FX Send control and Pre/Post fader selector
• Screen-printed faceplate by selective anodizing
• Wooden side panels included


WARM2 is the first Ecler rotary mixer inspired by The Warehouse in Chicago, a place where many consider the cradle of House Music back in 1977. This place ignited the spark that eventually became the House Music scene we love and admire today.

Back in the days, Ecler was forging its own place among the Dj Mixer manufactures, while Frankie Knuckles, the godfather of House Music and The Warehouse first musical director, was reconstructing the soul and disco existing songs, by changing the tempo and layering different bits of percussion over them. These alterations transformed the dancefloor forever.

Rotary mixers have an special feel, creating a smoother and subtler transitions. Legendary Djs like Joe Clausell, Louie Vega and more recently Floating Points or Motorcity Drum Ensemble are top class users of these particular devices.

With WARM2, you’ll be able to get Ecler's design expertise at your fingertips, its unquestionable audio quality, and the “Alps Blue Velvet” potentiometers precision for the perfect mix. The 4th order inbuilt isolator, will definitely expand your performance possibilities by removing frequencies, infusing drama in an acapella track, enhancing musical riffs or creating a tremolo effect by rapidly twisting the knobs.

With a width of 18.5 centimeters, WARM2 is the narrowest rotary mixer on the market. Despite this, it includes interesting features such as: 3-band EQ + Trim, FX Send control and Pre/Post fader selector, and an excellent dynamic and headroom range. WARM2 provides the best analog sound for your dancefloor in a portable format.


TECHNICAL SPECIFICATIONS

Inputs Sensitivity nom/Impedance:
LINE : 0dBV/50kO
PHONO : -40dBV/50kO
MICRO : -50dBV/>1kO
FX RETURN : 0dBV/>6kO

Outputs Level/Minimum Load:
HOUSE (BAL) : 0dBV/600O 1V *(+12dB 4V)
HOUSE (UNBAL) : 0dBV/2.2kO 1V *(+12dB 4V)
BOOTH (UNBAL) : 0dBV/2.2kO 1V *(+12dB 4V)
REC : 0dBV/10kO
HEADPHONES : 200mO/200O THD 1%
FX SEND : 0dBV/2.2kO

Frequency Response:
LINE : 10Hz÷30kHz -1dB
MICRO : 10Hz÷25kHz -1dB
PHONO : RIAA ±0.5dB
FX RETURN : 10Hz÷50kHz -1dB

THD-N:
LINE : <0.006%
MICRO : <0.9%
PHONO : <0.08%
FX RETURN : <0.005%

CM MR:
MICRO : >70dB @ 1kHz

Signal Noise Ratio:
LINE : >99dB
MICRO : >85dB
PHONO : >98dB
FX RETURN : >100dB

Max Undistorted Output Level:
HOUSE (Electr.BAL) : 21dBV (23dBu)
HOUSE (UNBAL) : 21dBV (23dBu)
BOOTH (UNBAL) : 21dBV (23dBu)

Trim control:
INPUTS 1-2 : ± 15dB
INPUT 3 : ± 20dB

Tone control Inputs 1-2:
BASS : +10/-30dB
MID : +10/-25dB
TREBLE : +10/-30dB

Tone control Input 3:
BASS : ± 15dB
TREBLE : ± 15dB

Tone control Isolator:
BASS : +12/-70dB
MID : +12/-40dB
TREBLE : +12/-70dB

Tone Filter cut frequency at -6dB (slope 12dB/oct):
BASS : 200Hz
MID : 200Hz÷6.8kHz
TREBLE : 6.8kHz

Isolator cut frequency at -6dB (slope 24dB/oct):
BASS : 300Hz
MID : 300Hz÷4kHz
TREBLE : 4kHz

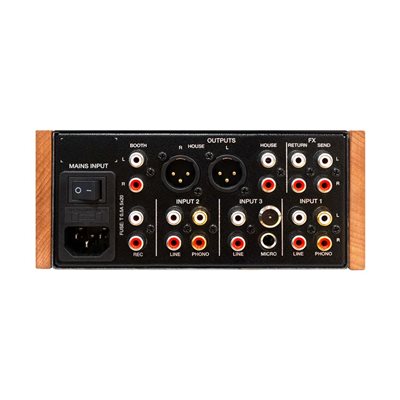

Input Connecors:
LINE 1-2-3 : RCA STEREO
PHONO 1-2 : RCA STEREO
MICRO 3 : 6.3mm TRS BAL. JACK
FX RETURN : RCA STEREO

Output Connecors:
HOUSE (BAL) : XLR STEREO
HOUSE (UNBAL) : RCA STEREO
BOOTH : RCA STEREO
FX SEND : RCA STEREO
REC : RCA STEREO
HEADPHONES : 6.3mm/3.5mm STEREO JACK

Miscellaneous:
Control Mode : Rotary with Alps Blue Velvet Potentiometers
Phantom Voltage : 18VDC/5mA Max (Default ON)
MIX and PFL VU-Meter : LED 12 segments (-30dBV ÷ +20dBV)

Dimensions (without wooden sides):
400 x 185 x 100mm / 15.7” x 7.2” x 3.9”
Weight : 3.6Kg / 7.94 lbs
