NUO 2.0

Professional DJ Mixer

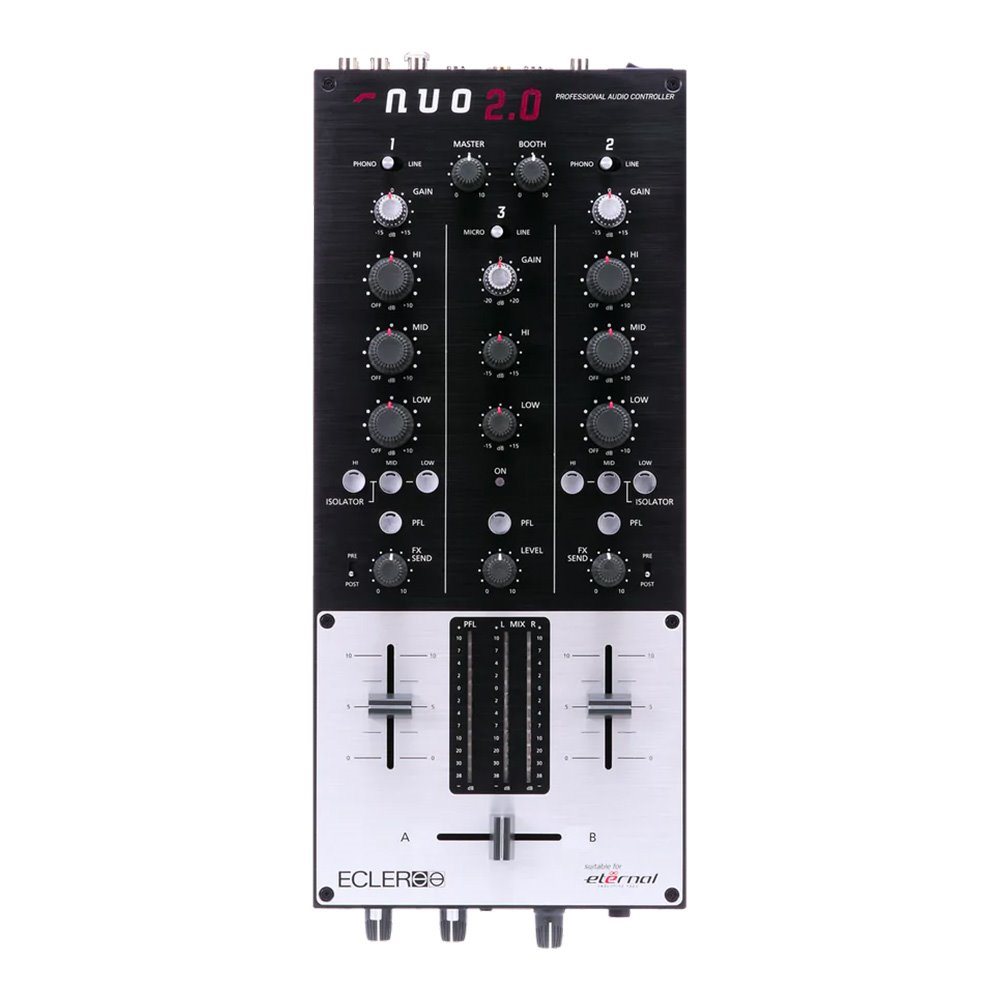

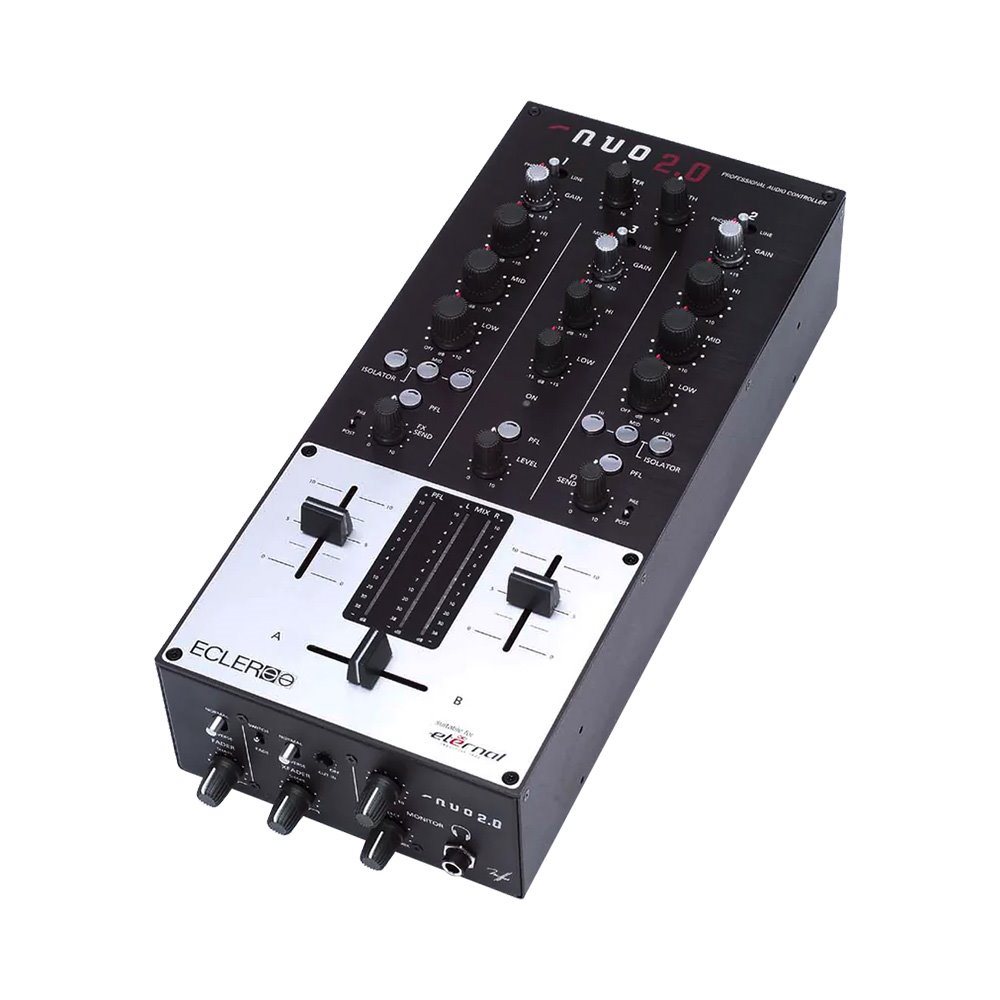

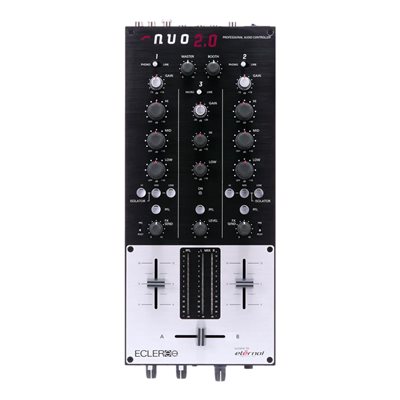

The NUO 2.0 is a 2+1 channel analogue mixer addressed to the professional DJ of any kind, in despite of the mixed music style.


KEY FEATURES
• 2 mixing channels
• 1 MICRO/LINE channel
• 2 PHONO inputs
• 3 LINE inputs
• Master output XLR and RCA
• Booth output RCA
• 3 band full cut EQ
• Extra large ergonomic EQ knobs
• 3 band EQ kill switches
• FX Send control per channel
• FX Pre/Post fader selector
• 45mm long life VCA faders
• 45mm long life VCA crossfader

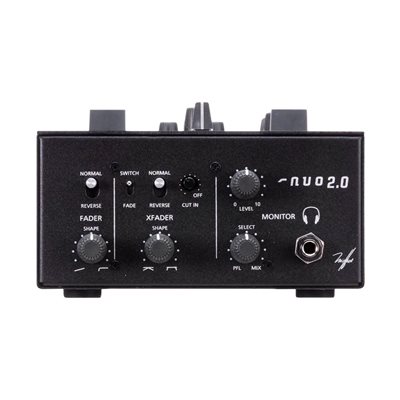

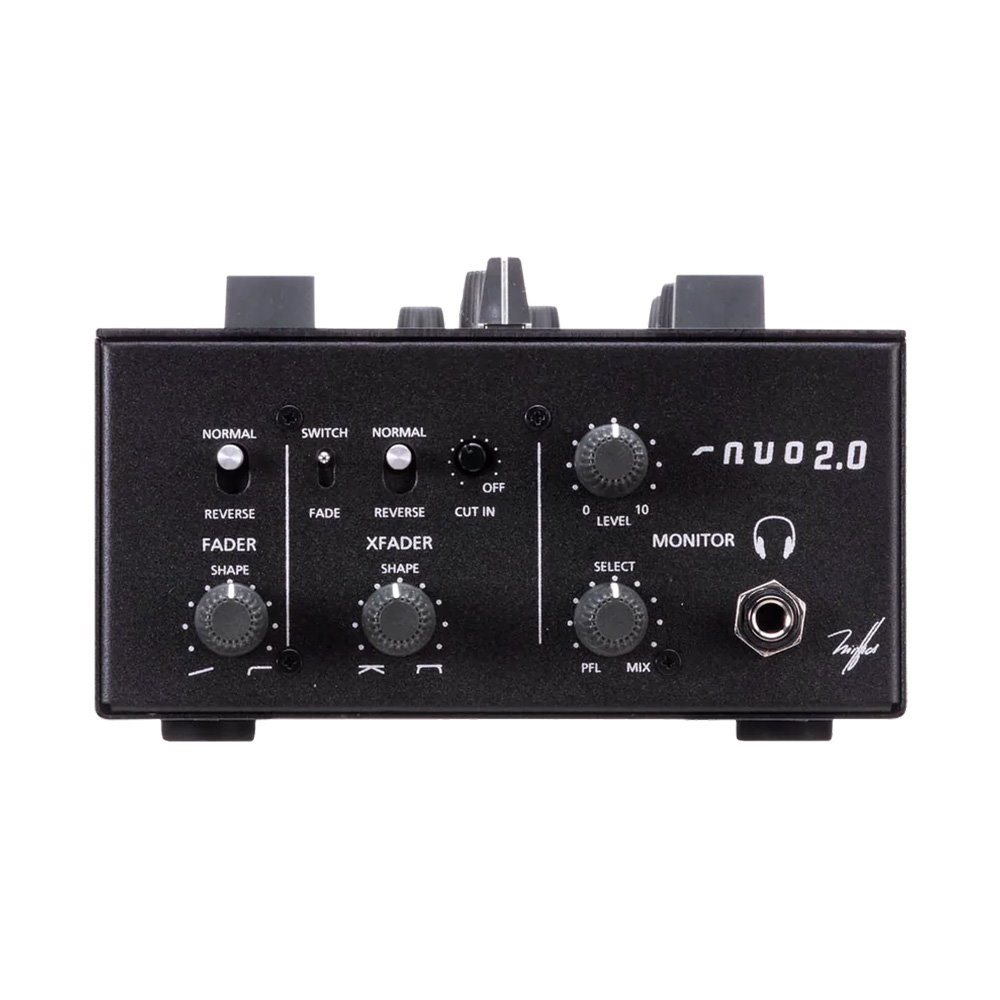

• Fader and crossfader shape adjustment
• Crossfader Reverse and Cut-In
• Crossfader suitable for ETERNAL


The NUO 2.0 is a 2 channel analogue mixer addressed to the profesional DJ of any kind, in despite of the music style. It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest Sound performance.

Whether you play house, techno or hip hop, perform smoothly or as a scratch DJ, the NUO 2.0 will please all your needs thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, FX Send control per channel in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ.

Its superb sound quality and robust format, plus balanced XLR Master output and Booth output for monitoring make it also a perfect mixer for small installations.


TECHNICAL SPECIFICATIONS

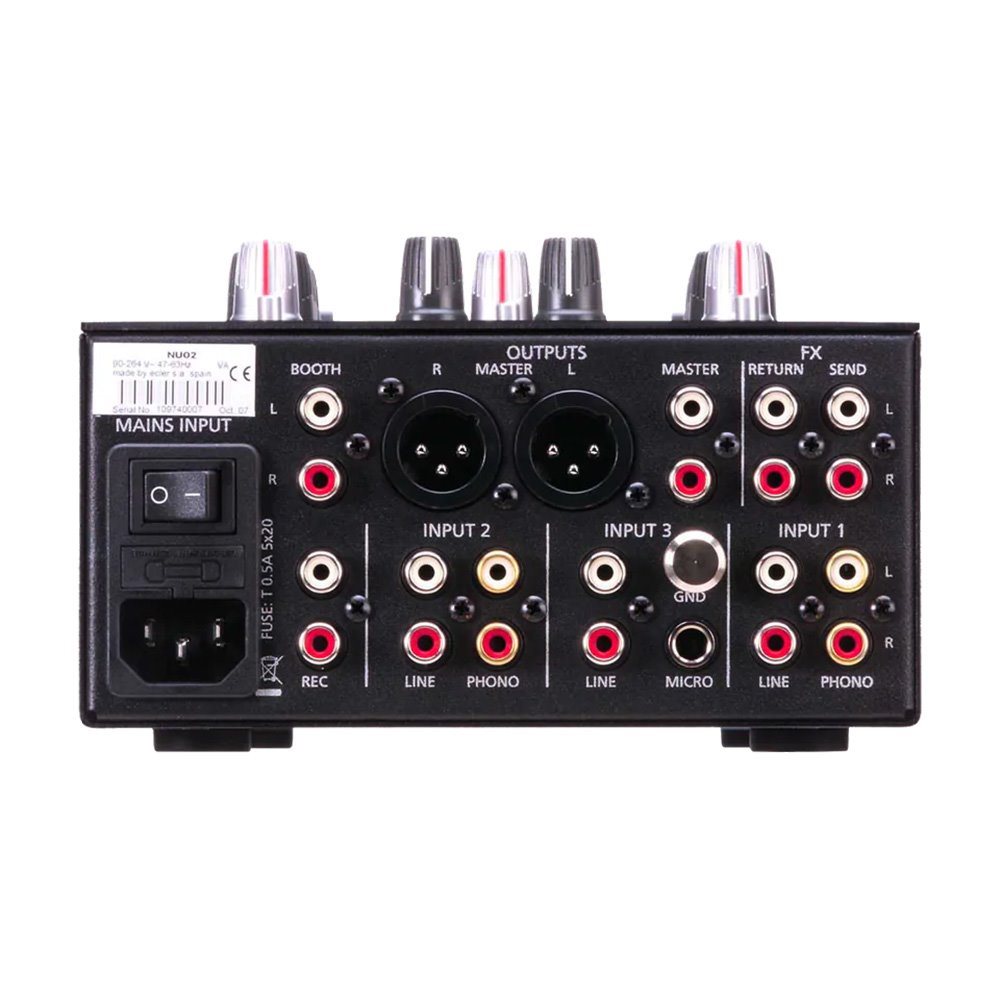

Inputs Sensitivity nom/Impedance:
LINE : 0dBV/50kO
PHONO : -40dBV/50kO
MICRO : -50dBV/>1kO
FX RETURN : 0dBV/>6kO

Outputs Level/Minimum Load:
MASTER (BAL) : 0dBV/600O 1V *(+6dB 2V)
MASTER (UNBAL) : 0dBV/2.2kO 1V *(+6dB 2V)
BOOTH (UNBAL) : 0dBV/2.2kO 1V *(+6dB 2V)
REC : 0dBV/10kO
HEADPHONES : 200mO/200O THD 1%
FX SEND : 0dBV/2.2kO

Frequency Response:
LINE : 10Hz÷30kHz -1dB
MICRO : 10Hz÷25kHz -1dB
PHONO : RIAA ±0.5dB
FX RETURN : 10Hz÷50kHz -1dB

THD-N:
LINE : <0.07%
MICRO : <0.1%
PHONO : <0.15%
FX RETURN : <0.05%

Signal Noise Ratio:
LINE : >95dB
MICRO : >85dB
PHONO : >90dB
FX RETURN : >100dB

Gain control:
INPUTS 1-2 : ± 15dB
INPUT 3 : ± 20dB

Tone control Inputs 1-2:
BASS : +10/-30dB
MID : +10/-25dB
TREBLE : +10/-30dB

Tone control Input 3:
BASS : ± 15dB
TREBLE : ± 15dB
