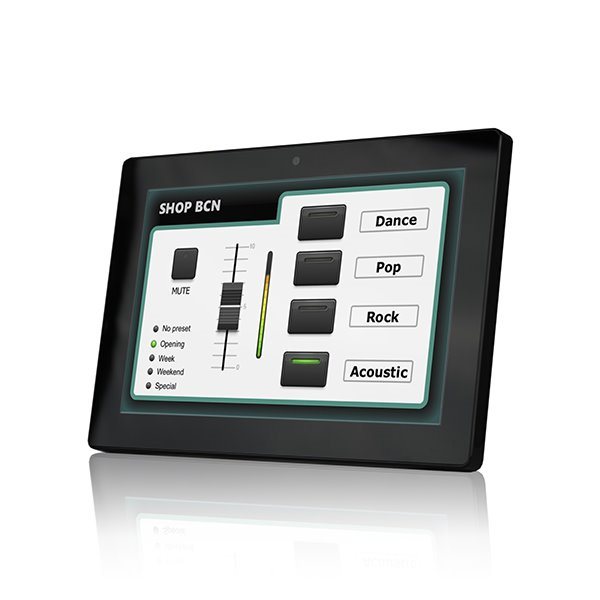

WPNETTOUCH is a remote control TFT touchscreen compatible with all EclerNet products such as: MIMO4040DN, MIMO88/88SG, MIMO1212SG, MIMO7272DN, NXA Series and DUO-NET PLAYER. Incorporates a capacitive 10” touch screen, server client and UCP server (User Control Panel). When including a WPNETTOUCH in an EclerNet installation it is not necessary to use a computer to manage connected devices, neither to have the UCP panels created for the project (NOTE: MIMO4040DN can also work as UCP server in an installation). Each unit could be configured to work as a single zone control panel or as a global multi-zone controller. It allows executing User Control Panels that are able to control volume, sound source selection, recalling presets, communication via TCP/UDP with external devices, etc.
It is fully compatible as a server for other clients like WPNETTOUCH, WPmSCREEN as well as UCP for third party devices (iOS©, Android©, Windows©, etc.).
Power over Ethernet or local power supply. Surface-mount accessories included. Compatible with VESA75 mounting standard.


KEY FEATURES

• EclerNet control device, with the ability to execute EclerNet projects on its internal engine, acting as a server and / or client of UCP panels
• 10 "capacitive touch screen
• PoE power or local power supply
• Ethernet communication interface
• Compatible with VESA75 mounting system

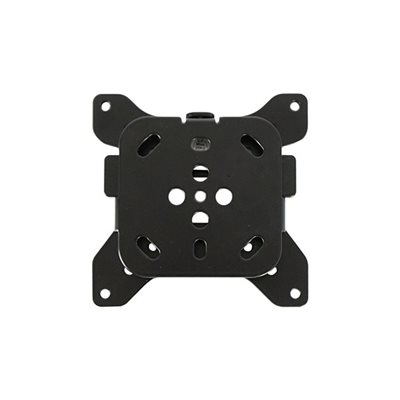

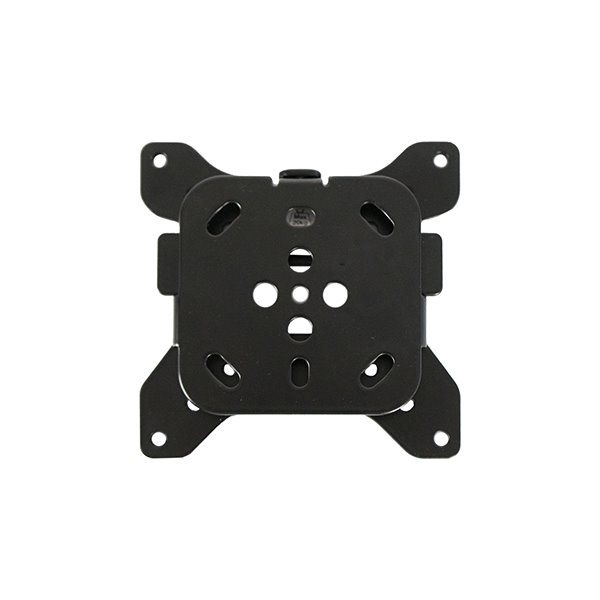

• Wall mount VESA75 bracket + screws set + security screw + tool included


APPLICATIONS

• Commercial
• Hospitality
• Education
• Corporate
• Sports and wellness





TECHNICAL DATA

Active area 218 x 135 mm (16:9)
Bracket mounting holes VESA 75mm compatible
Ethernet port Ethernet Base-Tx 10/100Mb / 1GB CAT5e or better up to 100m.
Resolution 1280 x 800
Screen / Touch panel 10.1
Supply voltage 100-240VAC 50-60Hz 12V / 2A, multi-plug
Dimensions WxHxD 260 x 178 x 28 mm / 10.2” x 7.0” x 1.1”
Weight 700 gr / 1.54 lb
