PROFESSIONAL INSTALL AMPLIFIER

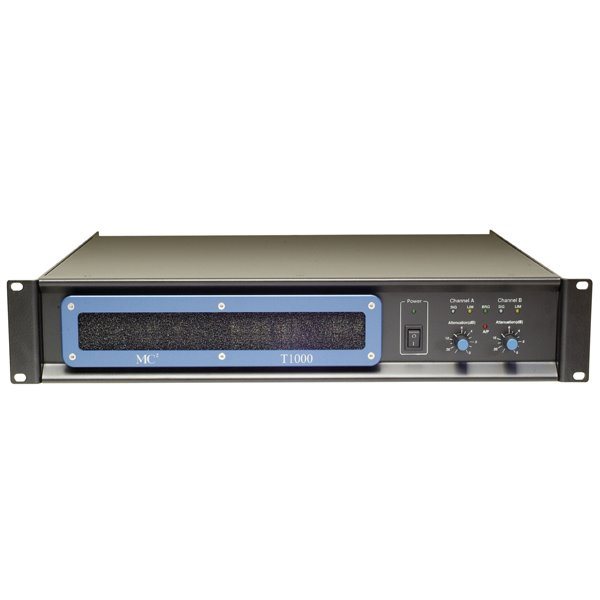

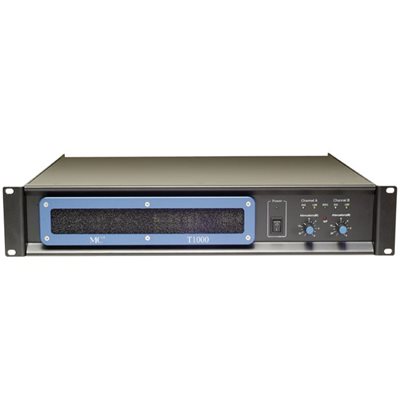

Designed for use in a variety of applications in the 70V/100V fixed installation market, where sonic quality and reliability are the highest priorities, the high performance T500-T & T1000-T use complimentary AB bipolar output stages, combined with the unique MC current driven floating drive stage and conventional analogue level controls.

The sound quality is maintained over a very wide range of load and temperature conditions. Sophisticated “side-chain” limiters prevent distortion and speaker damage, but are out-of-circuit until the onset of clipping. The control circuitry provides full protection against short circuits, DC and excessive temperature together with inrush current limiting and delayed “turn-on”.

MAIN SPECIFICATIONS:

• • • Output Power • • •
2 x 420 W • 70V
2 x 600 W • 100V


• • • Frequency Response • • •
20 Hz to 20 kHz (+/- 0.3dB)

• • • Damping Factor • • •
> 400 (8 Ohms / 1 kHz)

• • • Signal / Noise Ratio (SNR) • • •
Better than 104 dB (unwtd, 22 Hz - 22 kHz)

• • • THD % (@ 1dB below max output power) • • •
< 0.008% @ 1kHz
< 0.03% @ 20 Hz to 20 kHz

• • • Power Consumption • • •
Nominal @ 240V into 4 Ohms 1.9A

• • • Dimensions (HxWxD) / Weight • • •
88 (2U) x 482 x 428 mm / 15.3 kg
