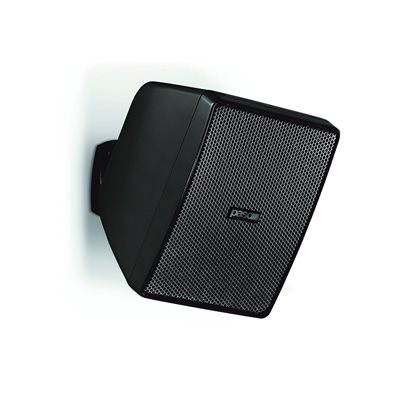

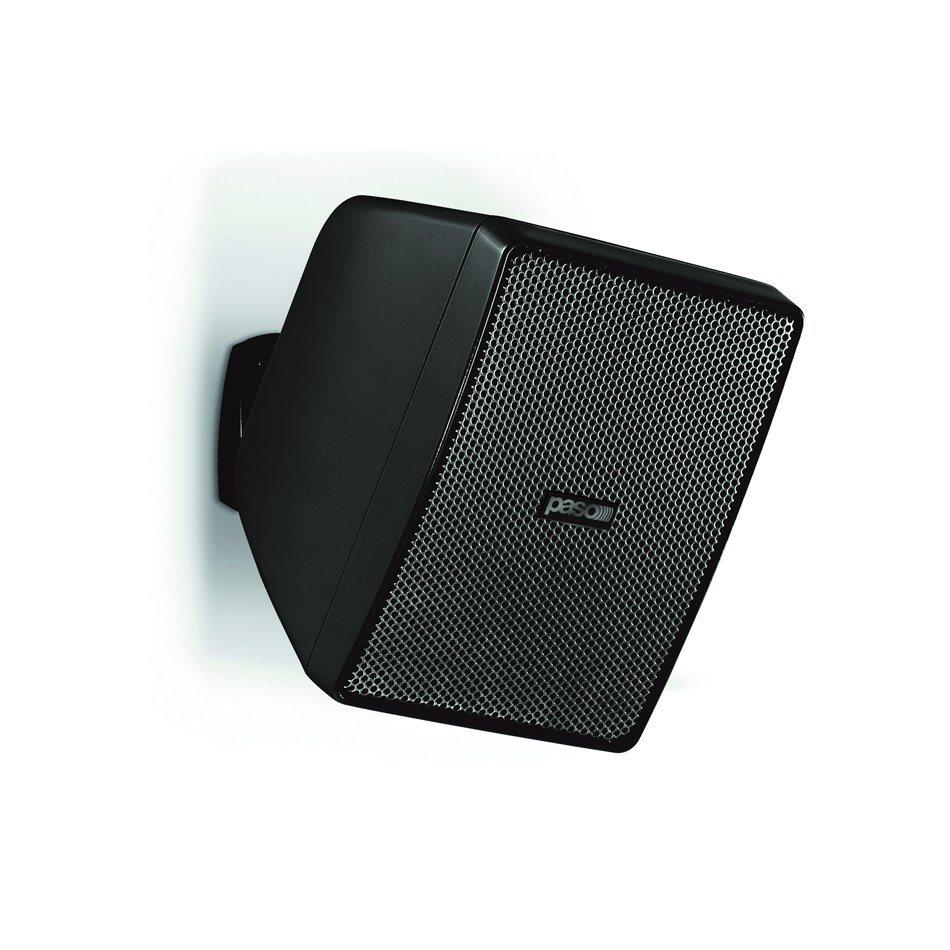

PASO 5" Outdoor Projector

50W@100V, EN54-24

IP55,black, incl. u-bracket

Art. Nr:
C1050-EN

UVPCHF290.00
Beschreibung

The C1000-EN range is suitable for all installations where high intelligibility of alarm messages and excellent sound reproduction are required. All speakers of the new C1000-EN range feature an IP55 and, due to their structure made of self-extinguishing polypropylene with UL 5VB flammability rating, are now certified according to EN54-24 standard. All models of the series have a ceramic terminal block and thermal fuse installed inside to guarantee the protection of the loudspeaker connection line in case of fire. Moreover, all connections consist of fire retardant wires that comply with EN50200 standard (with IP68 hermetically sealed cable gland). The C1000-EN range was designed primarily to provide extreme water resistance. Therefore the metal protective grid was also designed to meet this requirement. The grid consists of three layers with an external stainless steel perforated metallic part treated with a special protection, a central layer with cross-linked foam and a layer formed of a special waterproof polyester mesh. Curves and rounded edges of these speaker reduce acoustic reflections and standing waves inside the box, improving low-frequency performance; they also keep water from settling on the covering and wind diffraction.


Main features

• 2 way configuraton with an high power 5” cone and 1” dome for high frequencies.
• 100V line transformer with selectable 50W/25W power tapping.
• Die-cast aluminum wall bracket with ball/ socket for multiangle adjustment capability, with a security cable.
• 4 wires cable to select the desired power tapping.
• Stainless steel water-stop grille with 3 layers of protection.
• IP55 weather resistant.
• Standard black finish.
