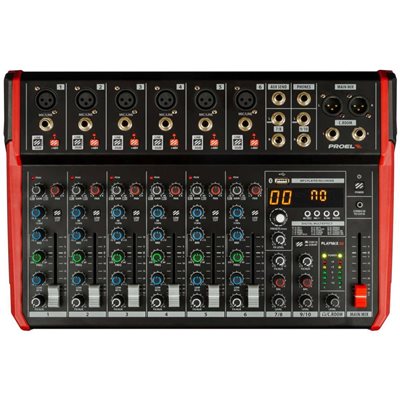

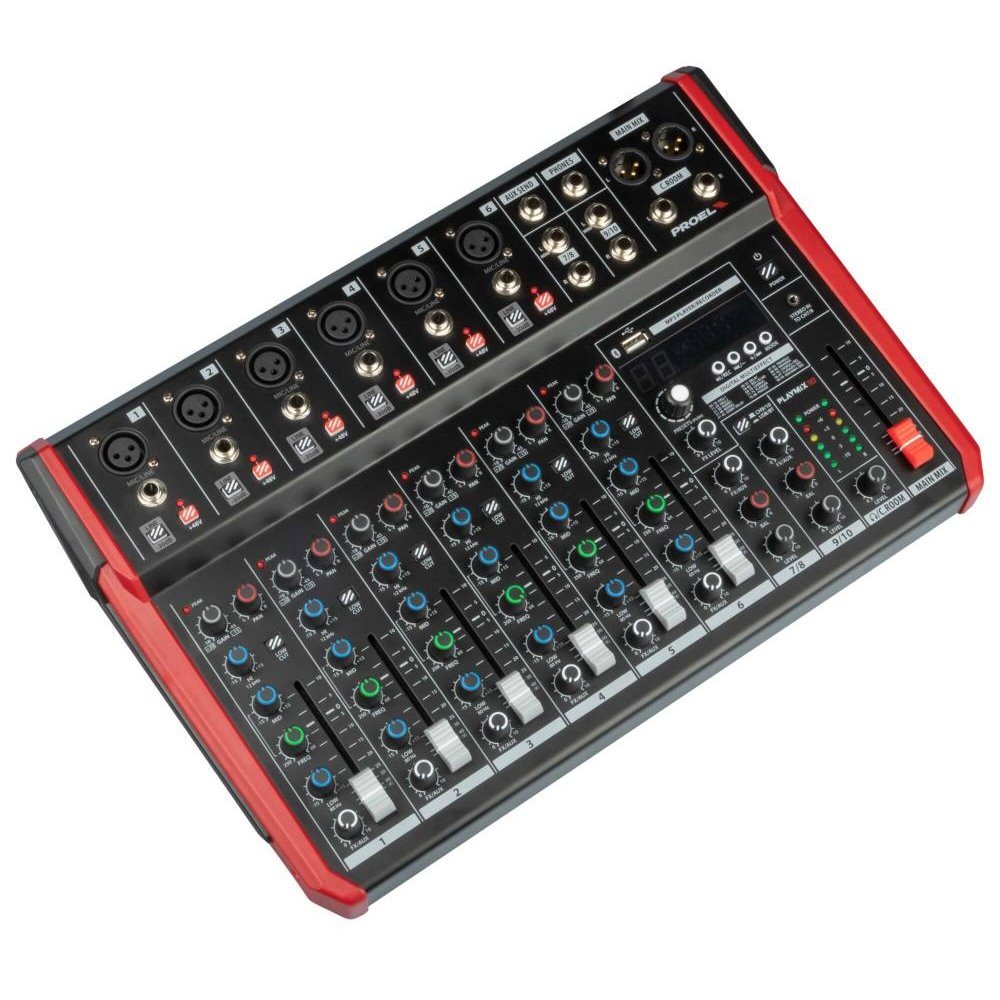

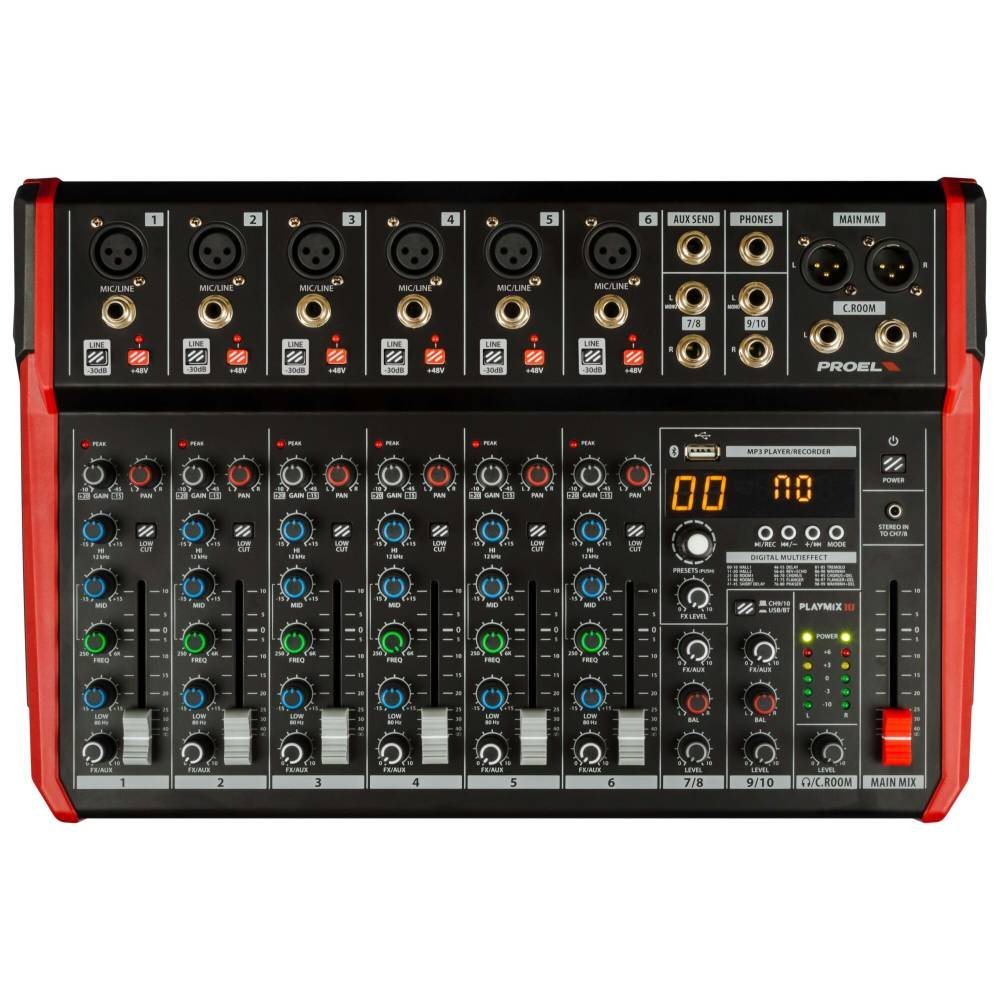

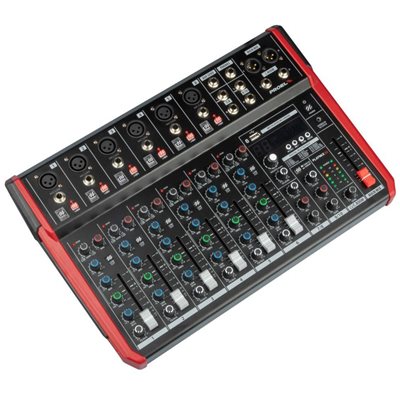

PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

All models feature an advanced DIGITAL section with LCD display, including:

- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)

- A 48KHz stereo USB audio interface for playing/recording thru PC connection

- A built-in MP3 player from USB memory key or BLUETOOTH interface

- On-the-go stereo recording on USB memory key

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.




TECHNICAL SPECS


MONO INPUT CHANNEL
Mic Input sensitivity: from -10 to -45 dB / Balanced XLR-F / impedance: 1 Kohm
Line Input sensitivity: from +20 to -15 dB / Balanced JACK / impedance: 20 Kohm
Lo cut: 80Hz, 6dB/oct.
EQ: HIGH (shelving) ±15 dB @ 12K Hz / MID (peaking) ±12 dB @ 250-6K Hz / LOW (shelving) ±15 dB @ 80 Hz

STEREO INPUT CHANNEL
Line Input: sensitivity from +12 to -15 dB / Balanced JACK / impedance: 20 Kohm / Stereo Mini JACK

MASTER SECTION
MAIN MIX nom. out level: +4 dBu balanced XLR-M
C. ROOM output nom. out level: +4 dBu balanced JACK
SEND output nom. out level: +4 dBu unbalanced JACK
HEADPHONES impedance: 64 ohm Stereo JACK
Bluetooth: Version 5.0, Audio Streaming
USB Audio Interface: Stereo IN/OUT, 16-bit converter, 44.1 KHz sample rate, Type A

DIGITAL EFFECT PROCESSOR
Effects: 100 presets
A/D and D/A converters: 24 bit
DSP resolution: 24 bit
Controls: 2-DIGIT display, DIAL, LEVEL

GENERAL SPECIFICATIONS
Maximum level at all outputs: +15 dBu
Crosstalk meas. at 1 KHz: > 75 dB
HUM & Noise unweighted: < 90 dB
THD + Noise at +4dB, 1kHz < 0,009 %

POWER REQUIREMENTS
Power Supply use only supplied AC/DC ADAPTER 5VDC 1A
Mains Supply Voltage: 100-240 VAC (±10%) 50/60 Hz
Consumption: 15 W
