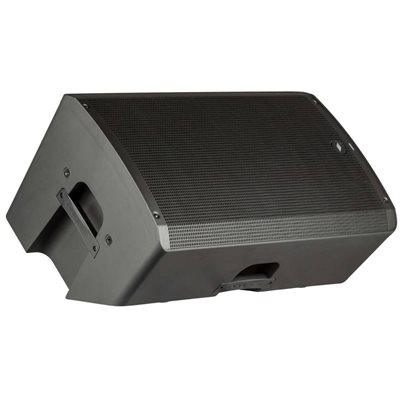

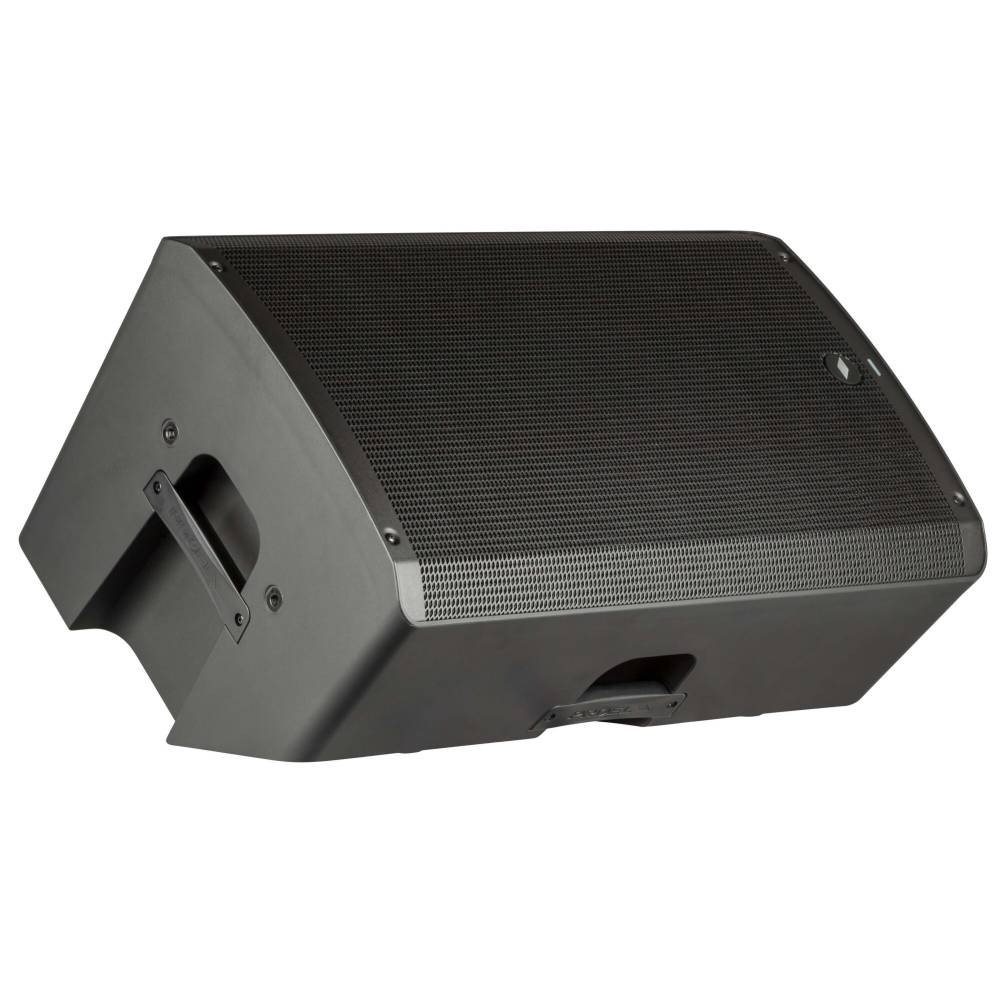

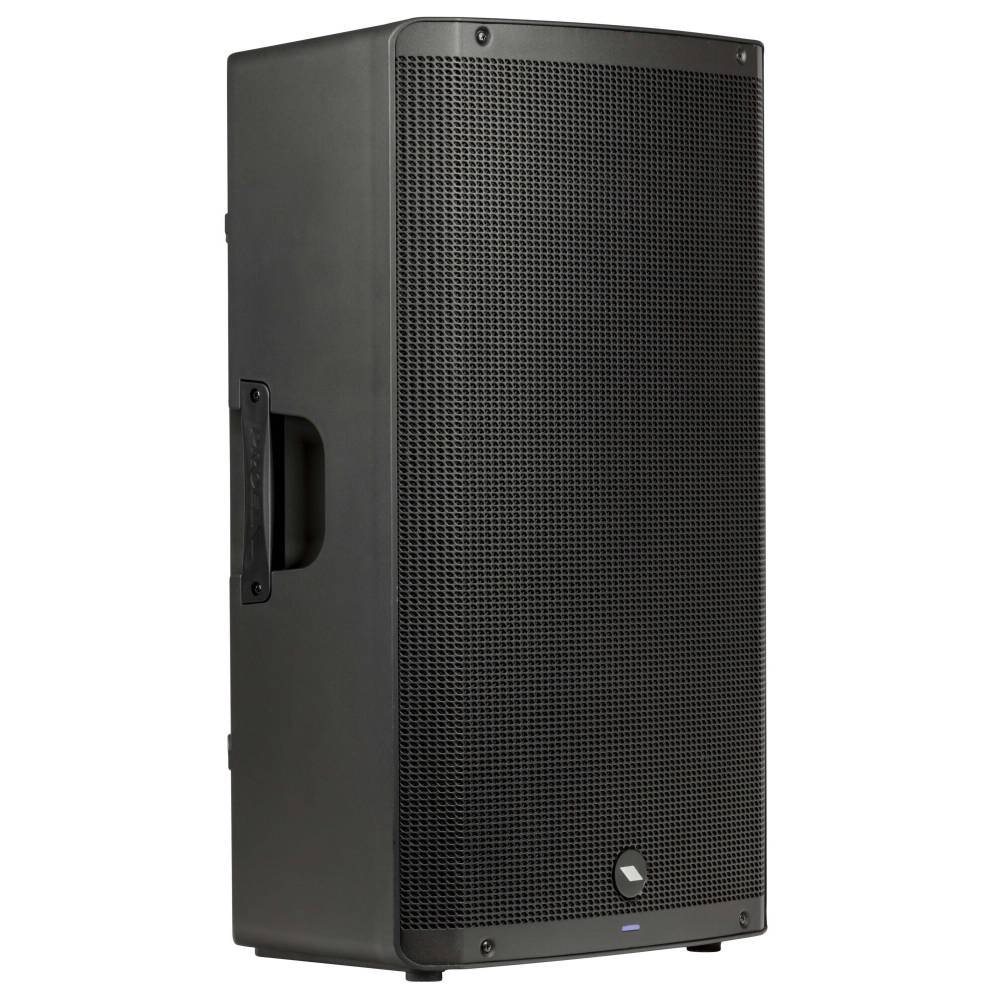

DIVA12A and DIVA15A are digitally processed active loudspeaker systems featuring multiple inputs and a versatile BLUETOOTH connectivity.
Hosted in lightweight yet ultra-durable polypropylene cabinets with ergonomic handles, they combine selected transducers driven with a powerful 1000W CLASS-D amplifier with SMPS, featuring high headroom and an accurate dynamic control for the maximum undistorted output power. The sophisticated pre-amp section includes an advanced processing with high-performance DSP engine and linear phase FIR filters, for a very smooth response and high-definition sound.
An intuitive user’s interface with LCD color display and single-knob control is available for a quick selection and display of the 5 available EQ presets (MUSIC, LIVE, DJ, MONITOR, SPEECH), allowing the speakers to be perfectly adapted to any kind of application.
Thanks to the built-in 3-channel mixer with MIC/GUITAR/LINE input selection, HIGH and LOW EQ controls and two WIRELESS USB inputs for the use of PROEL U24 microphone systems, the DIVA12A and DIVA15A can be used in a variety of applications also without external equipment.

The BLUETOOTH interface allows to reproduce audio in mono streaming with a single speaker or in stereo streaming with two speakers and the STEREO LINK (TWS) function.



TECHNICAL INFO

• 2-way active processed loudspeaker system

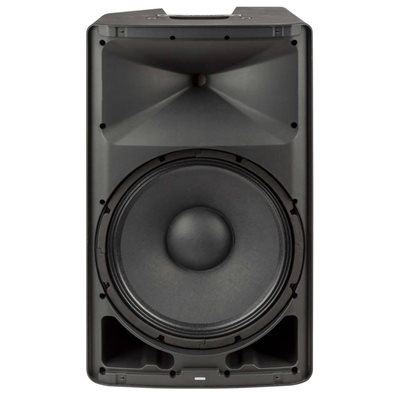

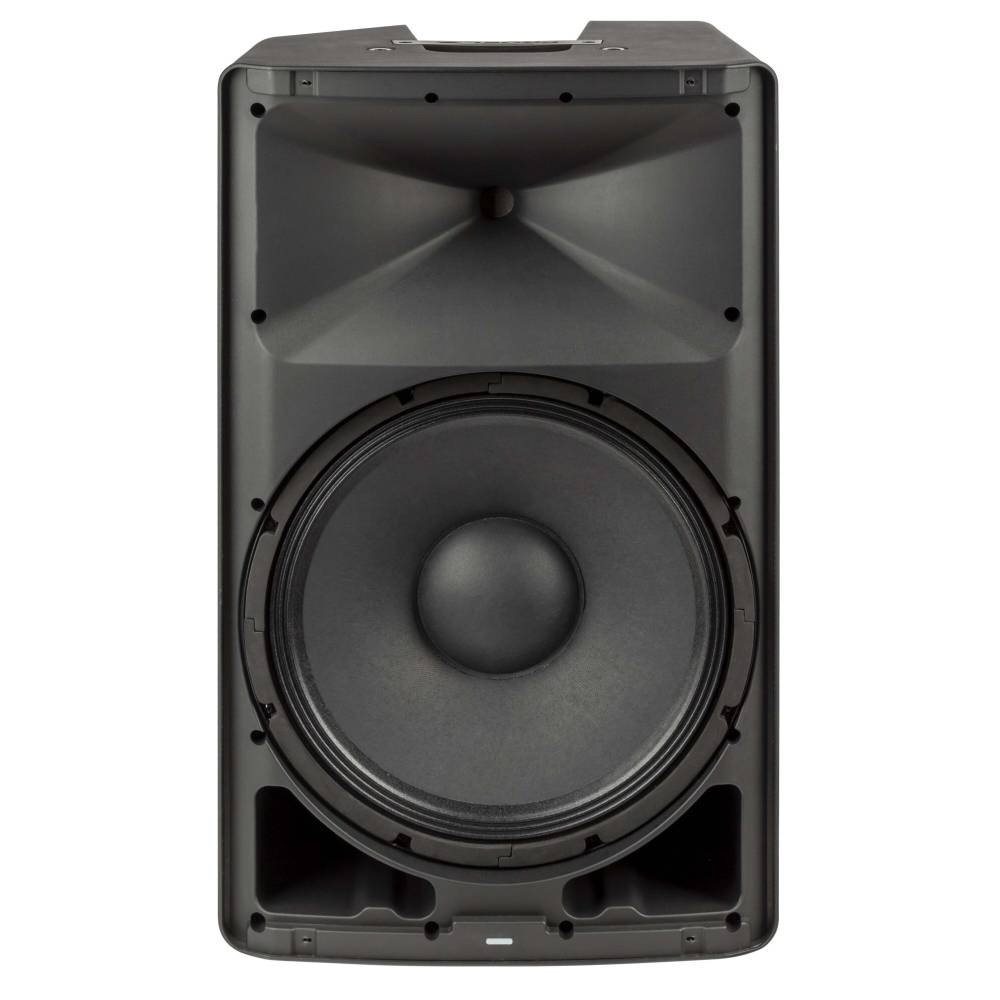

• 1” high-definition compression driver with 1.35” VC and titanium diaphragm
• Wide-coverage 90° x 60° constant directivity horn
• 15” long-excursion woofer with 2.5” voice coil
• High-efficiency 1000 W peak Class D power amplifier with SMPS

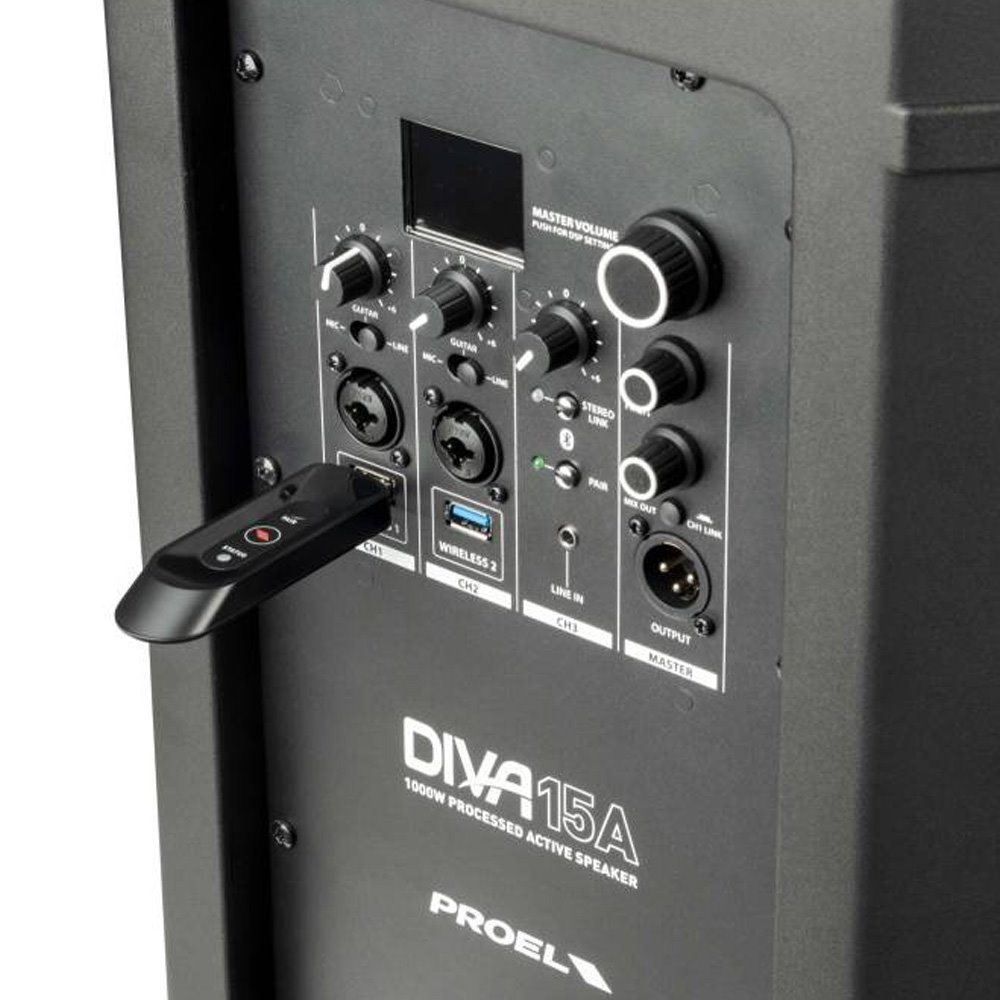

• Built-in 3-channel mixer with MIC/LINE inputs and HIGH & LOW EQ controls
• High-definition DSP with 24-bit converters and FIR filters
• 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
• BLUETOOTH audio interface with STEREO LINK
• Color LCD display for the DSP editing
• SPL MAX: 129 dB
• Frequency response: 45 Hz - 20 kHz
• Lightweight, compact and ultra-durable PP cabinet
• 2 ergonomic handles for effortless transportation
• Slanted shape for the use as a stage monitor
• Four M10 flying points


ZUBEHÖR / OPTIONEN:

• Handsender-Mikrofon und USB-Empfängerstick
• Headset/Taschensender und USB-Empfängerstick
• DIVA12A Subwoofer
