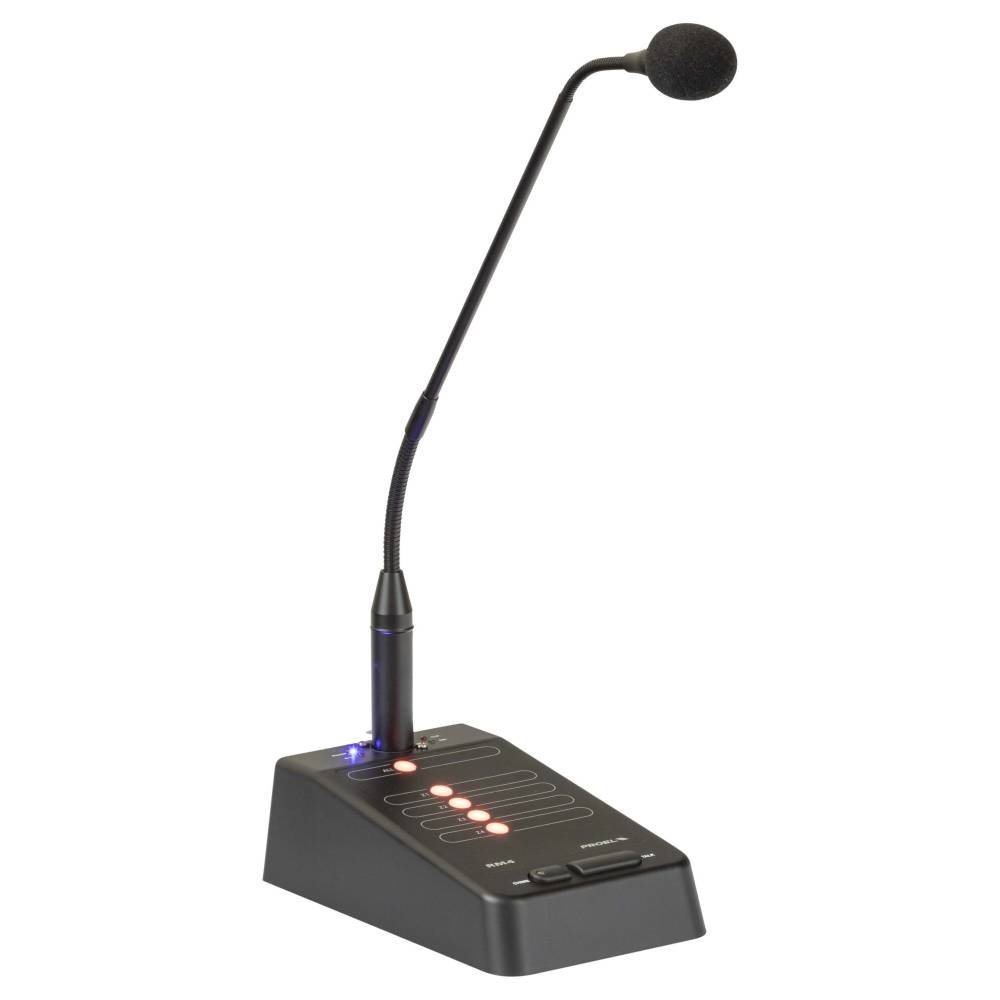

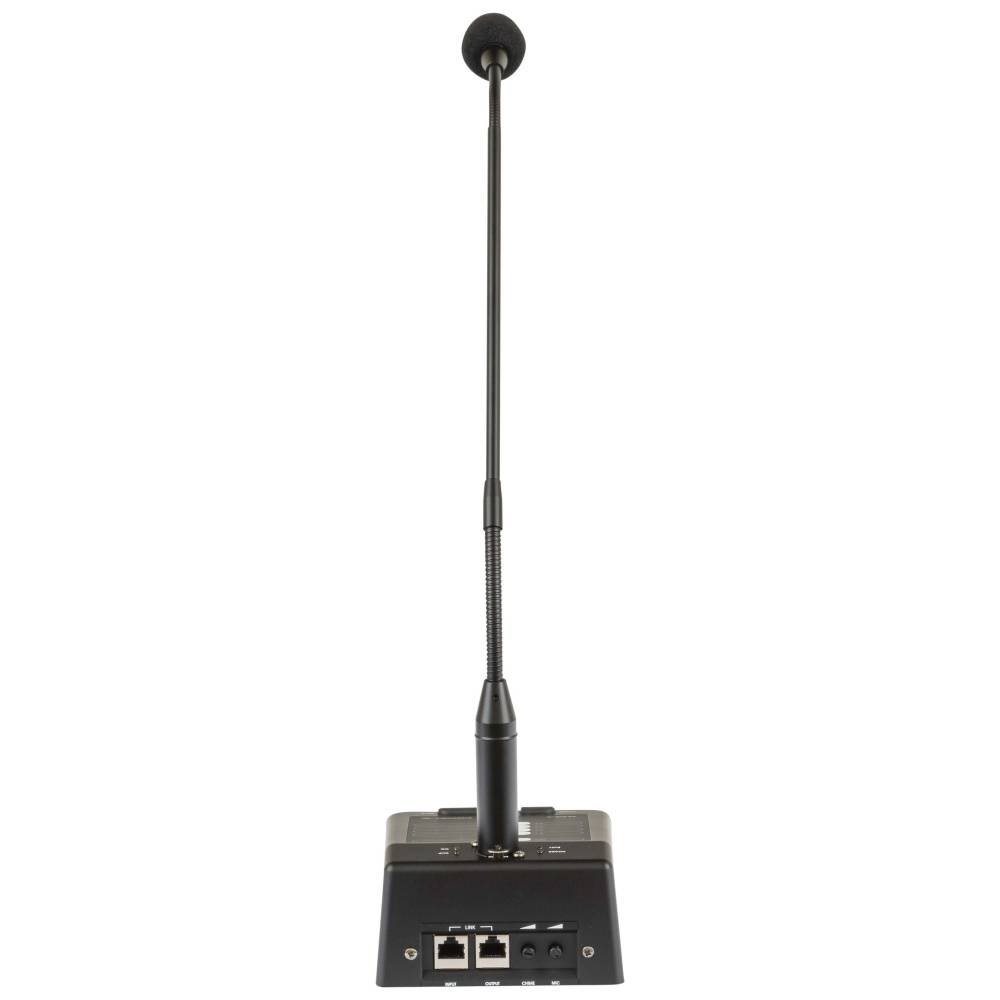

Paging Base for announcement on 4 zones designed to be used with the ATMP240ZXL amplifier. Makes the microphone call on individual zones or in general.


FEATURES

• ALL button for general announcement selecting
• Zone keys for selecting each individual zone or groups of zones
• TALK key for making the voice announcement
• Lights indicator
• CHIME key to activate / deactivate the attention tone



TECHNICAL SPECS

Controls:
• ALL ZONES BUTTON
• 4x ZONE BUTTONS
• 1x CHIME BUTTON
• 1x CHIME LEVEL
• 1x TALK BUTTON
• 1x MIC LEVEL

Frequency response: 60Hz ÷ 18 kHz (-3dB)
Distortion (THD): < 0.5% (@ Pnom 1KHz)
S/N Ratio: MIC: =70dB
Power Supply +/-15VDC (RJ45)
Dimensions (WxHxD): 120 x 66 x 198 mm
Weight: 0.5 Kg
