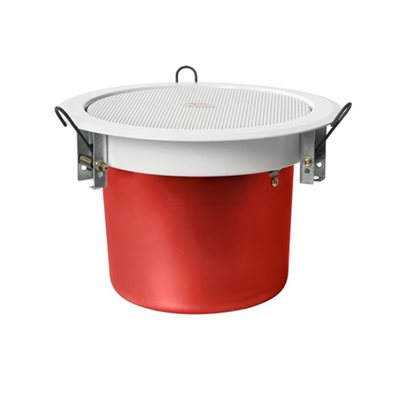

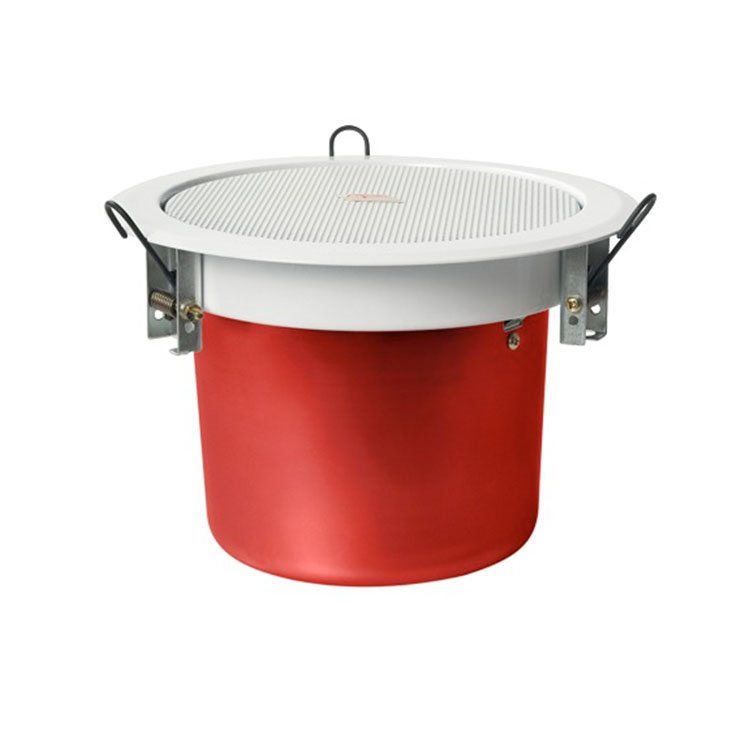

CS6TALEN - Metal ceiling speaker with anti flame cover.

Designed for flush-mounting ceiling installation. It features 6.5’’ speaker. This speaker has been developed for excellent audio quality and is suited for alarm message diffusion. The supporting structure is in steel and it has a flame resistant cover in iron., ceramic wiring clamps, thermal fuse, heat resistant internal wiring and earth wiring. Power 12/6/3W 100V.


TECH DISCRIPTION:

• Model CS6TALEN
• Type: Ceiling Speaker
• Speaker/s: 6.5” full range
• RMS power: 12/6/3W
• Constant voltage binding: 100/70V
• Frequency response: 100Hz -20KHz (-10dB)
• SPL (1W/m): 90 dB
• SPL MAX (Pmax @ 1m): 100 dB
• Coverage Angle 1KHz/4KHz (-6dB): 150º / 95º
• Construction materials: Iron
• Colour: White (RAL 9010)
• Dimensions (W x H x D): Ø 220 - H 150 mm
• Weight: 1.6 kg (3.528 lb)
• Fixing system: Recessed ceiling
• Mounting Hole: Ø 205mm
