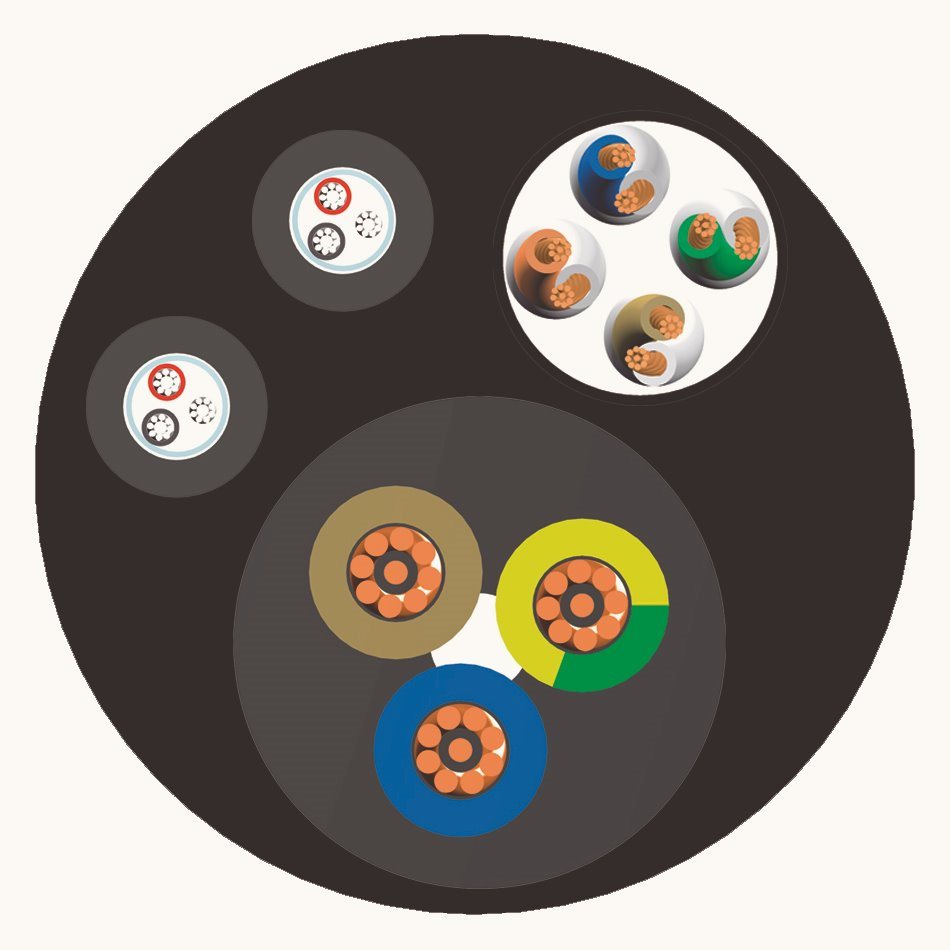

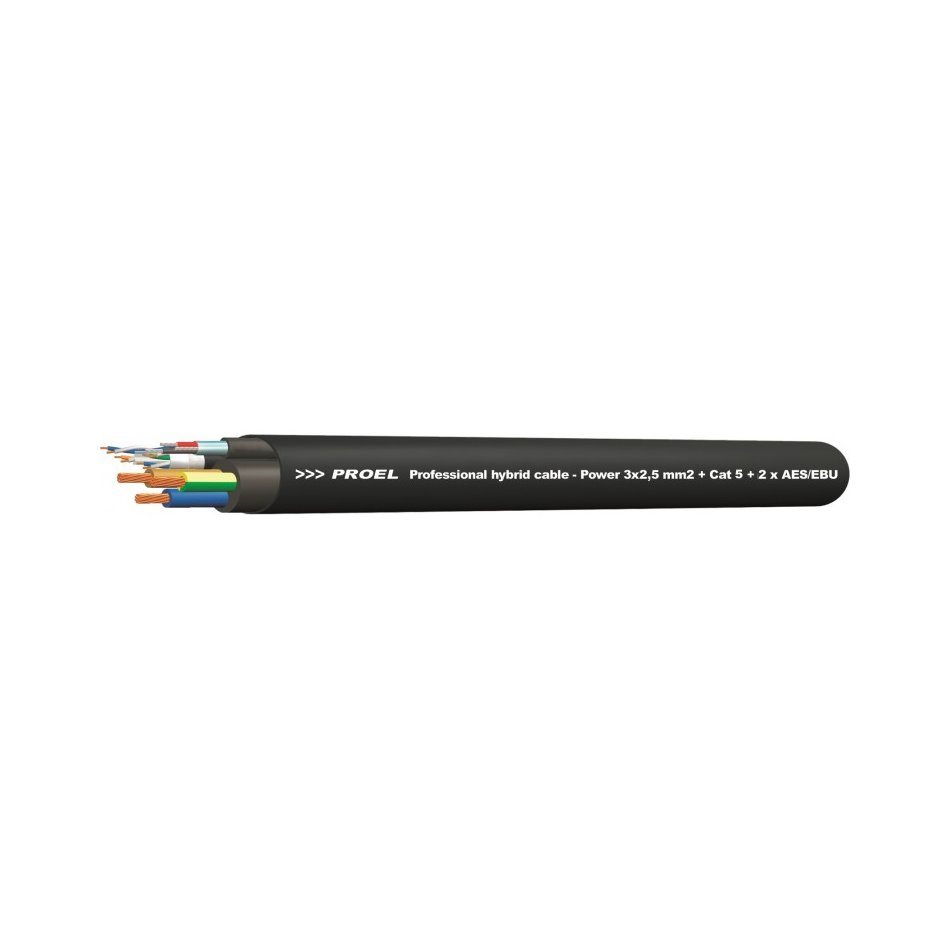

New professional hybrid cable, combining two aluminum-maylar foil shielded digital audio AES/EBU 110 Ohm pairs (compatible with the analog signal) and a CAT. 5e S-FTP cable with double shielding made of aluminum-mylar foil, a tinned copper braid and a 3x2.5 mm2 power cable. The four inner cables are individually insulated and the outer sleeve is manufcatured from soft PVC.


Technische Daten:

Application fields: Control DMX Lighting console / Self powered loudspeaker / Mobile application
Conductors: Cat. 5e S-FTP: 24 AWG = 7 x 0.20 mm (0.22 mm2)
Audio pairs: 24 AWG = 28 x 0.10 mm (0.22 mm2) Bare copper
Power: 16 AWG = 50 x 0.254 mm (2,50 mm2)
Insulation: Cat. 5e S-FTP: PVC Ø 7 mm
Audio pairs: PVC Ø 2.70 mm
Power cable: PVC Ø 9.1 mm
Shield: Cat. 5e S-FTP: Alu-mylar foil 100% - Tinned copper braid 80%
Audio pair: Al-mylar foil 100%
Jacket: Soft PVC compound Ø 20,50 mm - Colour: Black
Electrical resistance: Audio pair: 88 Ohm/Km (conductor) @ 20°C
Electrical capacitance: Audio pair: 48 pF/mt (cond./cond.) @1 KHz

Working tension:
Audio pair: < 50V AC -< 75V DC
Power: 300/500 V
Operating temperature: -20°C/+70°C
Weight: Kg/Km
Minimum bending radius: 25 mm
Packaging: 200 m wooden reel
