EFFECTS

• Hazer effect

CONTROL AND PROGRAMMING

• 1 DMX channel configuration: 2 channels
• Fan’s speed adjustable via DMX
• Protocol USITT DMX 512

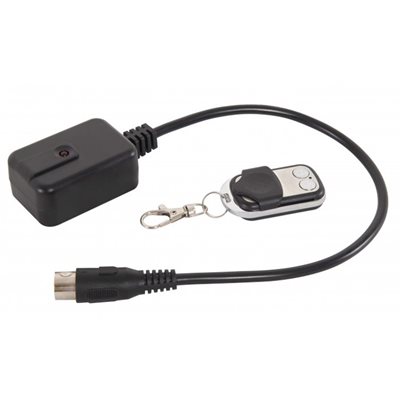

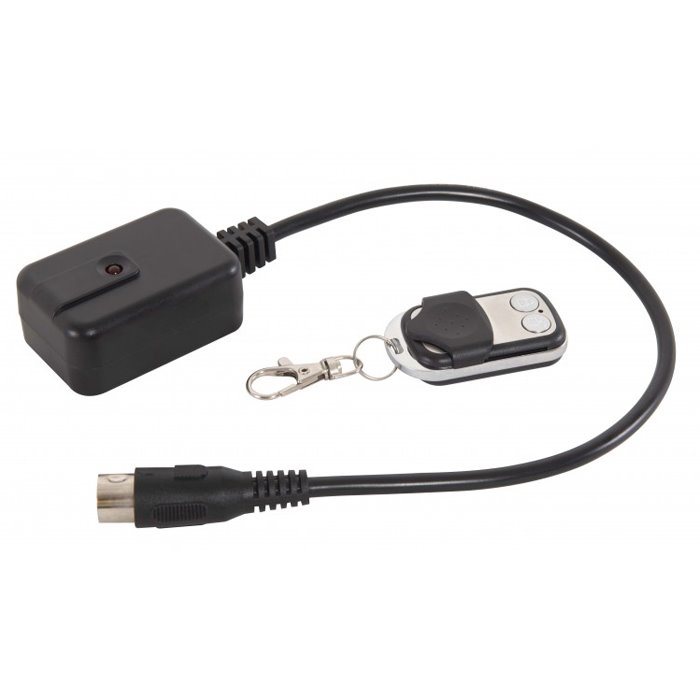

• Radio remote controller included
• Heating time: 2 mins
• Smoke output: 1300cuft
• Continue output
• Manual mode adjustable via display

STRUCTURE AND CABINET

• Metal black housing
• LCD blue graphic display
• Led indicator for heating and ready to smoke
• High performance pump for optimal emission
• High speed fan

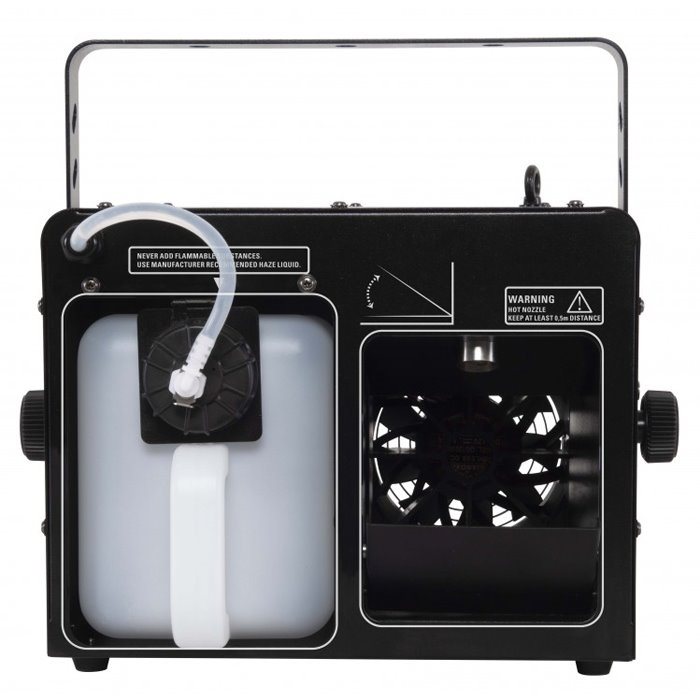

• External tank: 3 litres

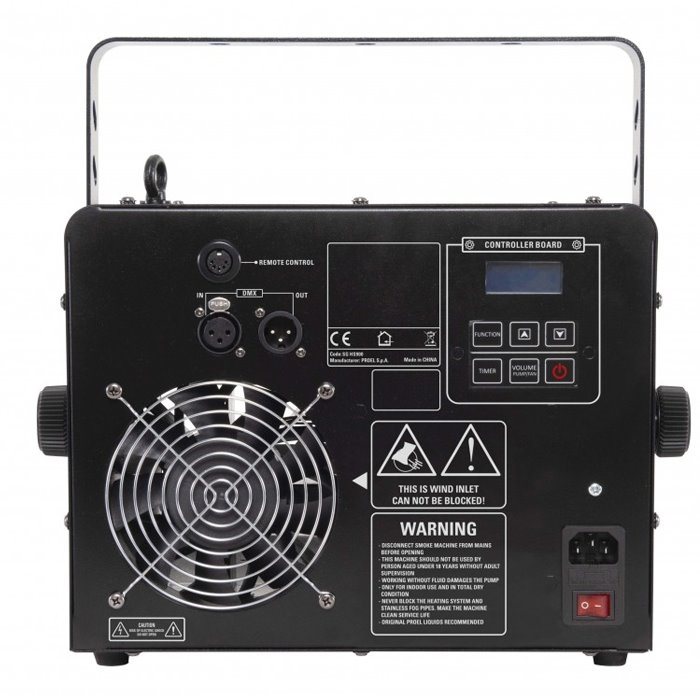

• 3-poles XLR in/out connection
• IP rating: IP20
• For best applications and correct function we recommend using Sagitter fluids

POWER SUPPLY

• Input Voltage: AC~230V, 50Hz
• Max Power: 650 W @ 230VAC
• IN power connection with VDE sockets
• Power supply cable 1,5 mt included

WEIGHT AND DIMENSIONS

• Net weight: 7,3 kg
• Dimensions: 357x335x323 mm
