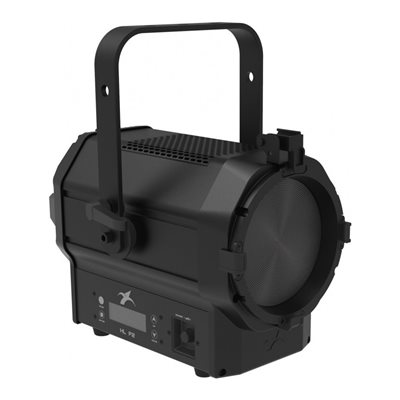

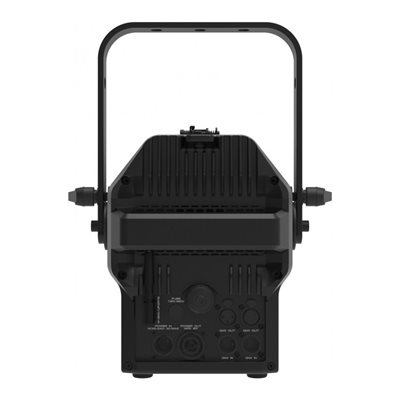

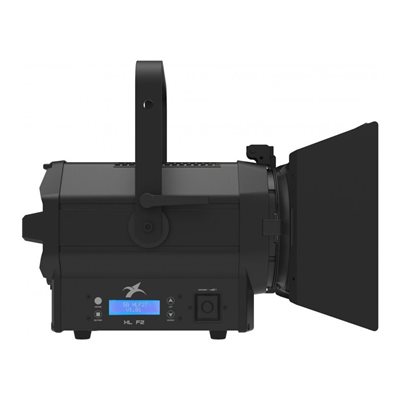

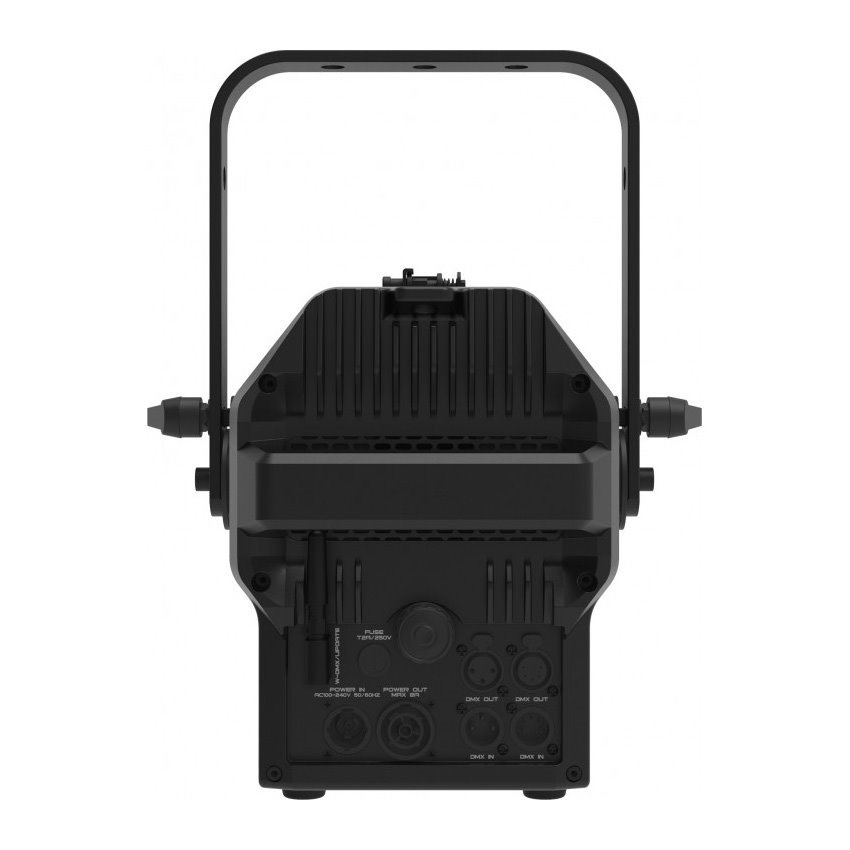

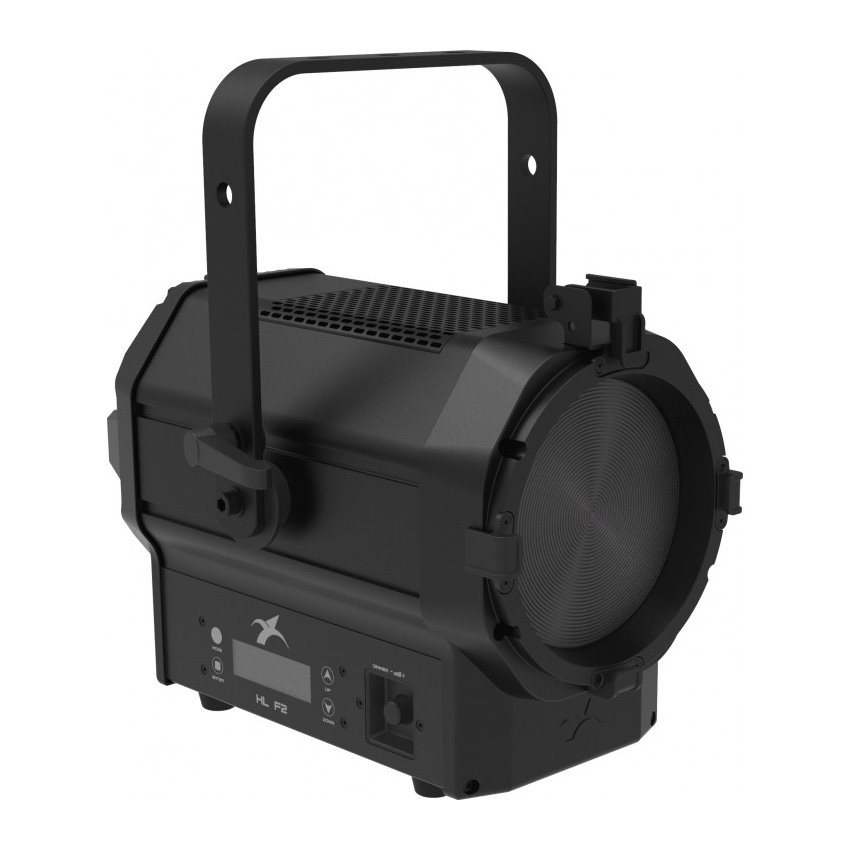

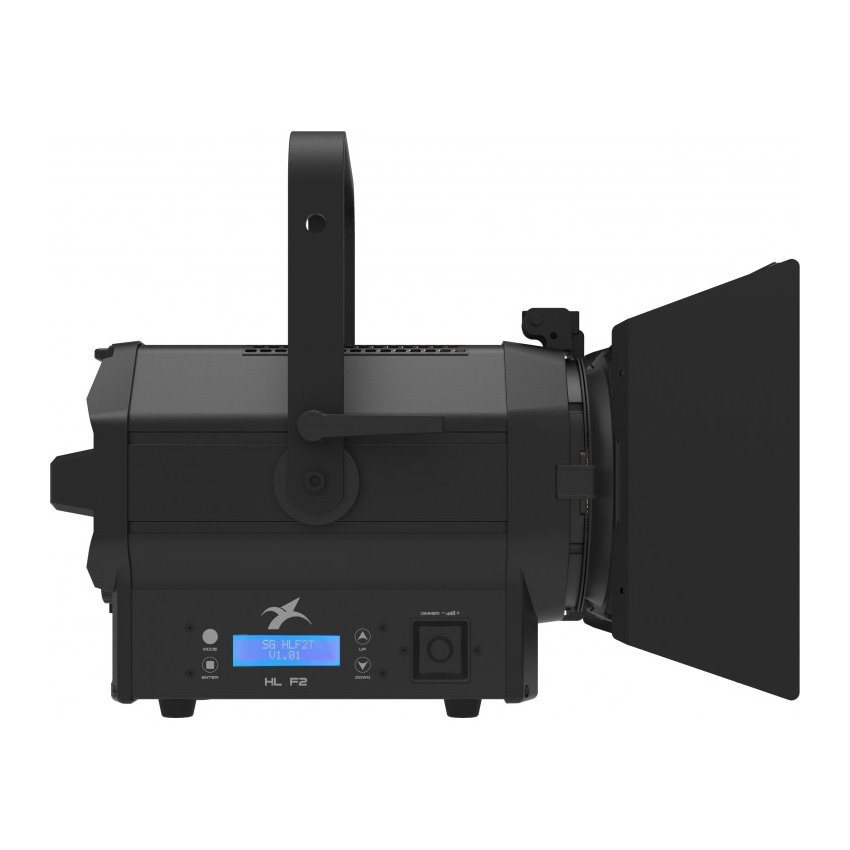

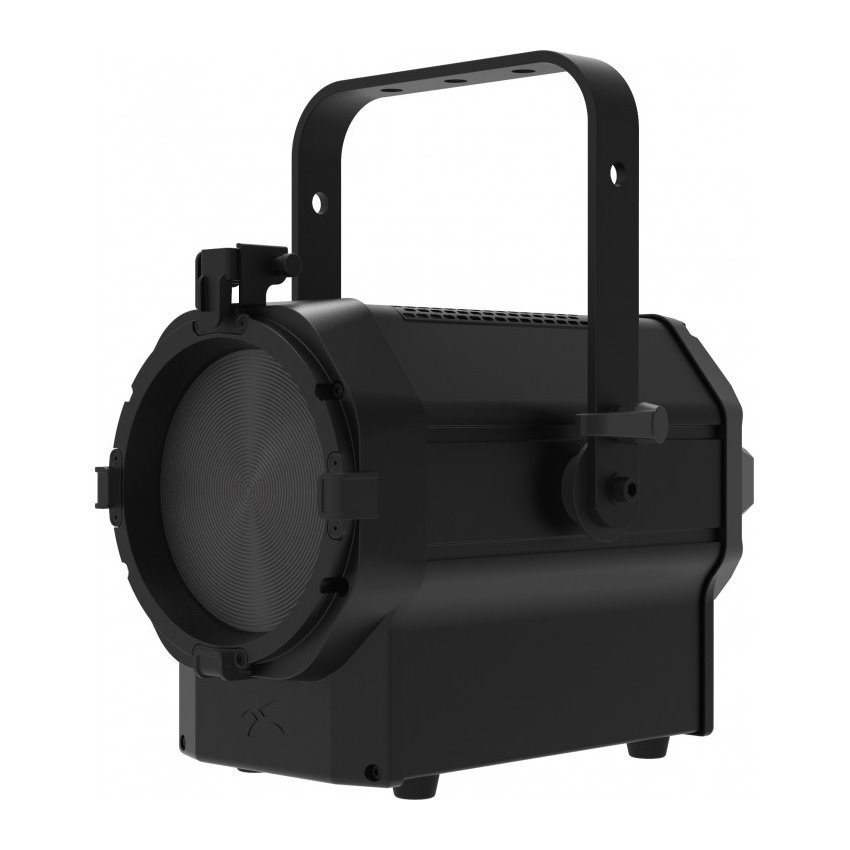

HL Fresnel F2 Tungsten • Theater Projector with warm white light


LIGHT SOURCE
• 1x130W Led COB Warm white 3000K
• CRI = 95 Ra
• LED lifespan: > 50.000h
• LED refresh frequency: adjustable from 900 Hz to 20 KHz. Anti flicker

OPTIC SYSTEM
• Beam Angle: manual zoom from 13° to 36°
• Field Angle: manual zoom from 20° to 47°
• Illuminance: 5115 Lux @ 5mt (13°)
• Illuminance: 1059 Lux @ 5mt (36°)

COLOR SYSTEM
• Warm White 3000K COB LED Source

EFFECTS
• Linear dimmer 0-100%
• Independent adjustment of dimmer with external knob
• Adjustable Strobe
• 4 Dimmer curves available (Linear / Square / I-Square / S-Curve)
• 2 Dimmer mode selectable (LED / Halogen)

CONTROL AND PROGRAMMING
• 5 DMX configurations available: 1/2/2/4/5 channels
• Protocol USITT DMX 512
• Manual dimmer mode controlled by independent knob or by display

STRUCTURE AND CABINET
• Aluminium housing black color
• New PMMA fresnel lens
• LCD blue graphic display
• Mounting points: single bracket
• Rotating barndoor included
• XLR 3/5-poles DMX IN/OUT connection
• USB connection for software upgrade and wireless control (order code: SG HLWDMXPEN)
• IP rating: IP20
• Electronic controlled forced air fan cooling system “low noise”
• 3 selectable fan modes
• Pan / Tilt bracket for pole control (sold separately - order code SG HLF2PLBR)

POWER SUPPLY
• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Max power: 150W @ 230VAC
• IN/OUT power connection with TrueONE sockets
• Power supply cable 1mt included
• Max 8 pcs linkable @ 230VAC

WEIGHT AND DIMENSIONS
• Net weight: 7 kg
• Dimensions: 320x383x386(h) mm (barndoors included)
