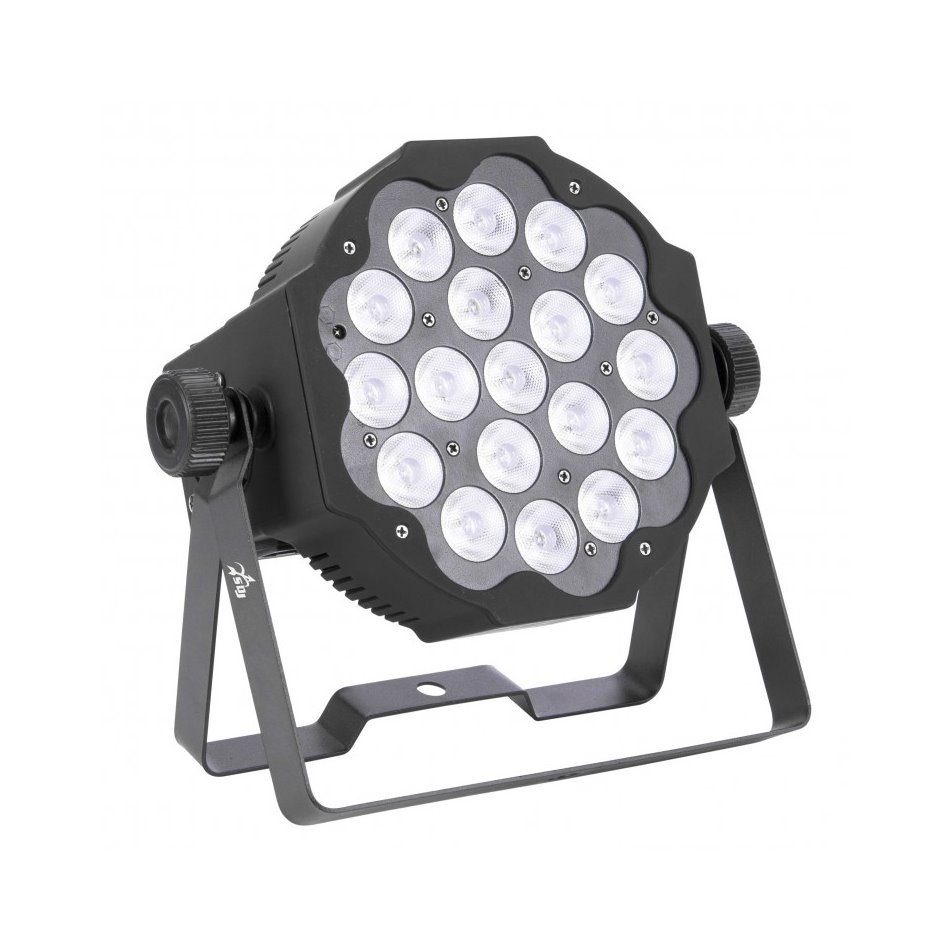

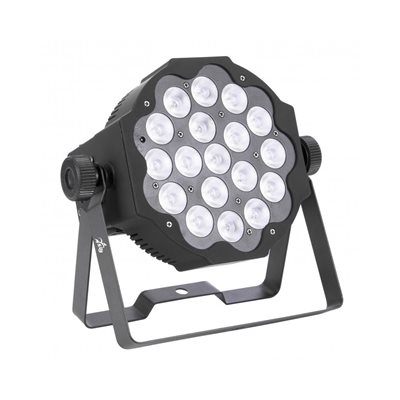

RGB-Scheinwerfer in Full Color Technik



HAUPTMERKMALE

Light source

18x3W led RGB Full Color
LED lifespan: >50.000h
LED refresh frequency: >400Hz flicker free


Optic system

Beam angle: 25°
Luminous flux: 1140 lux @5mt (25°)


Color system

LED source 3 in 1 RGB Full Color
Infinite chromatic possibilities and colour temperature control
2 color macros can be recalled by DMX


Effects

Linear Dimmer 0-100%
Electronic strobe: 1-20 flashes/s with adjustable speed


Control and programming

4 DMX configurations available: 1/3/4/7 channels
Protocol USITT DMX 512
Master / Slave mode
Sound mode with adjustable mic sensitivity
Static color mode with independent adjustment of strobe
Automatic mode with 2 different programs selectable from the display with independent adjustment of the speed and strobe
Color mode with 50 different pre-programmed color macros with independent adjustment of the strobe
IR remote controller included with possibility to recall colors or macros


Structure and cabinet

ABS housing, black color

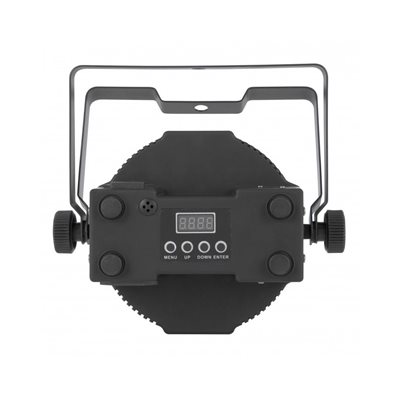

Red LED display
Mounting points: double adjustable bracket
"light up" positioning without brackets
3-poles XLR in/out connection
IP rating: IP 20
Forced air fan cooling system


Power supply

Input Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 70W
Power IN/OUT connection with VDE socket
Power supply cable 1,5 mt included
Max 6 pcs linkable @240V


Weight and dimensions

Net weight: 2,1 kg
Dimensions: 257x130x240 mm
