The QUIVER X expansion block was designed to increase the number of physical controller keys. The Expand is equipped with six faders, six button flash keys, 12 keys for direct access to playback registers, and one DMX universe through 3-pole XLR connectors. The QUIVERX expander can be easily connected to the mother console without any additional software, thanks to its dedicated cable that allows up to two expanders per console.



TECHNICAL SPECIFICATIONS QUIVER X

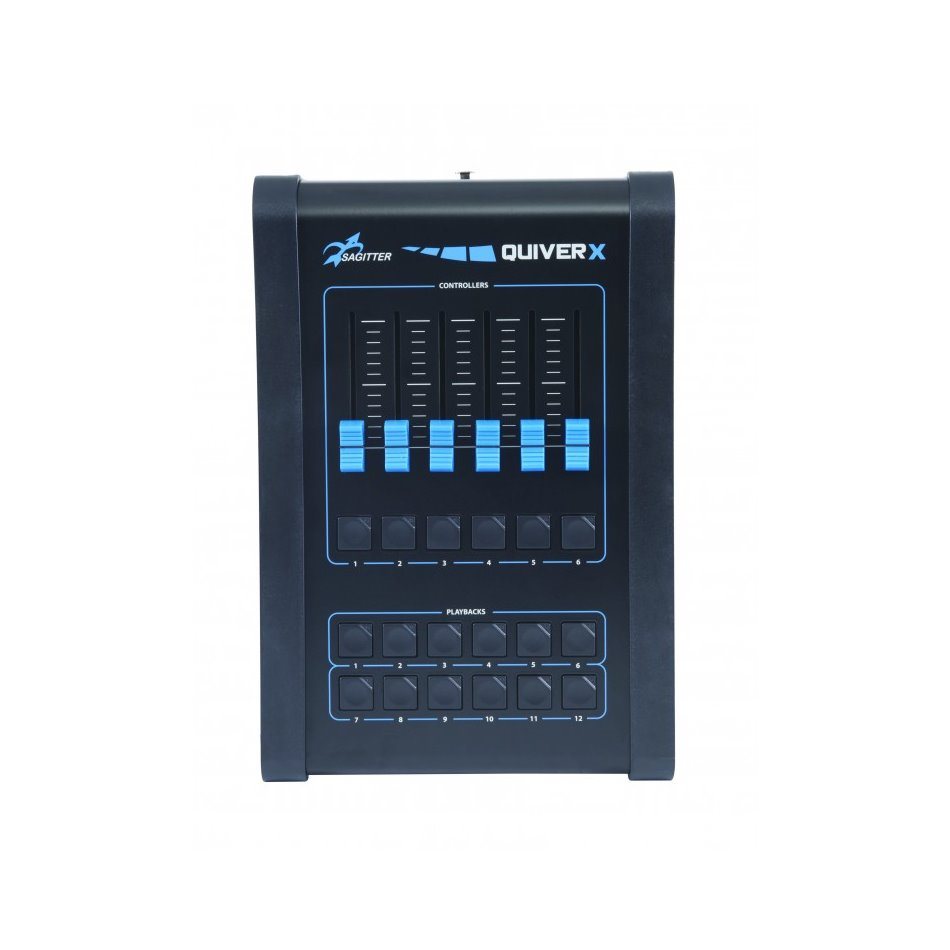

Controls

6 configurable slider as playback, master group
6 configurable key as play, flash, DBO
12 keys for direct access to playback and CUES


Description

Effective graphic interface able to easily manage programming and playback for a maximum of 144 cue-list organize in 12 pages each having a maximum of 999 cues
512 channel for each single universe DMX for the control of dimmer and/or intelligent projector, available simultaneously on XLR connector 3 poles
Up to1536 channel with Quiver Expand
Up to 36 Cue-list run concurrently (with 2 Expand connected))
“Shape engine” customizable and applicable to different functions (PAN&TILT - DIM - COLOR - GOBO - BLADE)
Up to 6 different families of "palettes" programmable for a flexible and easy control of intelligent projectors
Up to 999 Cues for each playback
Library "personalities" upgradeable, creating fixture via software for PC (included)
"Palettes" Chris/Gam/Lee and Rosco pre-program usable on all machines with mixing colors RGB or CMY
Maximum Number of storable cues to show: 999
RDM ready (Prepared for enlargement of technology)
Wireless ready (Designed for the insertion of a wireless transmitter sold separately)
External Power Supply: 100-240V 50-60Hz
USB Pendrive (included)
USB Gooseneck led light (included)
Protective cover (included)

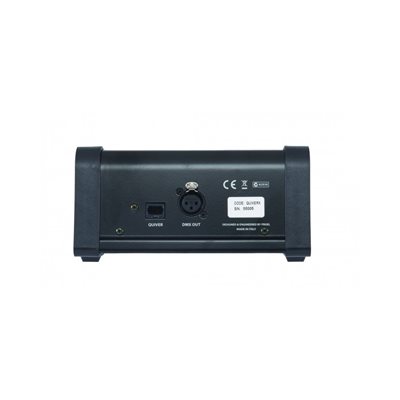

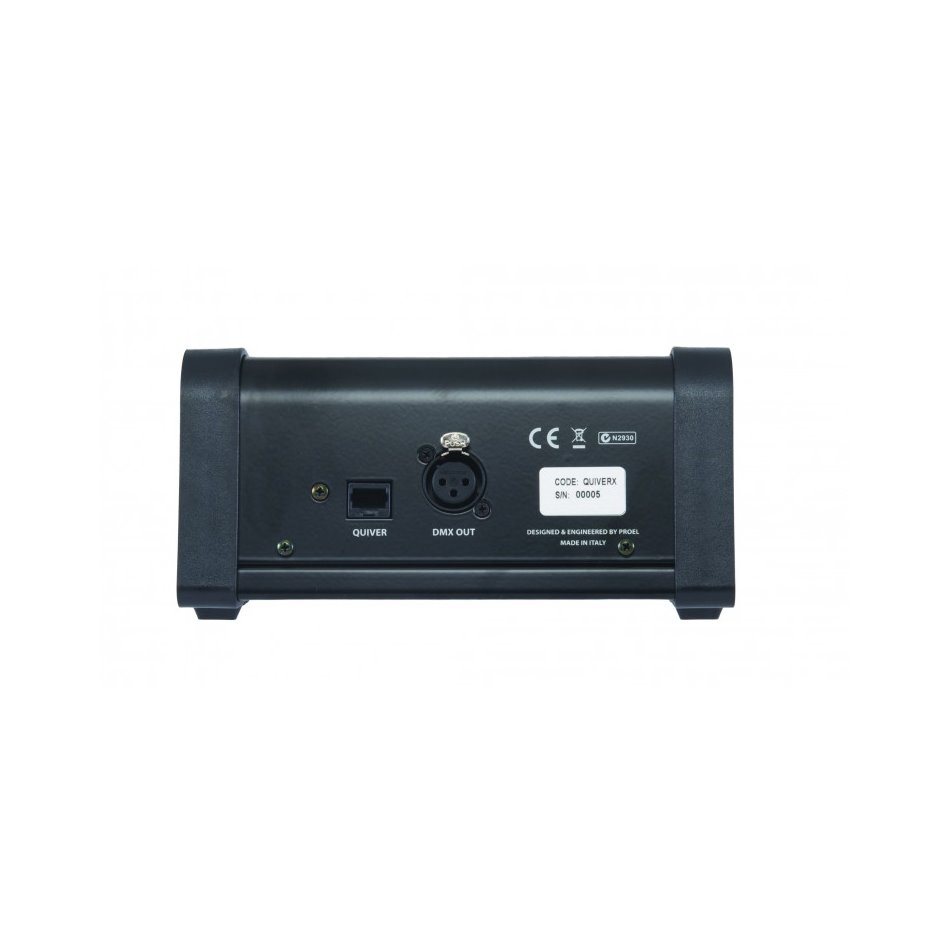

Connections

DMX out: 1x XLR 3 poles
Expand: 1x RJ45 for expansions connection to Quiver


Weight and Dimensions

Net weight: 1,4 kg
Dimensions: 196x98x288 mm
