Technical Specifications SOLPar 60 zoom

Light source

• 1x60W RGBW COB led
• LED lifespan: >50.000h
• LED refresh frequency: >400Hz flicker-free

Optic system

• Beam angle: motorized zoom from 15° to 40°

Color system

• RGBW full color mixing
• Infinite chromatic possibilities

Effects

• Linear dimmer 0-100%
• Adjustable strobe
• Color Macros selectable from DMX

Control and programming

• 4 DMX configuration available: 3/5/7/9 channels
• Key password for display settings lock
• Protocol USITT DMX 512
• Master/Slave mode
• Macro mode with 63 built-in programs selectable from the display
• Play/Edit User Mode with the possibility to run and edit 20 timed programs
• 5 dimmer curves

Structure and cabinet

• Die cast aluminum housing
• Blue LCD graphic display
• Soft touch buttons
• Tempered front glass
• “light up” positioning without brackets
• IP65 protection grade
• IP65 3/5 poles XLR in-out dmx signal connections
• Convection cooling system without fans

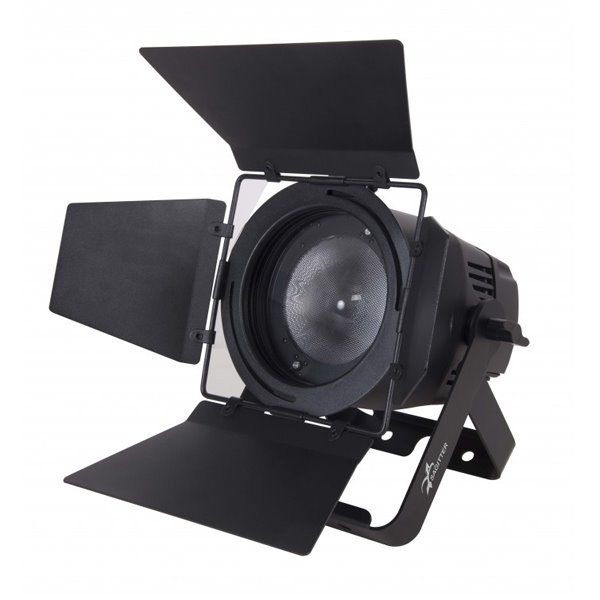

• Optional barndoor (code:SG SOLPARC150BN)

Power supply

• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Max power: 78W @ 230VAC
• IP65 Powercon True ONE in/out power connections
• Power supply cable included

Weight and dimensions

• Net weight: 5,5 kg
• Dimensions: 280x300x280 mm
