BeatDrop™ 8" commercial pendent speaker with Gripple hanging kit. 70v/100v/8O, 5-125 watts, white.

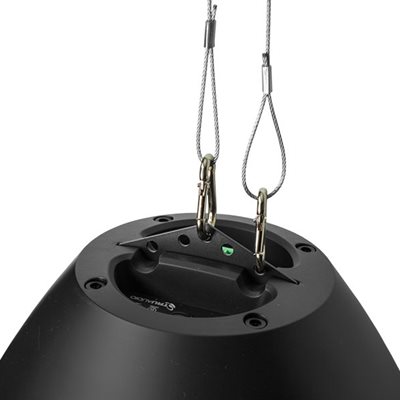

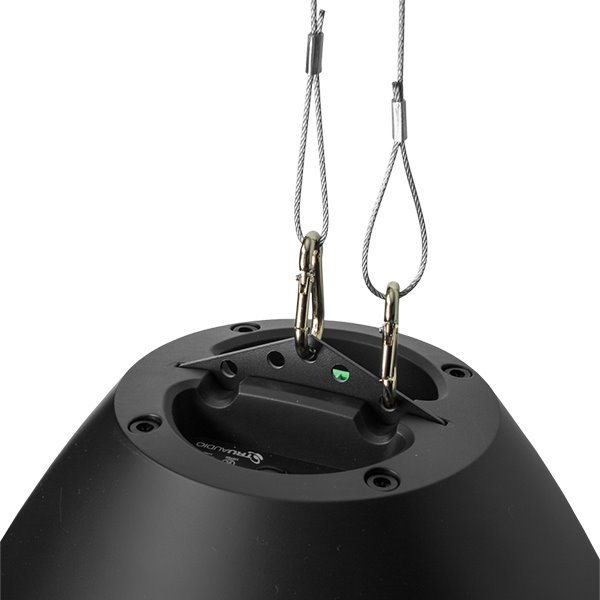

Blending innovation, modern aesthetics, and cutting edge acoustics, the BeatDrop™ series speakers are an ideal choice for rooms or venues with open architecture or high-ceilings. The BeatDrop™ is an 8-inch, two-way ported pendant speaker designed with an accurate and wide dispersion pattern. Combined with a low bass extension, the BeatDrop™ provides excellent sound reproduction. It is specifically engineered for popular commercial areas such as sport's arenas, restaurants, bars, stores, convention centers, lofts, and shopping malls. There are five tap selections for 70v/100v and an 8ohm setting, coming in black or white options. Two Gripple-brand tool-less hanging kits are included for fast and easy mounting. UL 1480 (EUAY) listed.




TECHNICAL DATAS:

COLOR: Matte Black
SPEAKER TYPE; Pendant, 2-way
TWEETER: 1" Silk soft dome
POWER: 125 watts
GRILL TYPE: Aluminum mesh
SENSITIVITY: 90 dB
IMPEDANCE: 8O or 70V/100V
FINISH DIMENSIONS: H: 12.6 (320 mm) x W: 12.3" (312 mm) x Depth: 17" (432mm)
70V TAPS: 4W-60W selectable
100V TAPS: 8W-60W selectable
FREQUENCY RESPONSE: 62-20k Hz (+/- 3 dB)
WOOFER: 8" molded polypropylene
MOUNT TYPE: Gripple with cable
