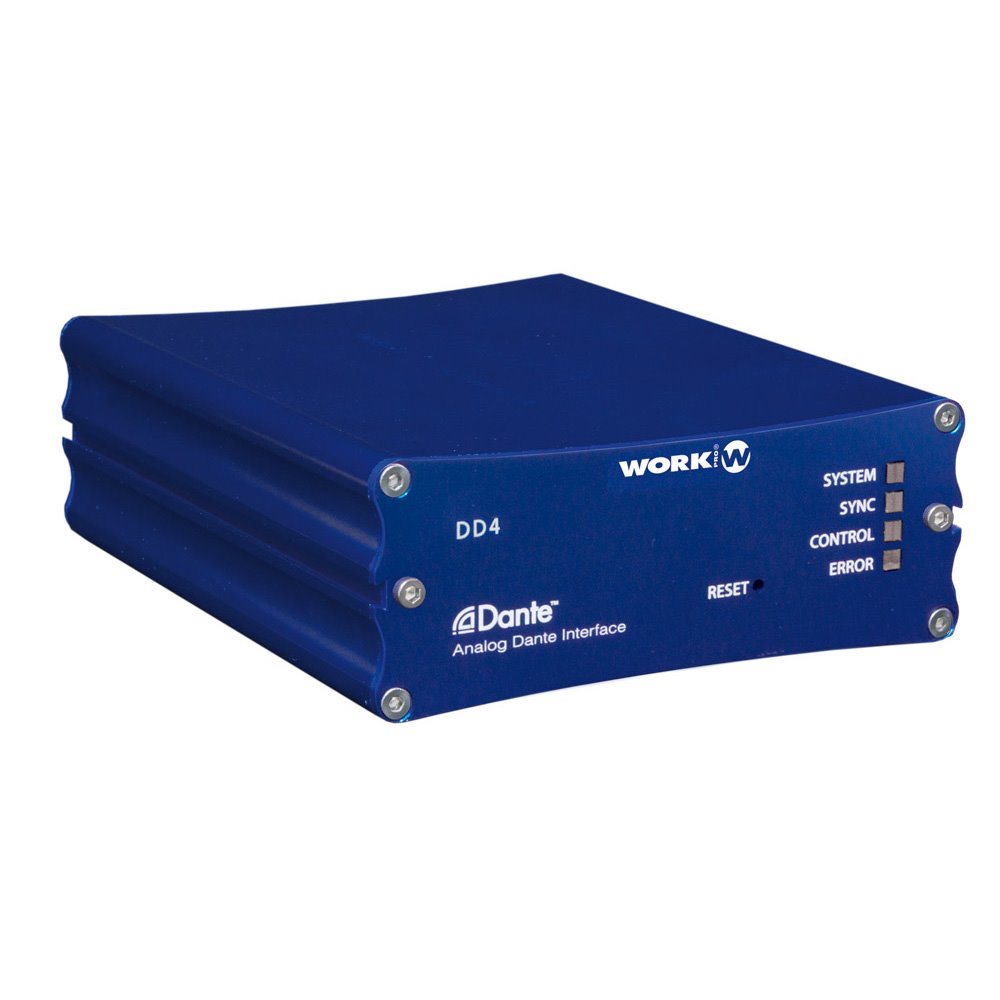

4 inputs and 4 outputs DANTE interface


DD4 devices are gateways used to convert DANTETM (Digital Audio Network Through Ethernet - developed by AUDINATE) protocol. These devices allow the extraction of analog audio signals from the DANTETM network as well as the introduction of analog channels within the same network.

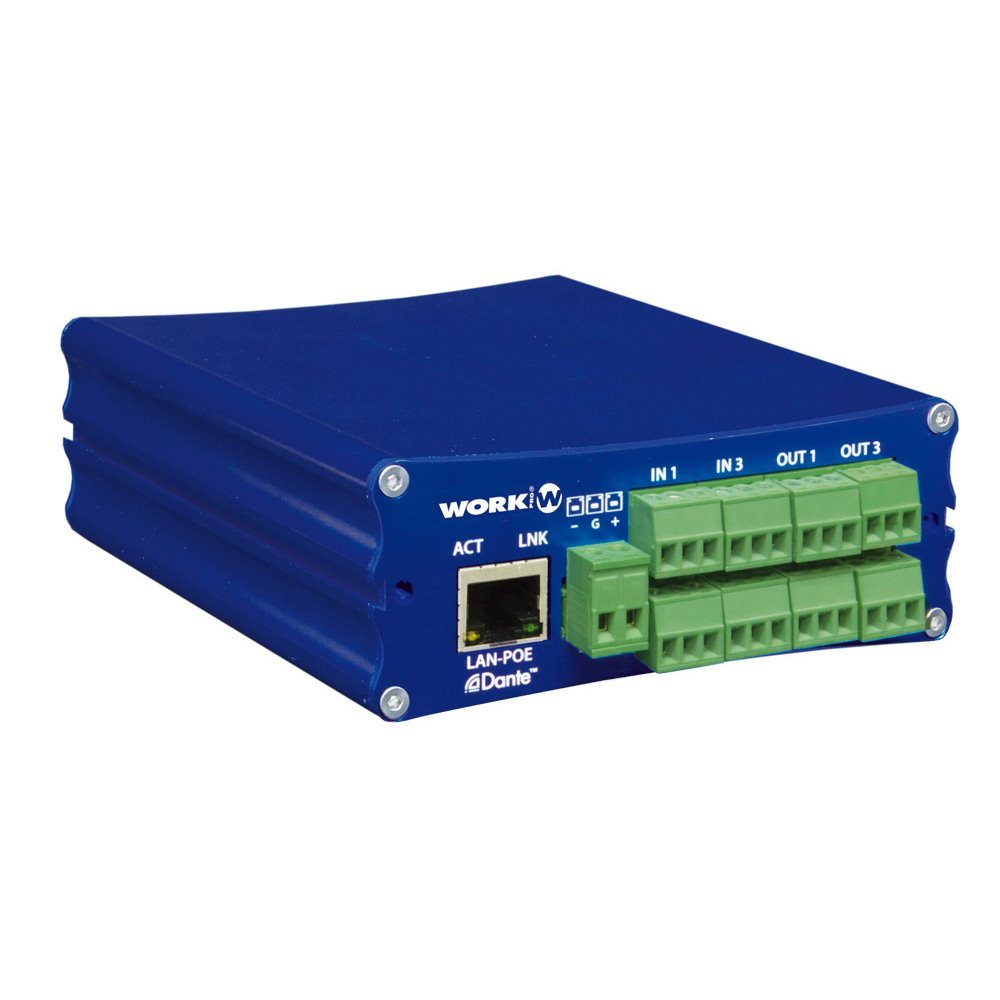

DD4 is a device designed for use in installation, for which the analog inputs and outputs are made through Euroblock 3.5mm connectors.

It has balanced inputs and outputs to provide greater immunity to noise that interferes with audio signal lines.


Analog specifications
Balanced inputs
Servo-balanced outputs
Input sensitivity: 22 dBu (balanced)
Maximum output level: 22 dBu (balanced)
SNR > 100 dB
THD+N < 0.01%
Crosstalk < -80 dB (20 kHz)
Frequency response: 20 Hz - 20 kHz


DANTE specifications
Sample rates allowed: 44.1 / 48 / 88.2 / 96 kHz
Codification (Bit depth): 16, 24 and 32 Bit
Latency: depends on configuration (1ms standard)
Ethernet connection / supply: 100BASE-TX & PoE


Main Supply
External power supply: 24 Vdc (Not included)
PoE Class: Class 0 802.3af
Power consumption: 2.4 W (DD2), 3.85 W (DD4)


General
Dimensions: 109 x 133.75 x 40.45 mm
Weight: 365 g


OPTION:
19"/1U Adapter for 4 pcs. DD4
