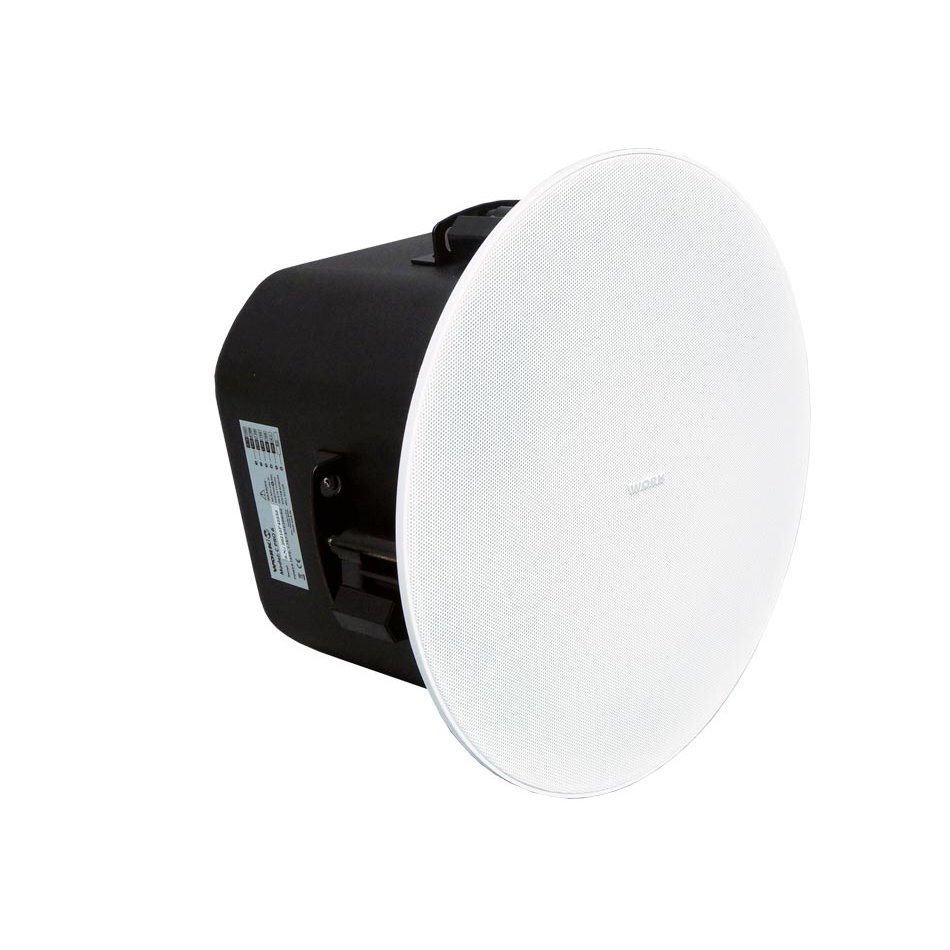

Ceiling speaker. 6.5'' + TWT 70/100V 8 ohm 30W

On one hand, it can be painted, so users can customize its colour for a perfect integration with the space. On the other hand, the grille can be easily attached and detached thanks to its fast mounting installation system through magnets. The grille cover almost the total surface of the loudspeaker, increasing its capacity to fit and making it a discrete and stylish solution.Once installed, it is possible to swivel the tweeter to control the directionality in order to enhance the audio experience. PURE PRO Series is composed of three models with different loudspeaker diameters and power outputs, which make them suitable for different requirements. Contractors can rely on a powerful solution, easy to install and integrate, for their low impedance and line voltage projects.



TECHNISCHE DATEN

Type: Two way ceiling speakers
Elements: 6.5 woofer + 1 TWT
Power taps (100 V line):30 W (333 Ohm) / 15 W (666 Ohm) / 7.5 W (1k3 Ohm) / 3.75 W (2k6 Ohm).
Power taps (70 V line):30 W (333 Ohm) / 15 W (666 Ohm) / 7.5 W (1k3 Ohm) / 3.75 W (2k6 Ohm) / 1.5 W (5k2 Ohm)
Power taps (low impedance):30 W at 8 Ohm.
Frequency response:60 Hz - 20 kHz.
Sensitivity (1W/1m):88 dB.
Dispersion Angle: 90º x 50º (HxV)
Max SPL: 102 dB.
RAL colour code: RAL 9016.
Material (housing): ABS plastic
Material (grille): Metal.
Mounting dimensions (Ø x D):240 x 30 mm (max ceiling thickness)
Dimensions (Ø x D):Ø 267 x 162 mm.
Weight:2.7 kg.
