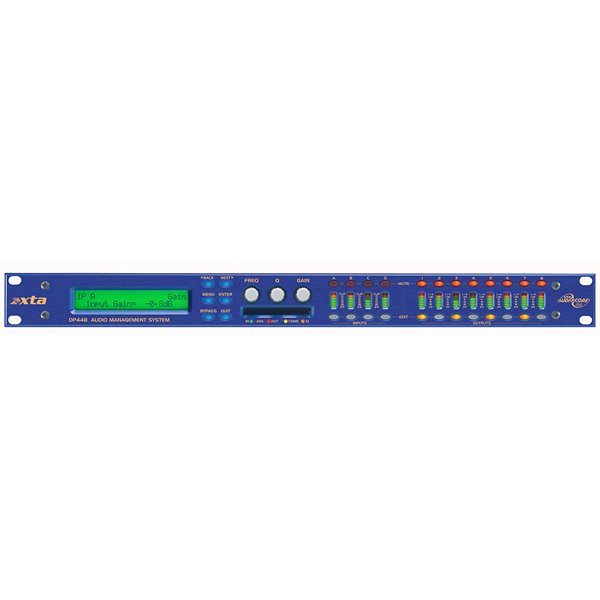

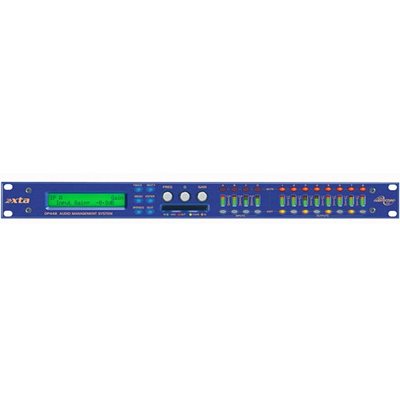

XTA Audio Management 4/8

4 Input / 8 Output, full DSP

XTA Processing, 1U/19"

Art. Nr:
DP448

UVPCHF4300.00
Beschreibung

AUDIO MANAGEMENT / LOUDSPEAKER PROCESSOR

Based on the already successful DP428 platform, the new 4 Series considerably increase sound company choice. The DP428 takes on the name DP448 to complete the family and share the common technology. The five models in the series are: DP448 - 4 In 8 Out, DP446 - 4 In 6 Out, DP444 - 4 In 4 Out, DP426 - 2 In 6 Out, and DP424 - 2 In 4 Out.
As the demands placed on professional audio systems continue to steadily increase, so must the technology be advanced to maintain the expected quality and useability. Based on a completely new processing platform, running at a native sample rate of 96kHz, the 4 Series set a new standard in terms of performance, flexibility, and ease of use.


MAIN SPECIFICATIONS:

• Inputs
Electronically balanced (transformers optional)
AES/EBU (selectable) fitted as standard to all 4 Seriesunits
Impedance >10k ohms
CMRR >65dB 50Hz - 10kHz
• Outputs
All electronically balanced (transformers optional)
Source Imp < 60ohms
Minimum Load 600ohm
Maximum Level +20dBm into 600 ohm load
Sampling Rate DP428 - Up to 96kHz internal, up to 192kHz can be accepted and converted.
Frequency Response ±0.5dB 10Hz - 32kHz
Dynamic Range >116dB 20Hz -20kHz. Unwtd
Distortion < 0.001% @ 1kHz, +10dBm
Maximum Delay 650 mS. (increment 0.325 µs steps)
Output gain Adjustable +15dB to -40dB in 0.1 dB steps and mute
• Equalisation
Filters Parametrics - 8 Per input / 9 per output
Additional filters 28-band graphic on each input
Each parametric can be switched to Bandpass, Allpass, Notch, VariQ, Shelf and Elliptical response
Phase filtering - 2 degree steps on each input and output
• Crossover Filters
Bessel / Butterworth 6/12/18/24/48dB per octave
and Linkwitz-Riley 12/24/48dB per octave
• Limiter
Threshold +22dBu to -10dBu
Attack time 0.3 to 90 milliseconds
Release time 4, 8, 16 or 32 times the attack time
• Clip/D-max Limiter
Look-ahead attack time, Fast, Medium or Slow release times
• Connectors
Inputs 3 pin female XLR
Outputs 3 pin male XLR
RS485 In/Out XLRs
RS232 9 Pin (Female) D Connector
• Power
3 pin IEC
Power 60VAC - 240VAC
Consumption < 40 watts
