INTEGRATED AUDIO MANAGEMENT / LOUDSPEAKER PROCESSOR

Installation audio processing becomes a whole lot easier with the introduction of the DC1048. Working in conjunction with both iCore and AudioCore, it’s easy to program the unit the way you want, and then unplug the computer, safe in the knowledge that settings can’t be changed, and even if they are, setting up timed presets ensures they’ll be back as they should be by the next morning! Units may be networked via RS485 and are compatible with the wireless Walkabout system.
The digital processor shall provide 4 inputs,and 8 outputs. It shall provide four into eight channels of matrix mixing, with each input channel including 8 bands of parametric EQ, all with adjustable response types. Each output channel shall provide high and low pass filters, 9 bands of parametric EQ (with adjustable response types), a program limiter ad a clip limiter.
There shall be up to 650mS of delay available on each output, in 300nS increments. Any output mya be fed from a mix of any of the four inputs with variable matrix mxing for the relative elevsl fo the four inputs.
Headroom metering shall be available for inputs and outputs.. Parameter information shall be shown on an LCD display. Only basic set-up of interface options and preset recalls shall be available from the front panel, and this may be locked out either completely or allowing preset recalls only. A additional security lockout facility shall be provided to limit remote access, augmented by full remote control from a PC via USB, or RS485.
The unit shall offer front panel recall of up to 20 memories, up to 16 of which are also available via closed contact GPI recall interface. A real time clock and calendar will also allow for automatic recalls on either a one-shot or repeated weekly basis.
The audio processing shall meet or exceed the following specifications:- Frequency Response +-0.5dB 20Hz - 20kHz (-3db @ 32kHz). Dynamic Range > 112dB 20Hz - 20kHz unw.
Inputs and outputs shall be via “Phoenix” connectors and be electronically balanced. GPI connections shall be via “Phoenix” mini-connector strip. The digital audio processor shall be a 1U, 19" rack mount device capable of operating from a 60V AC - 240V AC 50/60Hz supply. The digital audio processor shall be the XTA Electronics model DC1048.



MAIN SPECIFICATIONS:

• Inputs
4 electronically balanced
Impedance: > 10k ohms.
CMRR : >65dB 50Hz - 10kHz.
• Outputs
8 electronically balanced
Source Imp: < 60ohms
Min. Load: 600ohm
Max. Level: +20dBm into 600 Ohm Frequency Resp.:+½dB 20Hz-20kHz-3dB @ 32kHz
Dyn. Range:>112dB 20Hz-20k unwtd
Distortion:< .02%@1kHz,+18dBm
Maximum Delay: 650 mS
Min Step Size: 0.3 µS
Input Gain: +6dB to -40dB in 0.1dB steps
Output Gain: +15dB to -40dB in 0.1dB steps and mute
• Parametric Equalisation
8 per Input / 9 Sections per Output
Filter Gain: +15dB to -30dB in 0.1dB steps. Freq. Range: 19.7Hz - 32kHz, 1/36 octave steps.
Filter Q / BW: 0.4 to 128 / 2.5 to 0.008(Sections switched to shelving response)
Low frequency: 19.2Hz - 1kHz
High frequency: 1kHz - 32kHz
Shelf gains: ±15dB in 0.1dB steps.
• High and Lowpass Filters
1 of each per output
Freq. Range HPF: 10Hz - 16kHz1/36 octave steps.
Freq. Range LPF: 35Hz - 22kHz1/36 octave steps.
Responses: 1st Order 6dB/Oct.
Bessel/Butterworth/Linkwitz-Riley 12-24dB/Oct.
Bessel/Butterworth 18dB/Oct.
• Limiters
Program Limiter
Threshold: +22dBu to -10dBu
Attack time: 0.3 to 90 milliseconds
Release time: 2/4/8/16/32 x Attack time
“D-Max” Limiter
Attack Time: -60uS
Release Time: Slow/Medium/Fast

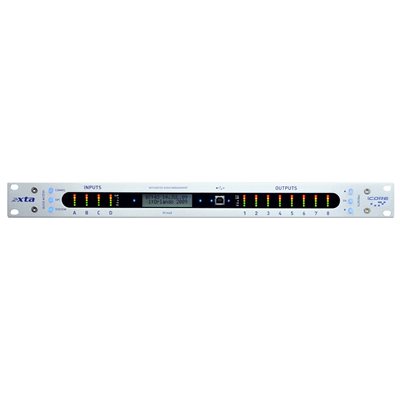

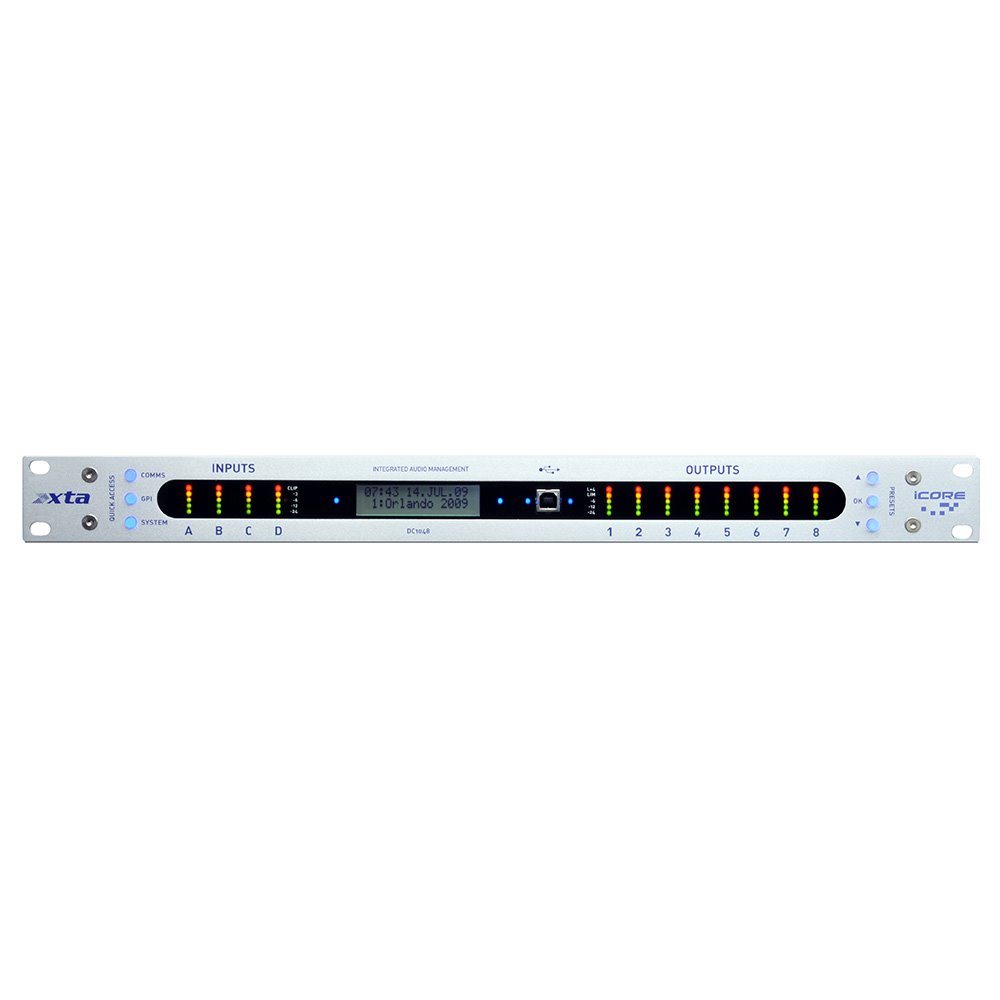

• Display
2 x 16 Character LCD Input meter: 2 x 5 point, -24dB to digital clip.Output meter: 8 x 6 point, -24dB to +4dB into limit.

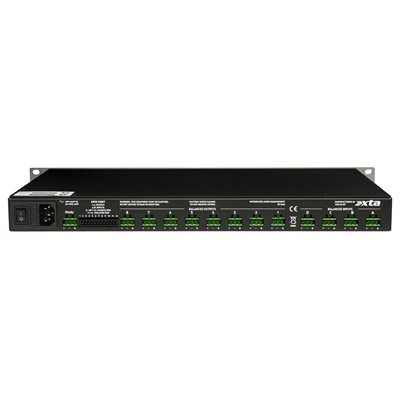

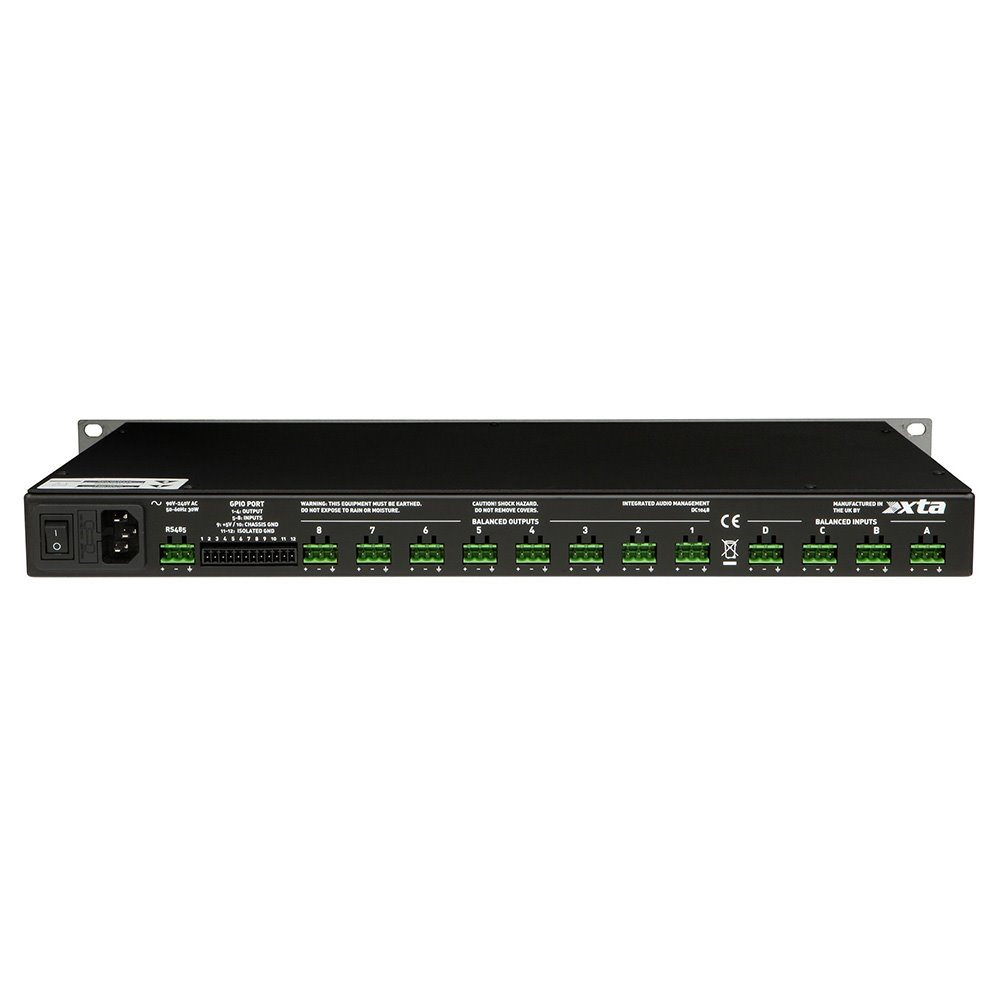

• Connectors
Inputs: 3 pin Phoenix
Outputs: 3 pin Phoenix.
Comms - USB (Front Panel)
RS485:3 pin Phoenix
Power: 3 pin IEC
Power: 60 to 250V ±15% @ 50/60Hz.
Consumption: < 30 watts.
Weight: 3.3kg. Net (4.7kg. Shipping)
Size: 1.75"(1U) x 19" x 11.8" (44 x 482 x 300mm) excluding connectors
Latency: 1.5mS (analogue in - analogue out @ 96kHz
